Black Plastic-Coated Hinges Monin 110x80 Ø15.5 Right / pc
€6.38
In stock
Usage
The Charnière invisible Argenta NEO S5 chromé mat is designed for flush, frameless doors in minimalist interiors. Suitable for Invisidoor door trim systems without frames, it ensures concealed, seamless door operation in residential or commercial spaces.
Advantages
- Fully concealed installation for a clean, uninterrupted door appearance
- 180° opening angle allows maximum accessibility and versatility
- 3D adjustability (height, width, depth) enables precise alignment after installation
- Easy-Hook mechanism supports quick solo mounting and removal of the door leaf
- Fire resistance certified to E30 / EI230 standards when used with appropriate materials; consider compatibility requirements before installation
Specifications
- Zamak construction with a matt chrome finish enhances durability and scratch resistance[4][5]
- Carries CE marking; complies with EN1634-1:2008 fire safety and EN13501-2:2007 classification[5][9]
- Bears up to 80 kg per three hinges on doors measuring up to 1030 mm wide and at least 33 mm thick[4][5]
- No visible screws even when open, compatible with both left- and right-handed doors. Allows front panel (cladding) up to a thickness of 5 mm.

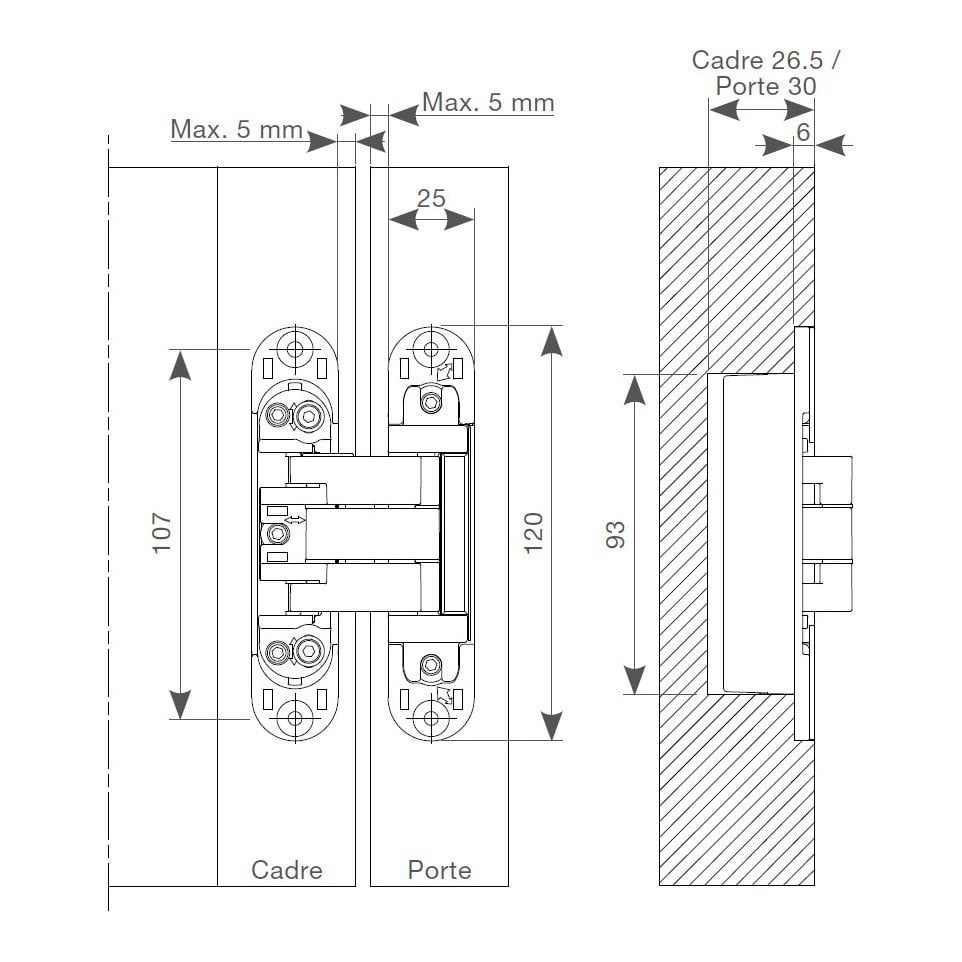

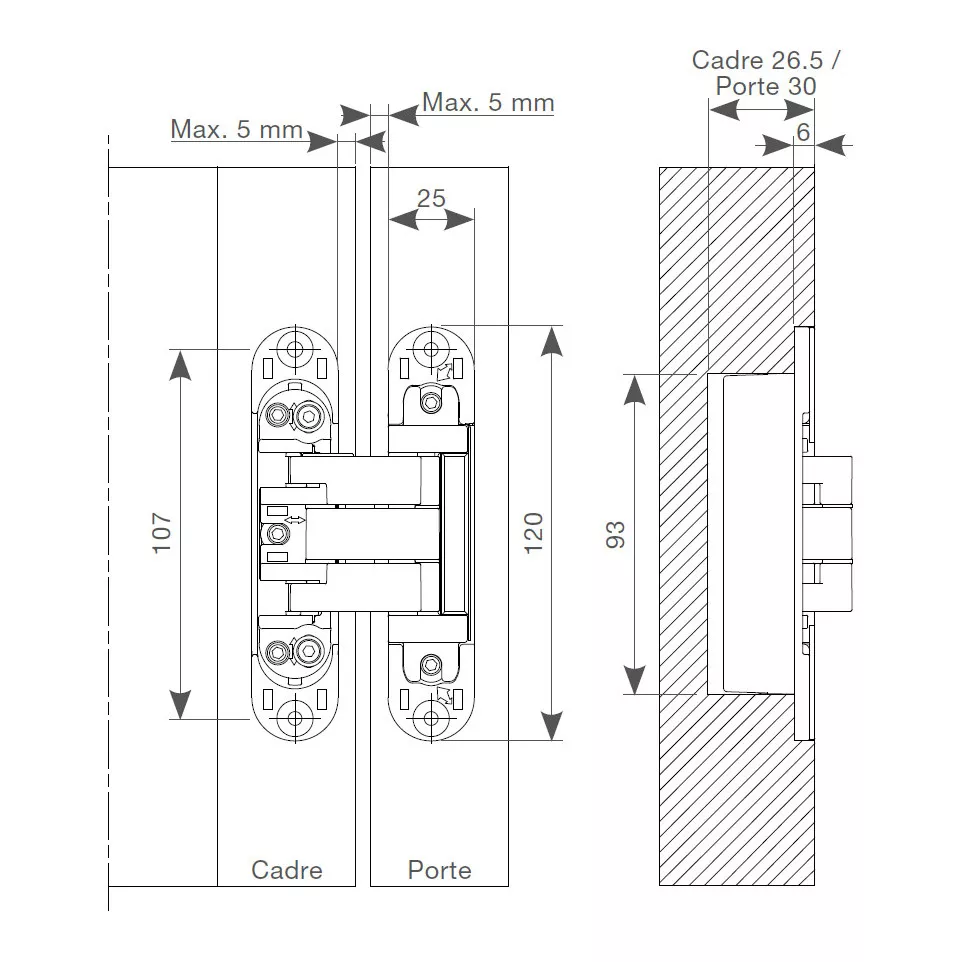

How it works
The hinge installs inside the door edge and frame using routed pockets. Its hidden design maintains architectural lines while offering full opening functionality. Adjustable in three dimensions after fitting for perfect alignment without having to remove the door leaf.
