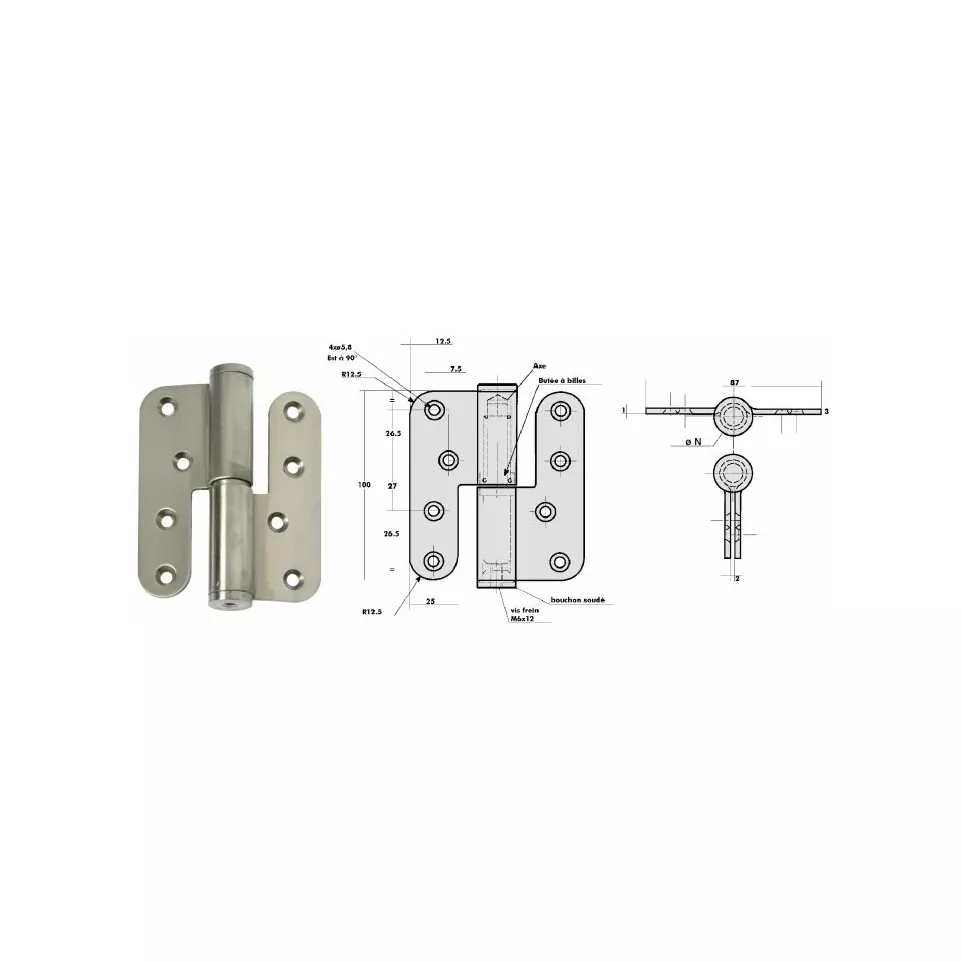

High-performance adjustable hinge in brushed 18/10 stainless steel (AISI 304), designed for left-handed installation. Ideal for fire doors, armored doors, and heavy doors with glass panels.
Specifications
- Manufactured from 18/10 stainless steel for enhanced corrosion resistance and durability
- Includes precision-machined end caps and pin, also in 18/10 stainless steel
- Features rounded blades with four countersunk screw holes
- Height-adjustable, shouldered pin with M6 x 12 mm lock screw for precise alignment
- Equipped with an integrated ball bearing stop, concealed within the door-supporting blade, to reduce friction
- Load capacity: up to 100 kg with three hinges installed
- Maximum door dimensions: 1000 mm width x 2100 mm height
- Tested to withstand 200,000 opening and closing cycles
- Certified by the University of Ghent; meets BENOR 1639 and 2048 standards
- Suitable for DF 60 / Rf 1 h timber fire doors
Usage
Mount the hinge to the door and frame using four countersunk screws per blade. Adjust the height via the shouldered pin and M6 x 12 mm screw. This mechanism ensures a constant, stable contact between the door and frame, promoting even weight distribution and reliable long-term operation, especially for fire-rated and heavy-duty applications.
FAQ
-
What materials are used in this hinge?
The hinge, pin, and end caps are all made from brushed 18/10 stainless steel (AISI 304).
-
What is the maximum door weight the hinge can support?
Up to 100 kg when using three hinges per door.
-
Is this hinge suitable for fire doors?
Yes, it is certified for use with timber fire doors (DF 60 / Rf 1 h) and meets technical standards for fire-resistant applications.
-
Can the hinge height be adjusted after installation?
Yes, the height can be precisely adjusted using the integrated shouldered pin and M6 x 12 mm lock screw.
-
How durable is the hinge under frequent use?
It is tested for 200,000 open/close cycles to ensure consistent, long-term performance.
