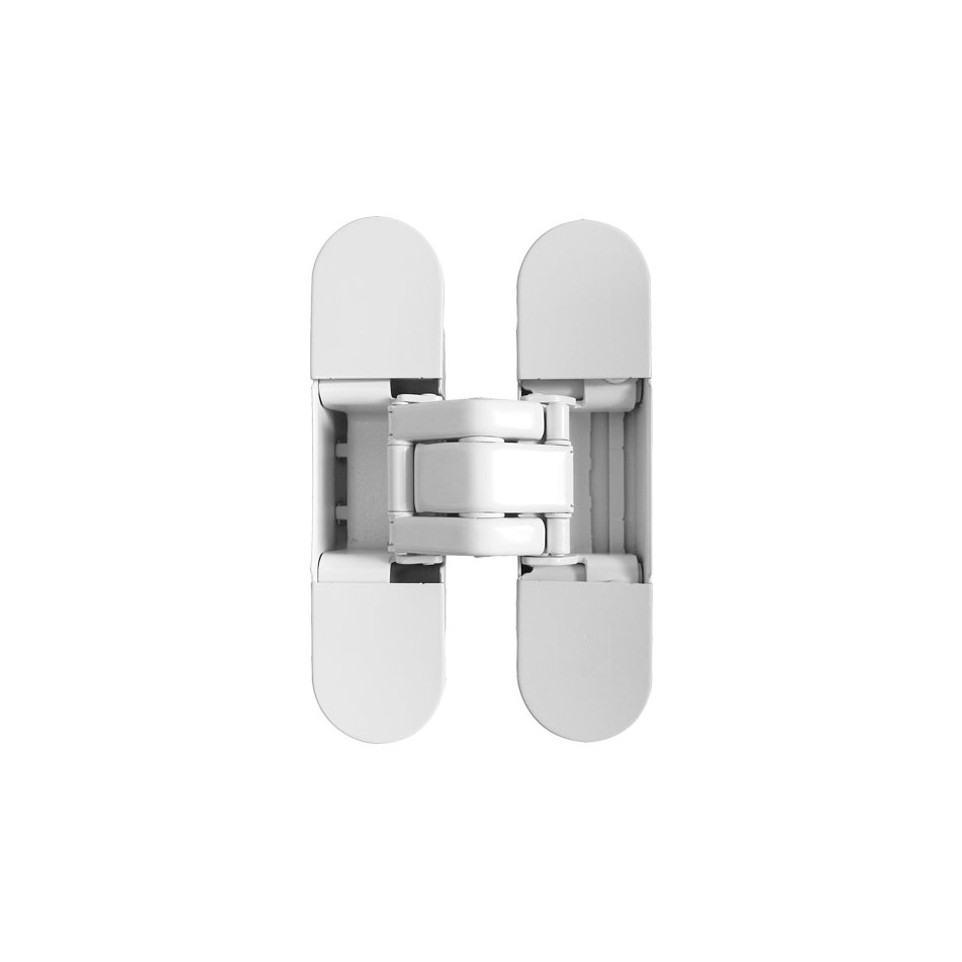

The Atomika K8000 NO Concealed Hinge offers an invisible installation for flush residential doors, supporting door weights up to 60kg (using 2 hinges), with fire resistance for 30 minutes and a white lacquered finish.
Install the Atomika K8000 NO hinge inside the door and frame for a completely hidden appearance, adjusting in three dimensions for precise alignment. For use on steel frames, the K800 TASCA mounting box is required as an accessory.
What is the maximum door weight this hinge supports?
With two hinges installed, it supports up to 60kg for a door sized 900 x 2100 mm and 38–45 mm thick.
Is the hinge suitable for fire-rated doors?
Yes, it is certified for 30 minutes of fire resistance.
Can I install this hinge on a metal frame?
Yes, but the optional K800 TASCA mounting box must be used for metallic frames.
What adjustments are possible after installation?
The hinge offers 3D adjustability (horizontal, vertical, and depth) for precise alignment without uninstalling the door.
What maintenance does the Atomika K8000 require?
It features wear-resistant bushings and does not require regular lubrication or maintenance.
