Product

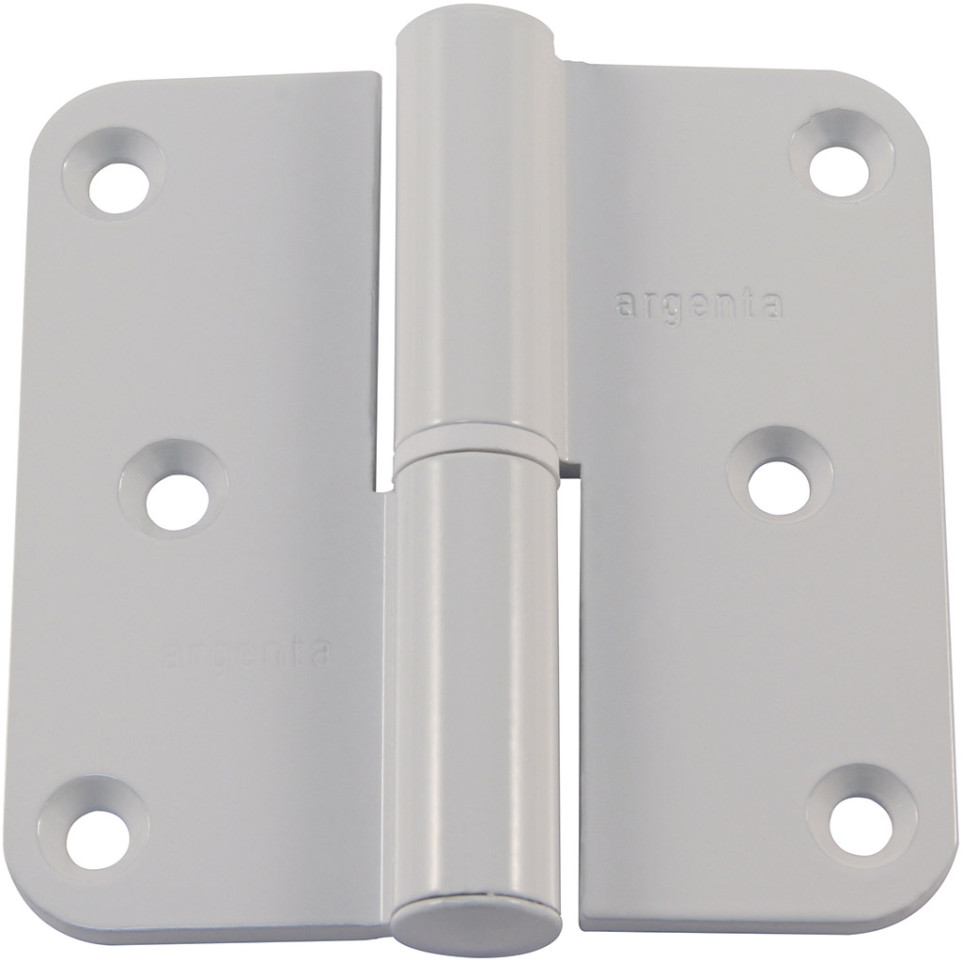

Aluminum hinge with a closed-leaf design and rounded corners, size 80x80 mm, in white RAL 9010. Suited for right-hand installation, this Argenta hinge is intended for doors requiring reliability and aesthetic integration.
Specifications

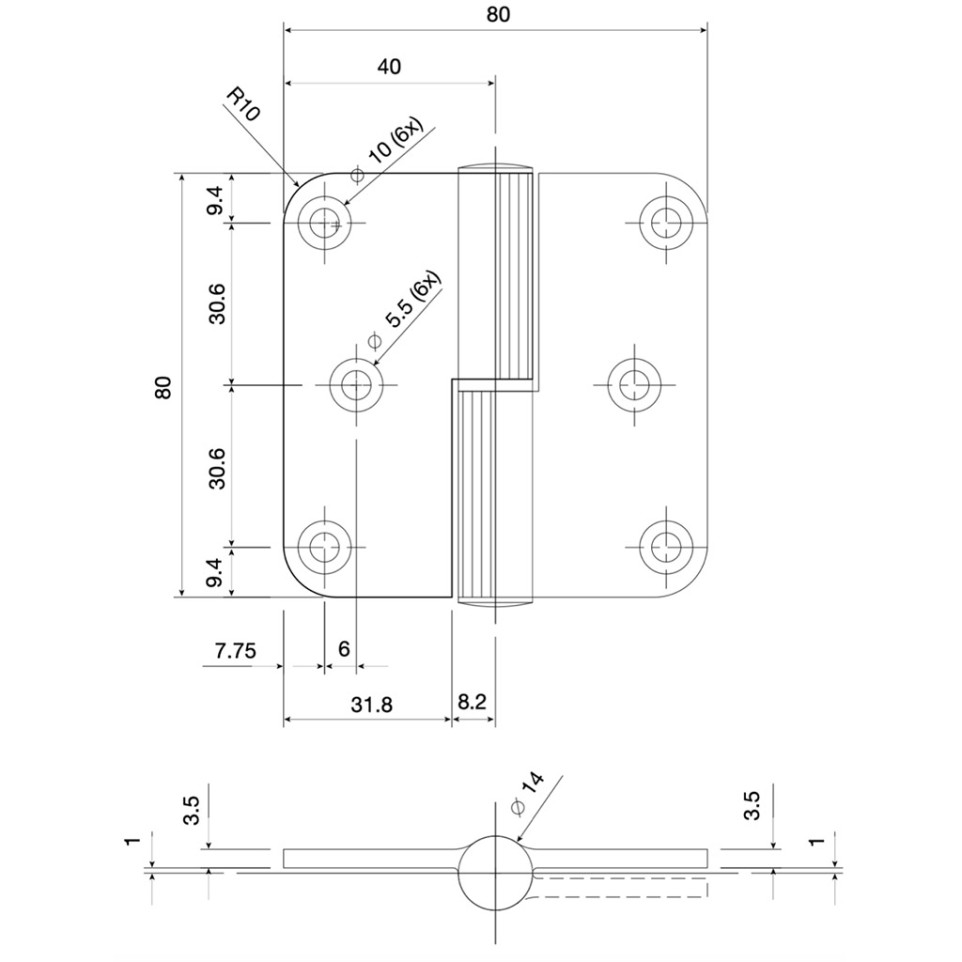

- Closed-leaf design, rounded corners, and standardized mortising for flexible decor choices
- Manufactured from aluminum; steel pin with coordinated nylon anti-friction sleeve; leaf thickness 3.5 mm; pin diameter 8 mm
- Load capacity up to 10 kg per hinge; BENOR RF30 certified fire resistance for use with Theuma, Decoene, and similar doors
- Includes options for modern or classic decorative finishes such as anodized, lacquered, or special shapes
- Complete mounting template and compatible screws available separately
Usage
Install the hinge in a standard mortise on the door and frame using suitable screws. The nylon sleeve ensures smooth, quiet operation and color consistency. Designed for interior door applications where reliable opening, closing, and certified fire resistance are required.
FAQ
-
What is the maximum load per hinge?
Each hinge supports up to 10 kg.
-
Is this hinge fire-rated?
Yes, it holds an RF30 BENOR fire resistance certification.
-
Can I use this hinge for left-handed doors?
This version is designed for right-hand doors. A left-hand version is available separately.
-
What finishes and styles are compatible with this hinge?
The standardized mortising allows the use of various decorative finishes including anodized, lacquered, vase, or pyramid options.
-
Are mounting screws included?
Suitable screws are available but are not always included; check package contents or order separately.
