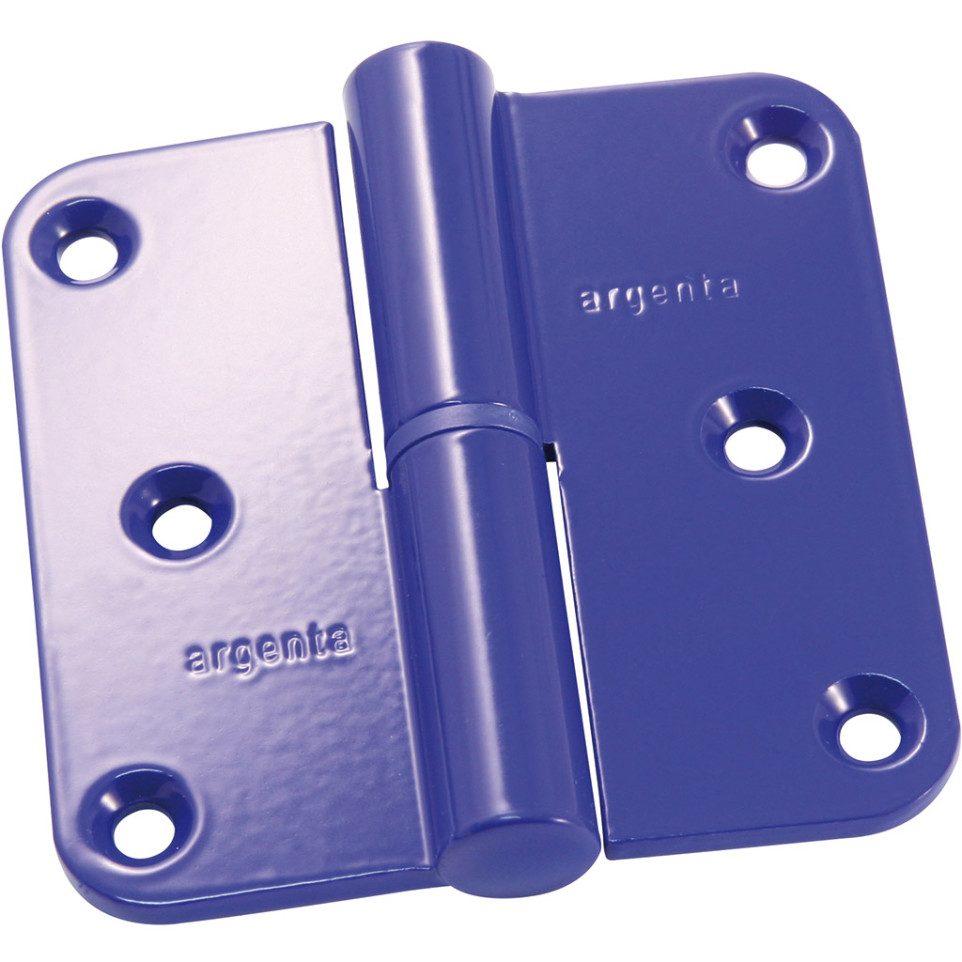

Aluminum hinge Argenta 80x80 A, left-handed, finished in blue RAL 5002. Designed for interior or fire-rated doors in residential and commercial settings, it offers a combination of strength, fire resistance, and compatibility with a range of decorative finishes.
Mounts easily to doors using a standardized mortise, suitable for single or multiple hinge installations on fire-rated or regular doors. The supplied template and matching screws facilitate precise and secure installation, while the coordinated nylon sleeve improves longevity and silent movement.
Can this hinge be used on fire-rated doors?
Yes, it holds a RF 30 BENOR fire resistance certificate for select brands.
Is the hinge suitable for both left and right opening doors?
This model is specifically left-handed; ensure correct selection for your door.
What door weight can one hinge support?
Each hinge has a load capacity of 10 kg.
Are matching screws and fitting templates included?
Compatible screws and a full fitting template are available for separate purchase.
What finishes and styles are compatible with this hinge?
The standardized mortise allows for installation with a wide range of decorative finishes, from anodized to lacquered styles, both classic and modern.
mvm-dt-2025-07-07
| Brand | Argenta |
|---|---|
| Finishing | laqué |
| Colour | bleu RAL 5002 |
| Material used | aluminium |
| Ø vis (mm) | 4,50 |
| Opening direction | poussé gauche (DIN R) |
| Height (mm) | 80,00 |
| Width (in mm) | 80,00 |
| Ø noeud (mm) | 14 |
| Blade corners | arrondi |
