Argenta Invisible Neo S5 Concealed Hinge White RAL9016 Matte / pc

Argenta Invisible Neo S5 Concealed...

Estimated delivery date :  Friday 24 July
€74.53 HT
In stock

Ref : FGT-1211052

Quantity

Add to your shopping List

You must be logged


Description

Product

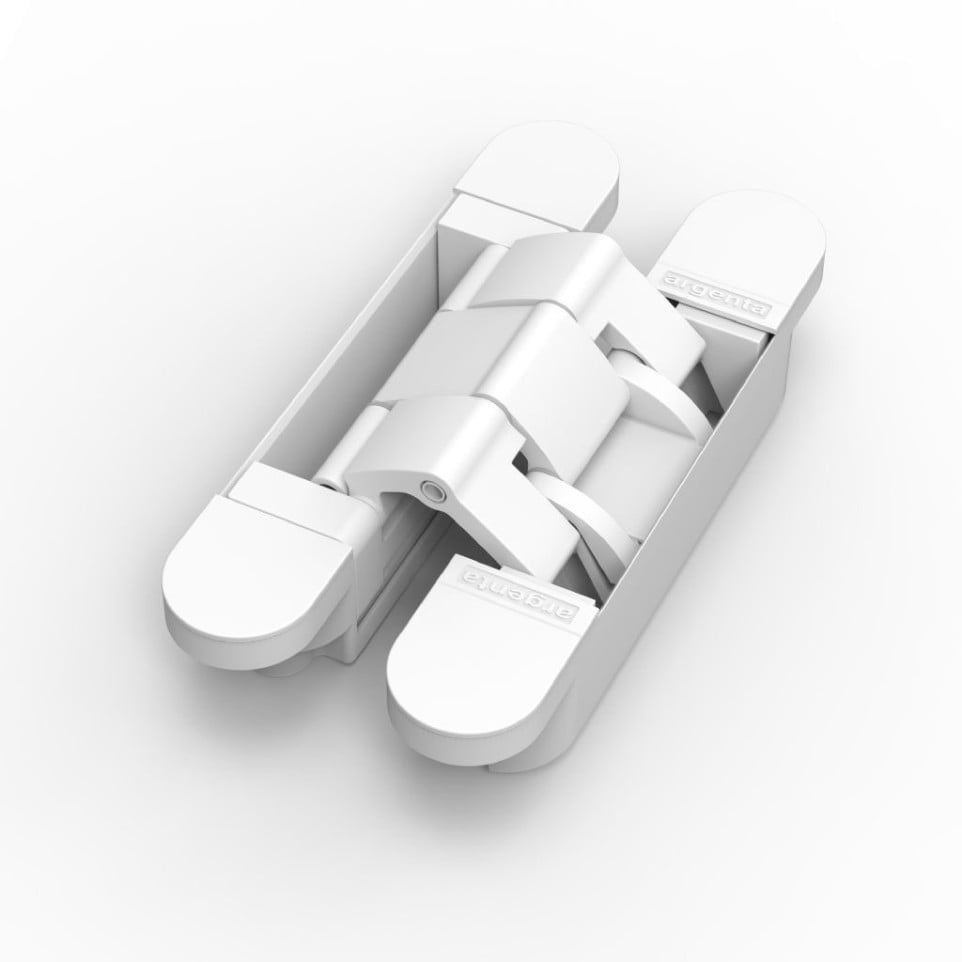

The Charnière invisible Argenta NEO S5 blanc RAL9016 mat is a concealed hinge for left or right interior doors, offering full 3D adjustability, a 180° opening angle, and minimalist design with no visible screws, suitable for modern residential or commercial spaces.

Specifications

  • Engineered in zamak with all moving parts supported by POM bushings; white RAL9016 matte finish for a discrete, seamless look
  • Certified for a minimum of 200,000 open-close cycles; fire resistance compliant with EN1634-1:2008 and EN13501-2:2007 (E30, EI230, EI130, EW30 classes); CE marking 2 7 3 1 1 4 0 10
  • Universal for right or left doors; 3D adjustment (height: -2.5/+2.5 mm, width: -3/+4 mm, depth: -1/+1 mm) without lifting the door; no visible screws; minimal gap for finger protection; available in three sizes (S-5: 120 x 25 mm); door thickness from 33 mm; max cladding 5 mm; 26.5 mm (frame) / 30 mm (door) recess; available in multiple colors; optional 30 or 60 minute fire-rated versions

Usage

Install on interior doors (thickness ≥33 mm) to achieve a flush, “invisible” finish with reliable, high-frequency use. One person can mount and adjust the hinge in three dimensions using the Easy-Hook system, without needing to remove the door or use shims, ensuring precision and efficiency for fitting or post-installation tuning.

FAQ

  1. Can the Argenta NEO S5 be used on both left- and right-opening doors?
    Yes, its universal design supports both left and right door orientations.

  2. Is the hinge adjustable after installation?
    Yes, it allows 3D adjustment (height, width, and depth) without removing the door.

  3. What is the minimum required door thickness for installation?
    A minimum door thickness of 33 mm is required (35 mm with maximum cladding).

  4. Does the hinge provide fire resistance?
    Yes, fire-rated options for 30 or 60 minutes are available, compliant with relevant European standards.

  5. Are any screws visible after installation?
    No, the design ensures that no screws are visible when the door is open or closed.
