Product

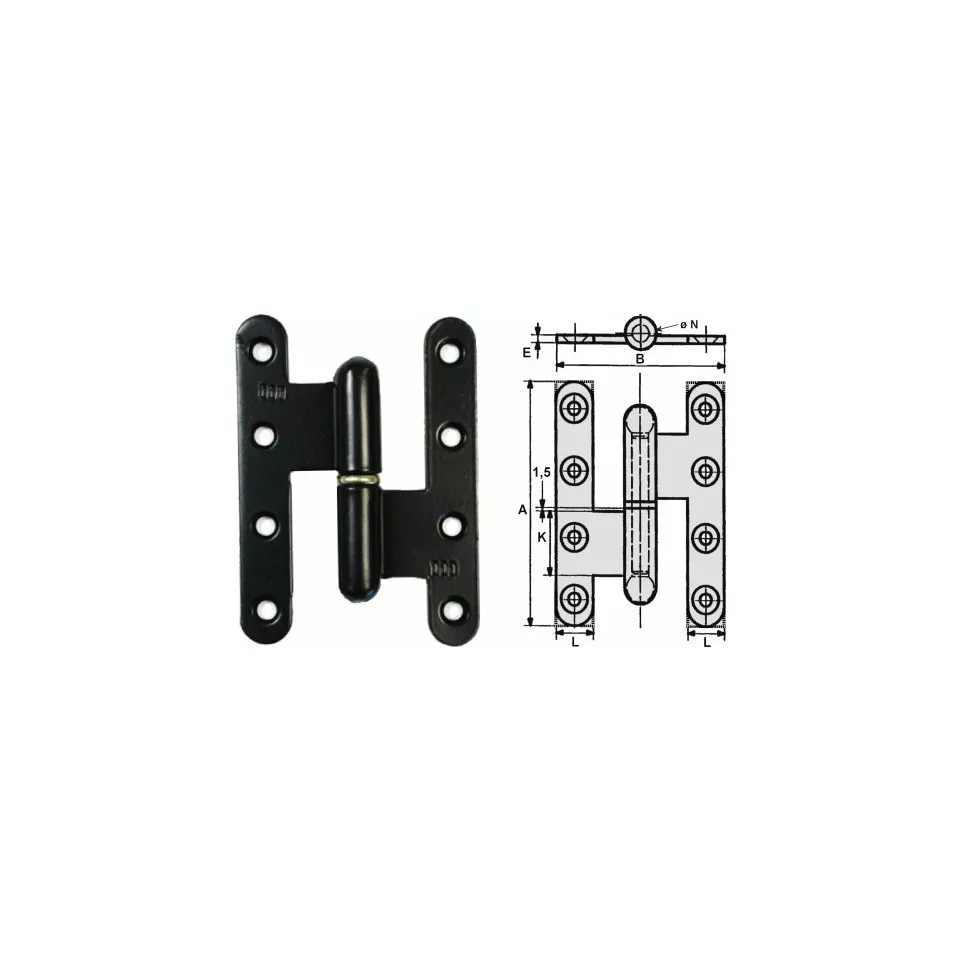

The Monin Paumelle plastifiée noire 110x80 Ø15.5, right version, is a robust black-plated hinge designed for installation on heavy-duty or fire-rated doors in residential and commercial environments. It supports reliable door movement and durability.
Specifications
- Constructed from zinc-plated steel with a black plastified finish for added protection and modern appearance
- Designed for use on solid and fire doors
- Dimensions: 110 x 80 mm; Knuckle diameter: Ø15.5 mm
- Screw diameter: 5 mm; Rounded blade corners for safety and aesthetics
- Recommended: 3 hinges per door up to 93 cm wide, minimum 4 hinges for wider doors
- Meets safety and performance standards typical of professional door hardware
Usage
This hinge is mounted between the door and its frame, providing smooth rotation and stability for massive or fire-rated doors. Select the appropriate number of hinges according to the door’s width and weight, align precisely, then secure using compatible screws for lasting functionality.
FAQ
-
What door types is this hinge suitable for?
It is designed for use on heavy, solid, and fire-rated doors in both residential and commercial settings.
-
How many hinges are required per door?
Use 3 hinges for doors up to 93 cm in width; for doors wider than that, use at least 4 hinges.
-
What are the exact dimensions?
The hinge measures 110 mm in height and 80 mm in width, with a knuckle diameter of 15.5 mm.
-
Can it be used on left- or right-opening doors?
This version is for right-opening doors; a left-opening version is also available.
-
What materials are used in its construction?
The hinge is made from zinc-plated steel with a black plastified coating, ensuring strength and corrosion resistance.
