Usage

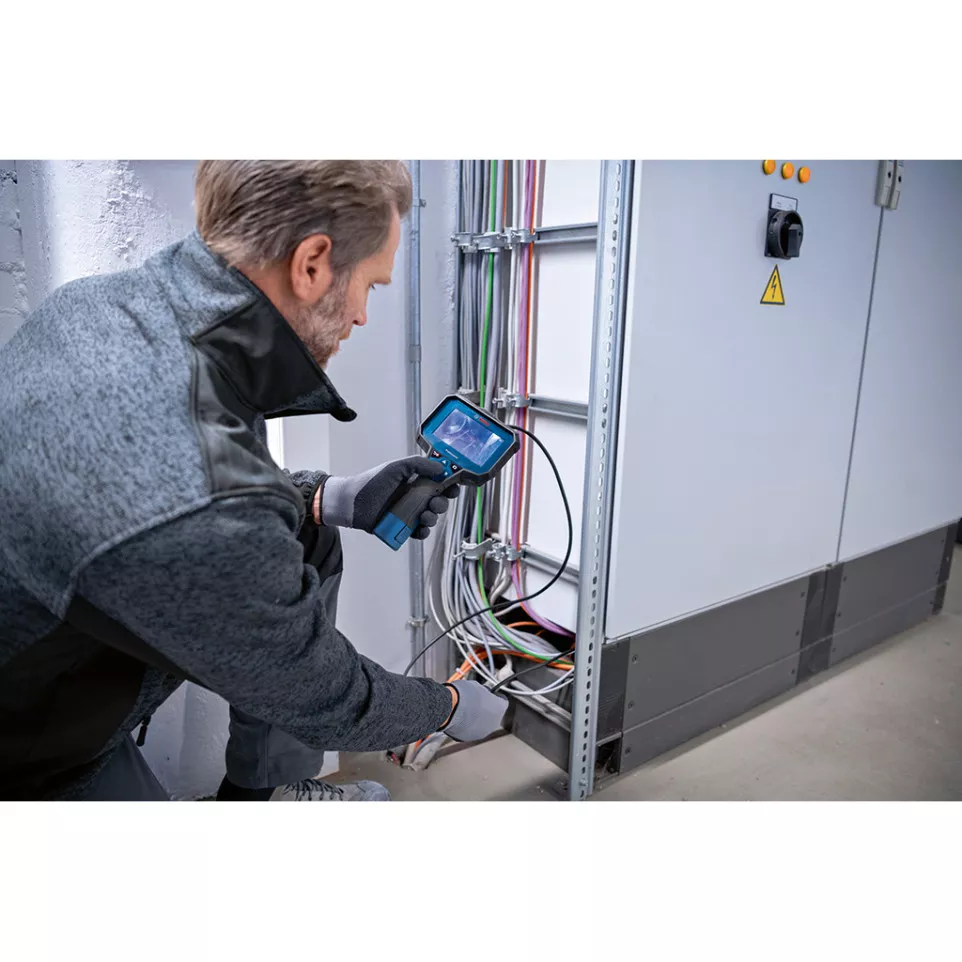

The Bosch GIC 12V-4-23 Professional is designed for inspecting pipes, ducts, wall cavities, distribution boxes, and other hard-to-reach areas. It is ideal for trades such as plumbing, electrical work, HVAC maintenance, and automotive inspection.
Advantages
- High-resolution 4.3-inch display (800 x 480 pixels) ensures clear image analysis even in tight or complex spaces.
- Ergonomic handle minimizes hand fatigue during extended inspections.
- Camera head with an 8.3 mm diameter and a flexible cable length of 1.5 m allows access to narrow passages.
- Robust design with IP67 protection for the camera head and IP54 rating for the main tool enhances durability on harsh jobsites.
- Convenient Up Indication feature aids orientation by always showing which direction is up; minor drawback: does not support video recording.
Specifications

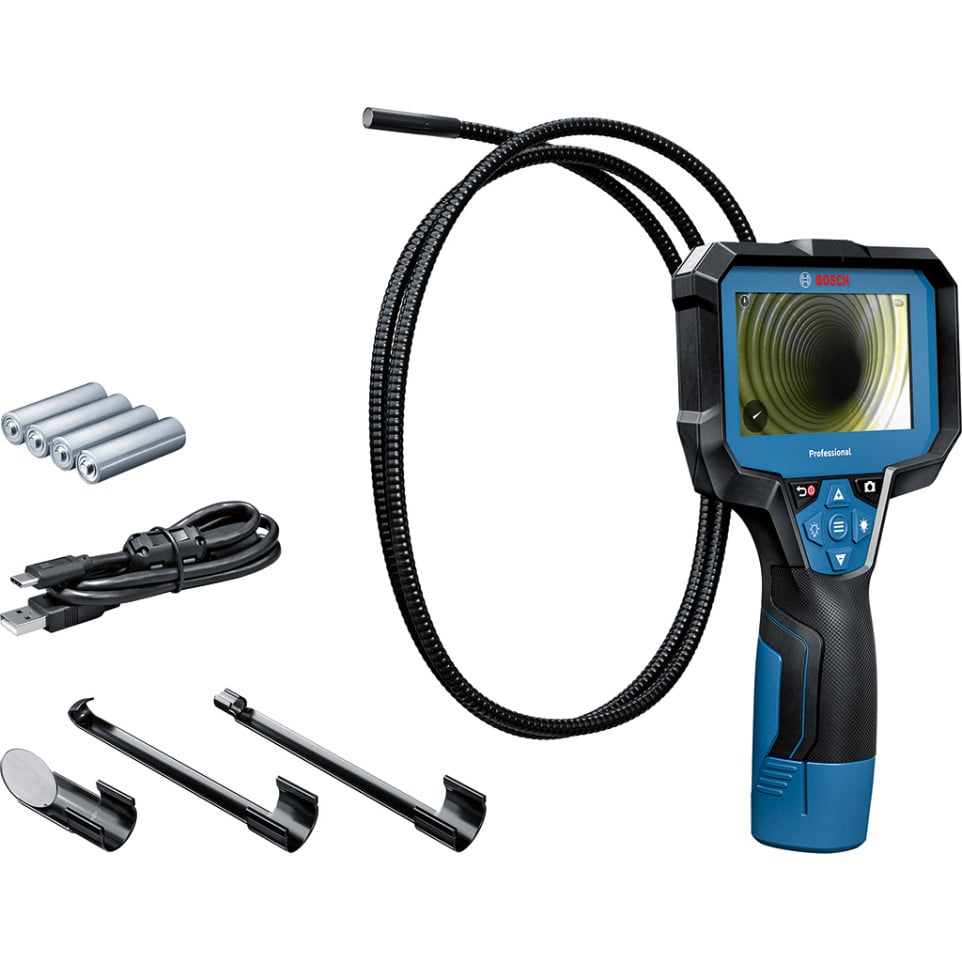

- The device features a robust rubber housing with an ergonomic grip; integrates Bosch's Professional 12V battery system for reliable performance.

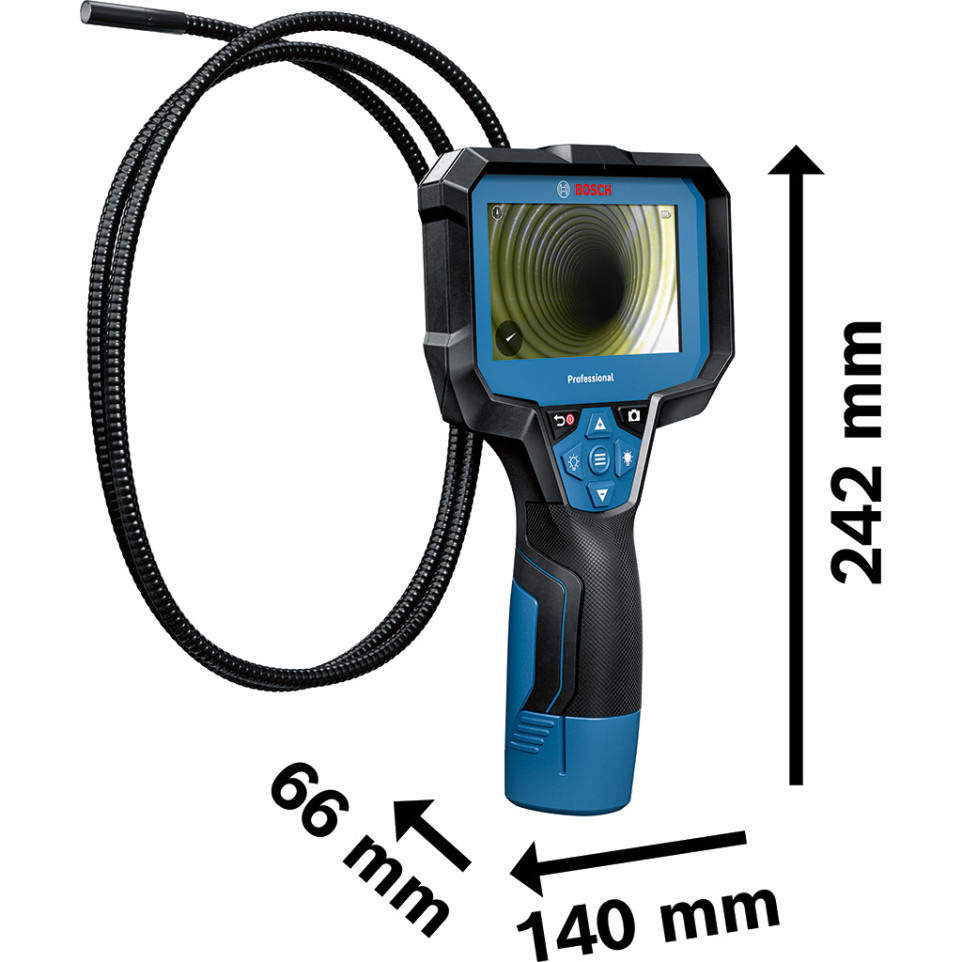

Camera head diameter: 8.3 mm
Cable length: 1.5 m (150 cm).
- An IP67-rated camera cable safeguards against dust ingress and temporary immersion in water; the main tool offers IP54 dust/splash protection.
Built to withstand site conditions in industrial environments.
- The monitor offers a resolution of 800 x 480 px on a 4.3" color display.
Photo capture at up to 1280 x 720 resolution.
Field of view: approx. 75°.
Optimal focal distance: 30–80 mm.
- Differentiators include Up Indication orientation aid, easier data transfer via USB-C®, snapshot documentation capability, and intuitive keypad navigation.
How it works

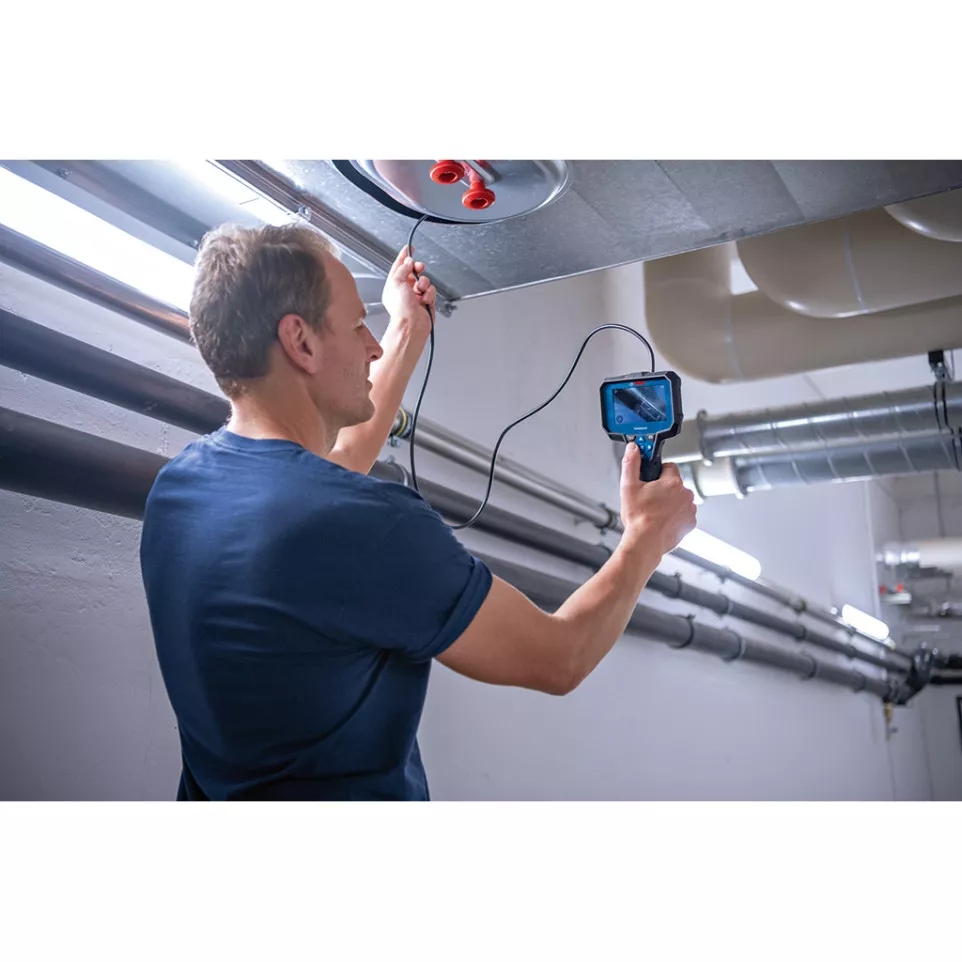

The operator inserts the flexible camera cable into areas requiring inspection while viewing real-time images on the included display. Photos can be captured as needed and transferred via USB-C® for documentation or further analysis.
