Drilling Jig for Hautau Primat FL190 per piece
€75.71
In stock
Usage

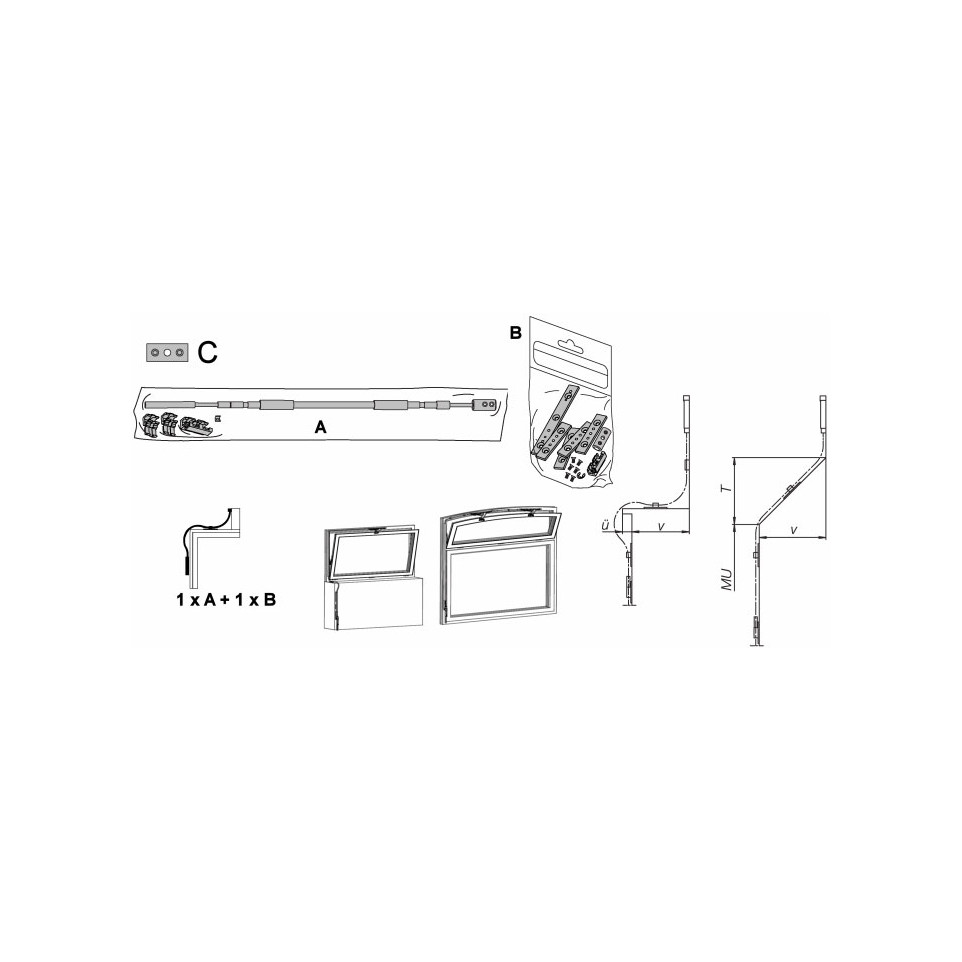

The Flexible longueur 1000mm for Primat-FL190 white is designed to transmit opening commands from the handle to lift-open and lift-open-drop window fittings. It is suitable for both curved and straight window frames, even when the sash and control are offset.[1][2]
Advantages
- Compatible with both arched and standard frames, ensuring installation versatility[1][2]
- Simplifies remote actuation where handle access is limited or frames are not coplanar[1][2]
- Available in multiple colors with a durable plastic sheath for a clean finish[1][2]
- Supports smooth operation thanks to its flexible design
- Allows guided or unguided mounting depending on installation requirements (with or without guide above/below 200 mm recess)[1][2]
Specifications
- The flexible drive features a robust cable core encased in a white plastic cover for longevity and aesthetic integration[1][3]
- Suits use in systems complying with PRIMAT-FL190 specifications; high anti-corrosion protection on all metallic components of the system[3]
- Total length: 1000 mm; maximum projection beyond tablet: up to 40 mm; lever stroke adapted to system geometry[1][3]
- The flexible can be installed with or without guide rails depending on frame recess depth, accommodating various assembly situations[1][3]
How it works
The product transmits movement from an operator (handle) through its flexible shaft, enabling windows fitted with Primat-FL190 mechanisms to open or close, including when parts of the assembly are offset. Installation adapts easily based on frame layout requirements.[1][3]
