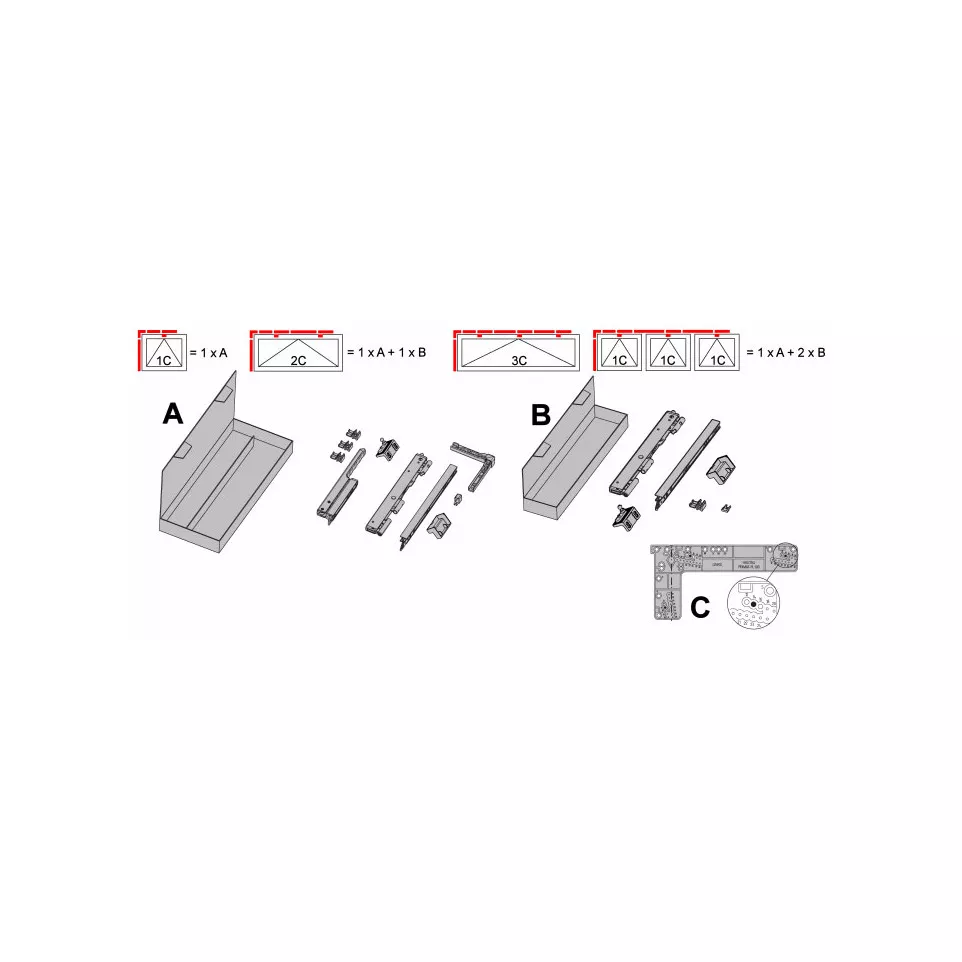

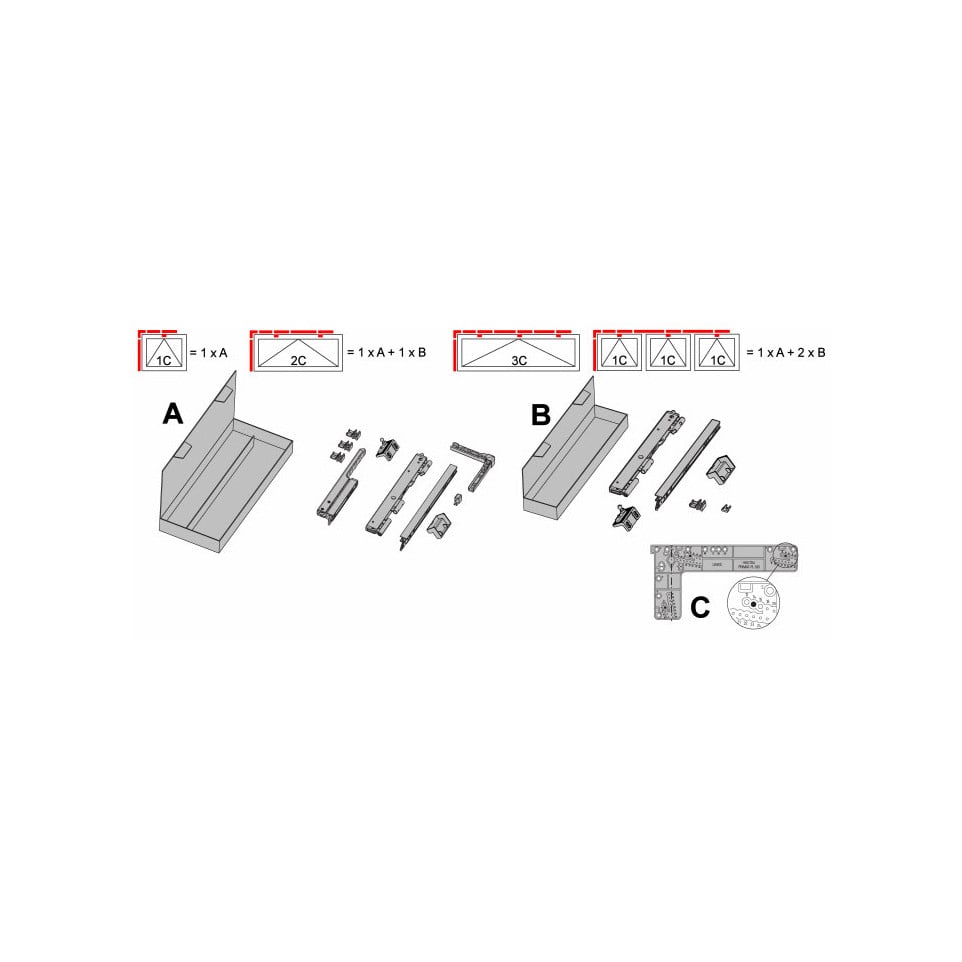

Drilling Jig for Hautau Primat FL190 per piece
€75.71
In stock
Usage
The drilling jig for Primat-FL190 is designed to ensure precise and efficient placement of mounting holes during the installation of lift-open and lift-open-drop fittings, particularly for the HAUTAU Primat-FL190 hardware series.
Advantages
- Enables accurate positioning of hardware components for secure assembly
- Simplifies and speeds up fitting installations on various window materials
- Reduces risk of misalignment, preventing operational faults in finished windows
- Compatible with both right- and left-hand use on timber, PVC, and aluminium frames
- A minor consideration: requires compatibility check with specific sash dimensions prior to use
Specifications
- Constructed from robust materials suitable for intensive site or workshop environments; includes anti-corrosion surface finish matching HAUTAU-Splus standards[1]
- Satisfies manufacturer’s precision requirements for placement distances (e.g., min. sash width of 440 mm) to achieve optimal performance[1][6]
- Pilot holes are guided according to system specifications, supporting opening widths up to approximately 190 mm when fitted with Primat-FL190 hardware[1][3]
- Differentiates by enabling universal use across multiple window frame materials without additional accessories[1]
How it works
The jig is positioned at specified locations on the window frame according to detailed mounting instructions. It guides drill bits precisely where fixings must be placed, ensuring all linkage, brackets, and stays align perfectly for reliable operation of the lift-open mechanism.
