Product
Kit of 2 pneumatic struts for Lift Advanced lifting compass systems, each with a spring force of 350N, designed for smooth and adjustable movement of cabinet flaps in residential or commercial furniture.
Specifications
- Made from powder-coated aluminium and robust grey plastic for reliable performance
- Features adjustable opening force and integrated soft-closing technology for silent operation
- Supports flap weights (including handle) from 2.5 to 15.3 kg
- Enables three-dimensional adjustment: vertical, horizontal, and tilt/depth (±2 mm in each direction)
- Simple installation and removal, compatible with wooden or framed wooden fronts and 19 mm aluminium profiles
Usage

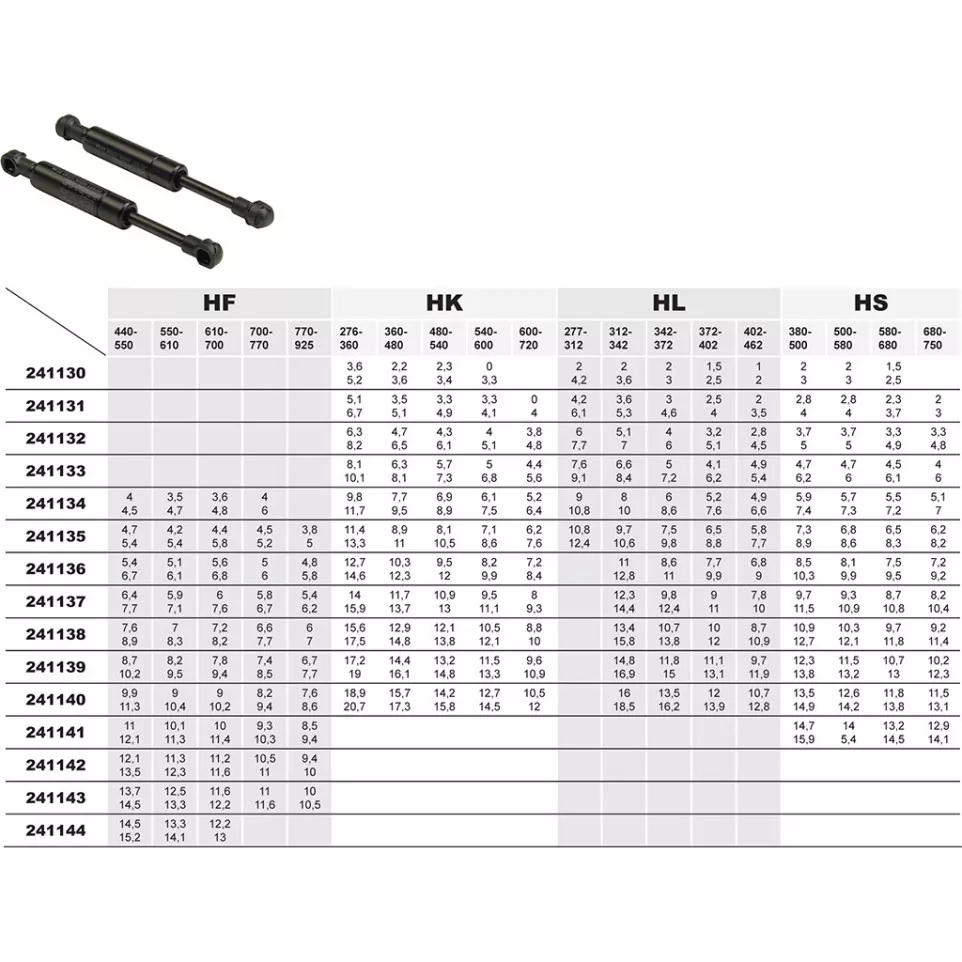

This kit allows for easy installation and removal of cabinet flap systems. When selecting from multiple spring options, always choose the stronger one if the table recommends two. The pneumatic struts facilitate the opening and controlled closing of upward-lifting cabinet fronts, making them ideal for kitchens, offices, or storage furniture.
FAQ
-
What is the recommended flap weight for these struts?
Each strut is suitable for flaps weighing from 2.5 to 15.3 kg, including the handle.
-
Can I install these on aluminium-framed cabinet fronts?
Yes, they are compatible with framed wooden fronts or fronts with 19 mm wide aluminium profiles.
-
Is the opening force adjustable?
Yes, the opening force can be adjusted to suit various flap weights and front designs.
-
Are these struts suitable for soft-closing doors?
Yes, they feature integrated soft-closing action for quiet and controlled door movement.
-
What if two spring forces are listed in the selection table?
Always select the more powerful spring to ensure optimal performance and safety.
