Set of 2 Pneumatic Gas Springs for Lift Advanced Hinges, Spring Force 550N per piece

Product

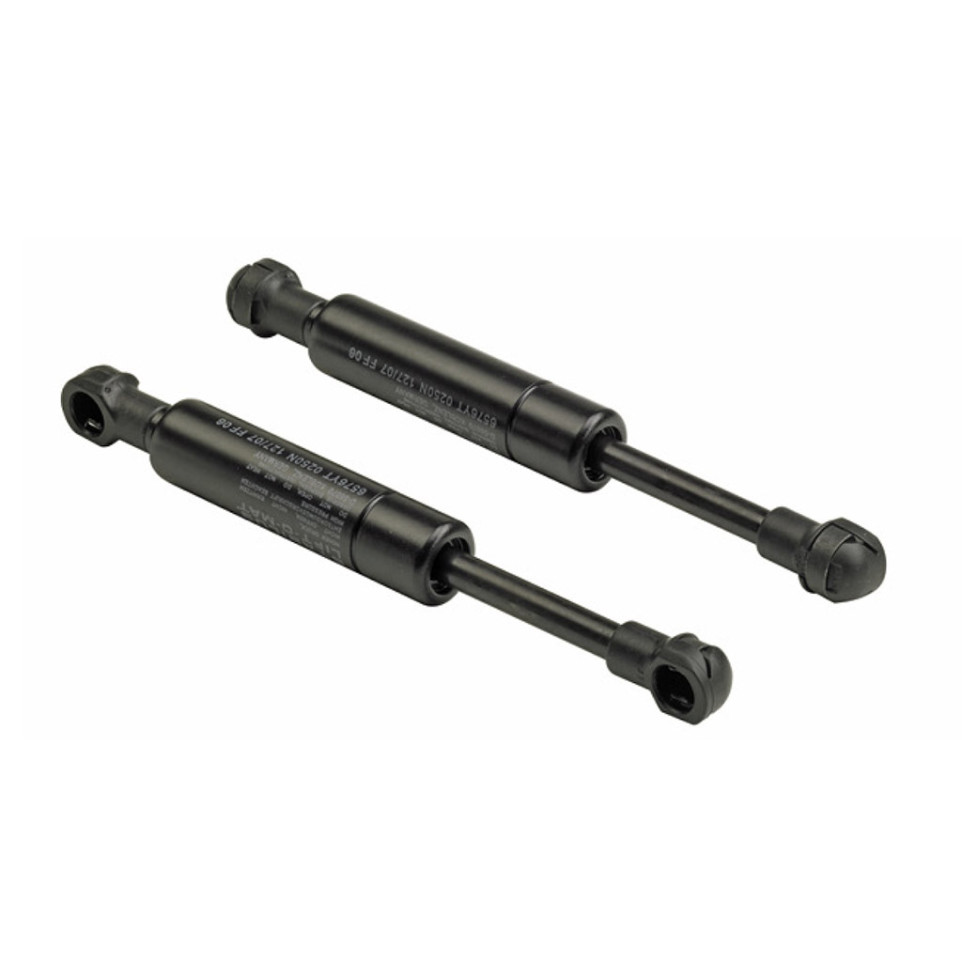

Kit of 2 pneumatic struts for Hettich Lift Advanced lifting compass, each offering 550N spring force. Designed for supporting upward-opening cabinet flaps, suitable for both residential and commercial furniture applications.

Specifications

• Constructed from durable powder-coated aluminium with silver or grey plastic components
• Features three-dimensional front adjustment: vertical ±2 mm, horizontal ±2 mm, tilt/depth ±2 mm
• Integrates Silent System technology for soft and silent closing
• Adjustable opening force adapts to different flap weights (supports flaps including handle from 2.5 kg to 15.3 kg)
• Simple installation and removal for convenient maintenance
• Compatible with wooden front panels, framed wooden panels, or panels with 19 mm wide aluminium profiles
• No cross member or centre hinge required

Usage

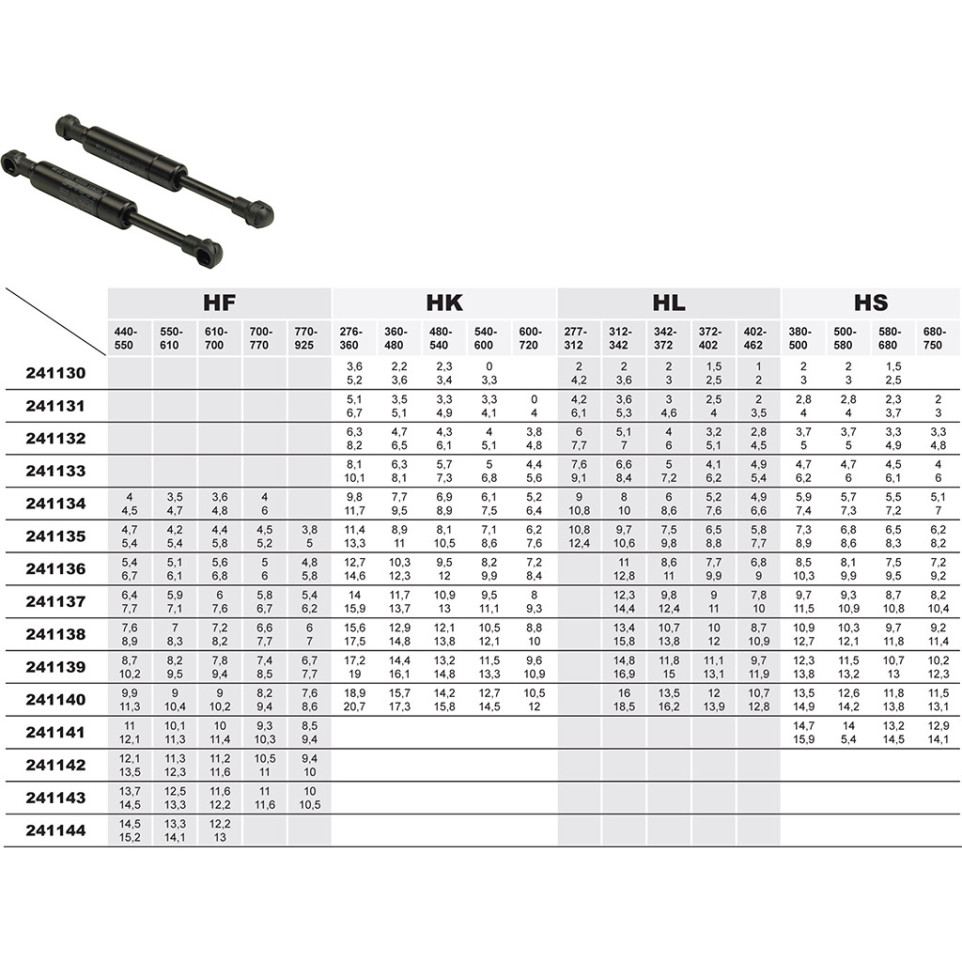

The kit is used to lift and hold cabinet flaps open smoothly and securely. Installation or removal is straightforward, enabling quick assembly or adjustment. When selecting between two possible strut options, always choose the stronger one according to the selection table for optimal performance.

FAQ

1. What is the maximum flap weight supported by these pneumatic struts?
   Each strut is suitable for flaps (including handle) weighing between 2.5 kg and 15.3 kg, depending on the specific configuration.

2. Can the struts be installed on aluminium-framed doors?
   Yes, they are compatible with wooden, framed wooden, and 19 mm wide aluminium profile front panels.

3. Is adjustment possible after installation?
   Yes, the system offers three-dimensional adjustment: vertical, horizontal, and tilt/depth, each by ±2 mm.

4. Do I need additional components for installation?
   Fast assembly concealed hinges with an opening angle of at least 110° are recommended and should be ordered separately if not already available.

5. How does the Silent System function benefit users?
   The integrated Silent System ensures soft closing, reducing noise and minimizing wear on cabinet components.
