Kit of 2 pneumatic struts for Hettich Lift Advanced, each with a force of 150N. Designed for use in lifting compass applications, this kit is suitable for wooden or aluminum-framed front panels in modern cabinetry.
Specifications
- Adjustable opening force for optimal flap lifting
- Constructed from powder-coated aluminum and grey/silver plastic
- Integrated Silent System for soft and quiet closing action
- Supports flap weight (including handle) from 2.5 to 15.3 kg
- Three-dimensional front panel adjustment: vertical ±2 mm, horizontal ±2 mm, tilt/depth ±2 mm
- Simple assembly and removal with the included set of two pneumatic struts
Usage

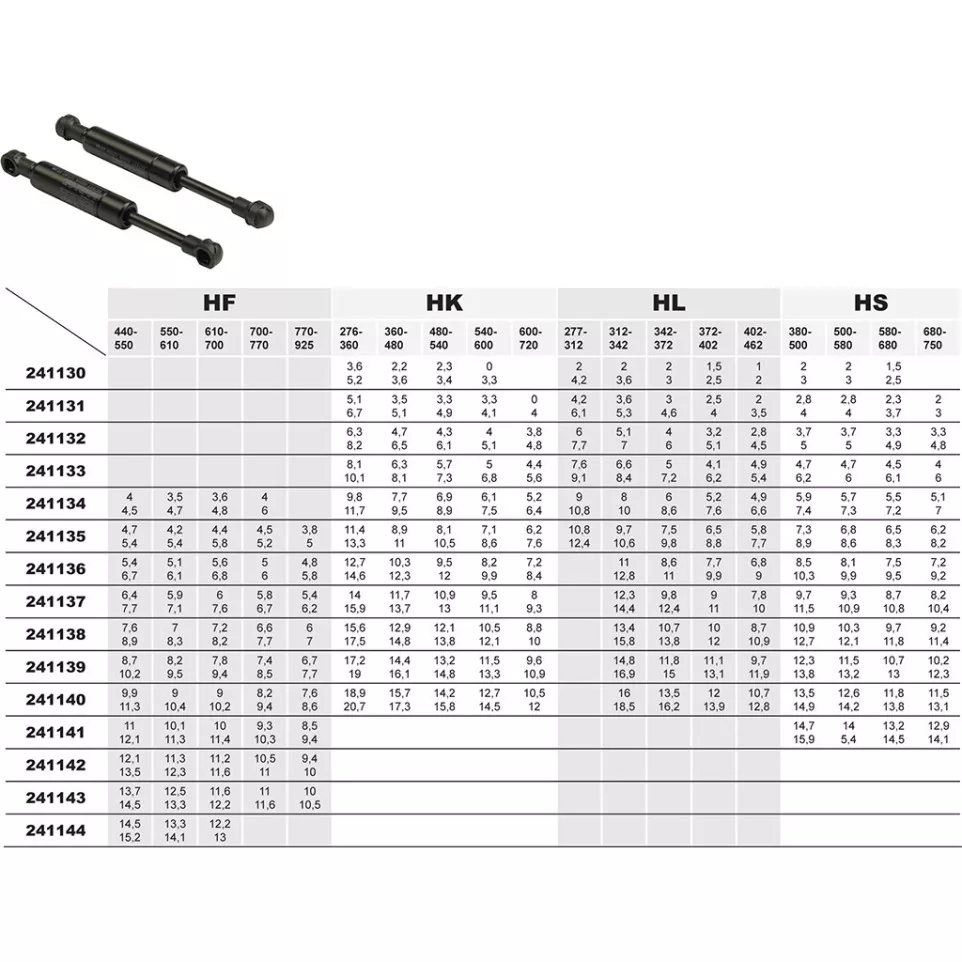

Designed for use with the Hettich Lift Advanced system, the pneumatic struts make opening and holding overhead cabinet flaps smooth and effortless. For installation, follow the selection table to choose the correct spring force; if two struts are required, always select the more powerful option for reliable performance.
FAQ
-
What front panel types are compatible with this kit?
The kit works with solid wood panels, framed wooden panels, or panels with a 19 mm wide aluminum profile.
-
What is the maximum supported flap weight?
Each strut supports flaps (including handle) weighing between 2.5 and 15.3 kg.
-
Does this kit include everything required for installation?
The kit contains two pneumatic struts; flap fittings and hinges must be ordered separately if needed.
-
Is the opening force adjustable?
Yes, the opening force can be adjusted to accommodate different flap weights.
-
How is the kit installed or removed?
The design allows for simple installation and removal, making maintenance or upgrades straightforward.
