Product

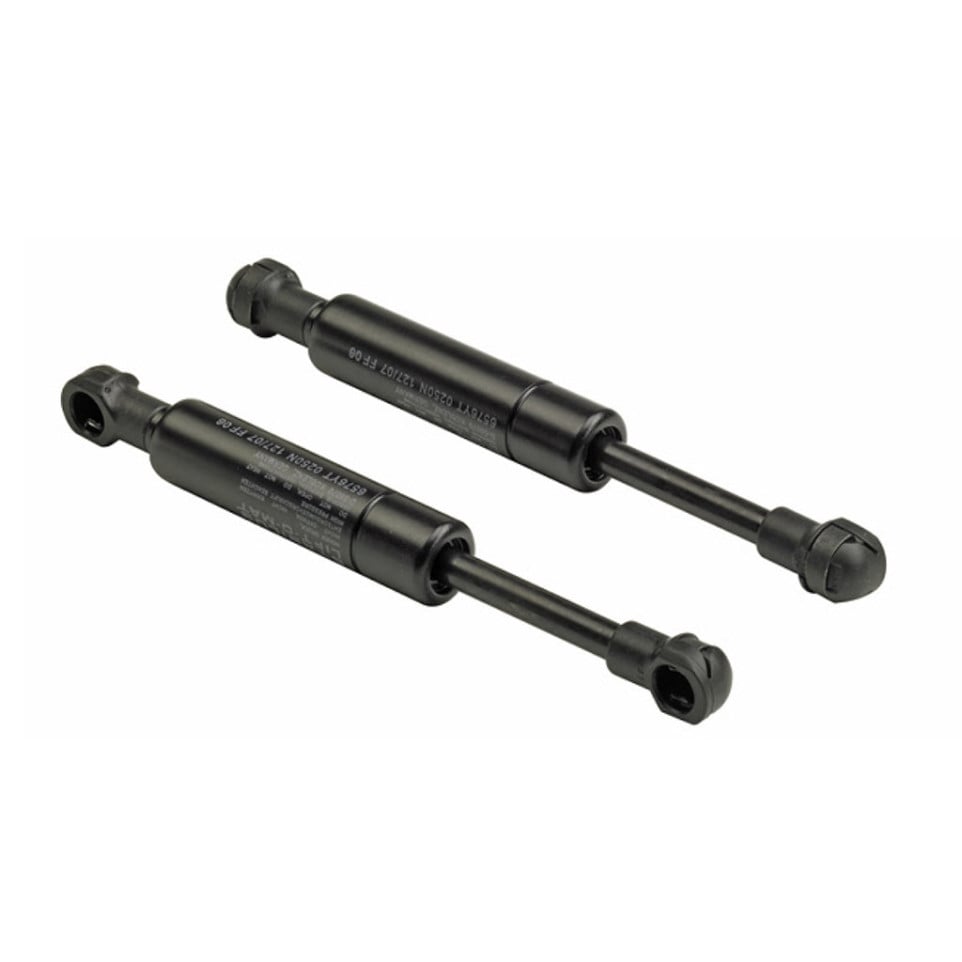

Kit of 2 pneumatic lifting struts for Hettich Lift Advanced, each providing a spring force of 450N. Designed for lifting compasses, ideal for supporting wooden or aluminum-framed cabinet fronts in modern and functional furniture applications.
Specifications
- Incorporates adjustable opening force technology for tailored movement
- Constructed using powder-coated aluminum and grey plastic for durability and corrosion resistance
- Integrated silent closing system ensures soft, controlled flap motion
- Supports front panels (wood, aluminum frame, or profiles of 19 mm width)
- Compatible with flap weights (including handle) between 2.5 and 15.3 kg
- Allows three-dimensional front adjustment: vertical ±2 mm, horizontal ±2 mm, tilt/depth ±2 mm
Usage

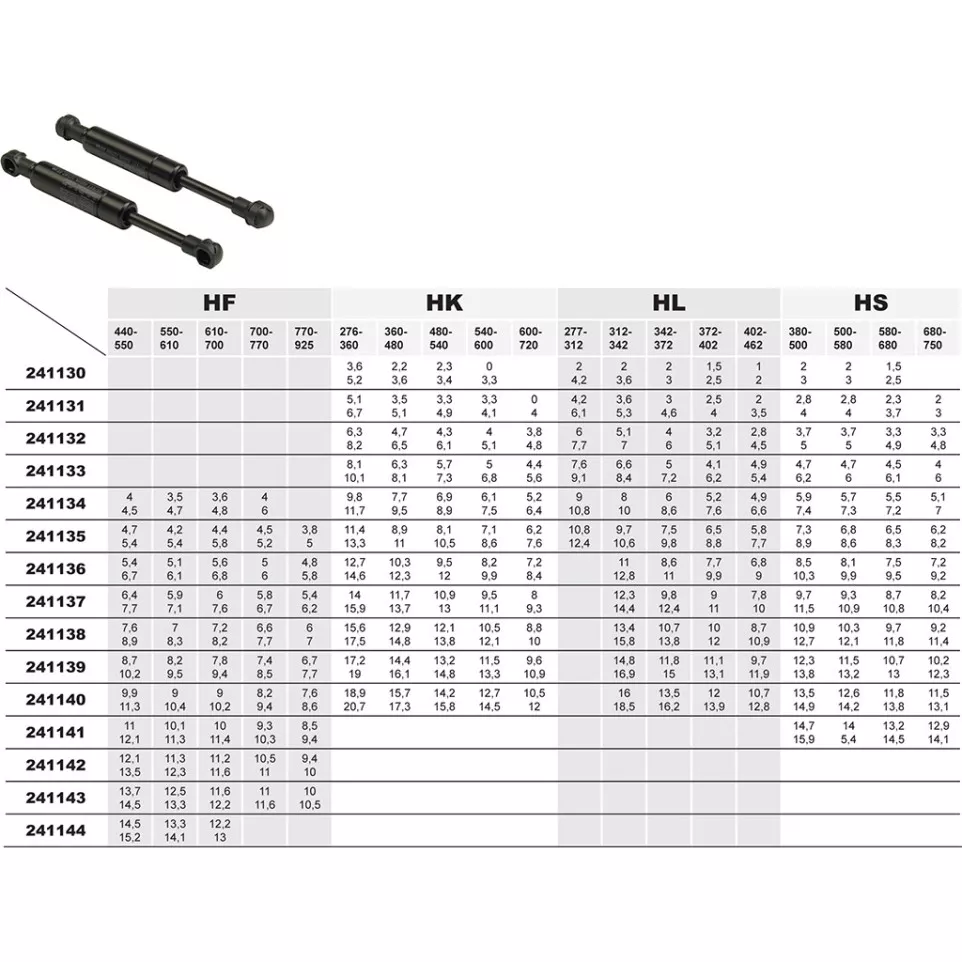

Install the pneumatic struts on lift-up flap cabinets by following a straightforward assembly process. Dismantling is equally simple for maintenance or replacement. Reference the selection table to choose the appropriate spring force—if multiple options fit, select the most powerful strut for optimal support.
FAQ
- What panel types are compatible with this kit?
- Suitable for wooden or framed wooden fronts and panels with a 19 mm wide aluminum profile.
- How much weight can these pneumatic struts support?
- Each kit is designed for flap weights, including the handle, ranging from 2.5 to 15.3 kg.
- Is installation difficult?
- No, the kit allows for easy assembly and disassembly, making it straightforward for professionals and advanced DIY users.
- Does it have soft close functionality?
- Yes, a silent system ensures gentle closing to protect both panel and hardware.
- Can I adjust the position of the flap after installation?
- Yes, the system supports three-dimensional adjustments—vertical, horizontal, and tilt/depth—for precise alignment.
