Usage
This adjustable lock is designed for securing doors with aluminum profiles featuring a 14 mm groove. It is ideal for use on windows, doors, or hatches made from aluminum, PVC, or metal frames in residential or commercial settings.
Advantages
- Height adjustment range of 8.8 mm enables precise fitting to various profile tolerances
- Constructed from corrosion-resistant zamak and stainless steel for improved durability
- Prevents accidental opening caused by vibrations or impacts
- Easy installation using toothed nuts for quick and secure mounting
- Slim design integrates seamlessly into standard EURO 14/18 grooves of aluminum profiles
Specifications
- The lock body and slide are made from zinc-plated zamak; the bolt (pêne) and internal mechanism are crafted from stainless steel and zinc-plated zamak for enhanced longevity and strength.
- The materials provide high corrosion resistance with reliable operation over time; no additional certifications required for typical profile-locking applications.

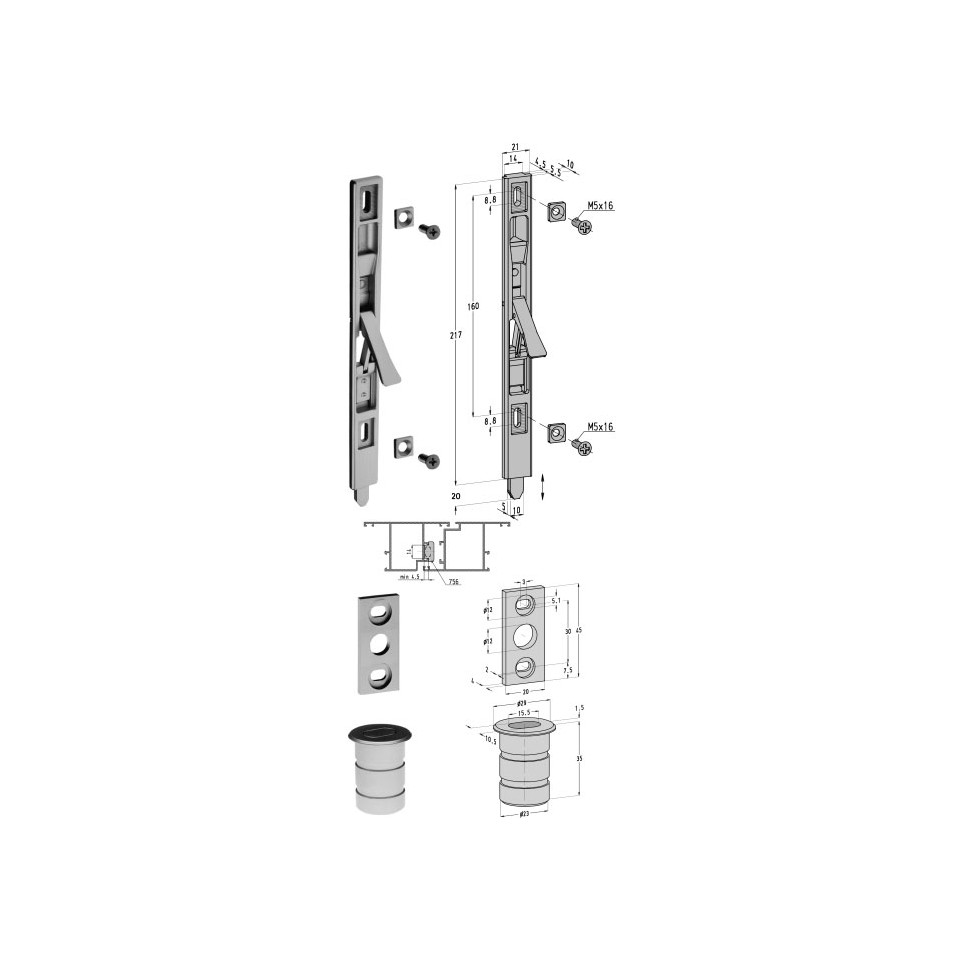

- Total dimensions: length × width = 217 mm × 21 mm; bolt stroke (course): 20 mm; suitable for groove widths of approximately 14–18 mm.
- Differentiating feature: height can be adjusted via toothed nuts to precisely accommodate variable profile tolerances without extra spacers or modifications.
How it works
The lock slides into the groove of the desired aluminum profile. By tightening the adjustable toothed nuts, users securely fasten it at the correct height. The lever-operated mechanism extends a robust bolt to prevent unwanted door movement due to shock or vibration, maintaining reliable closure across varying installation conditions.
