Locinox Flat Strike Plate for 40mm Square Tube Silver / pce
€16.18
In stock
Usage

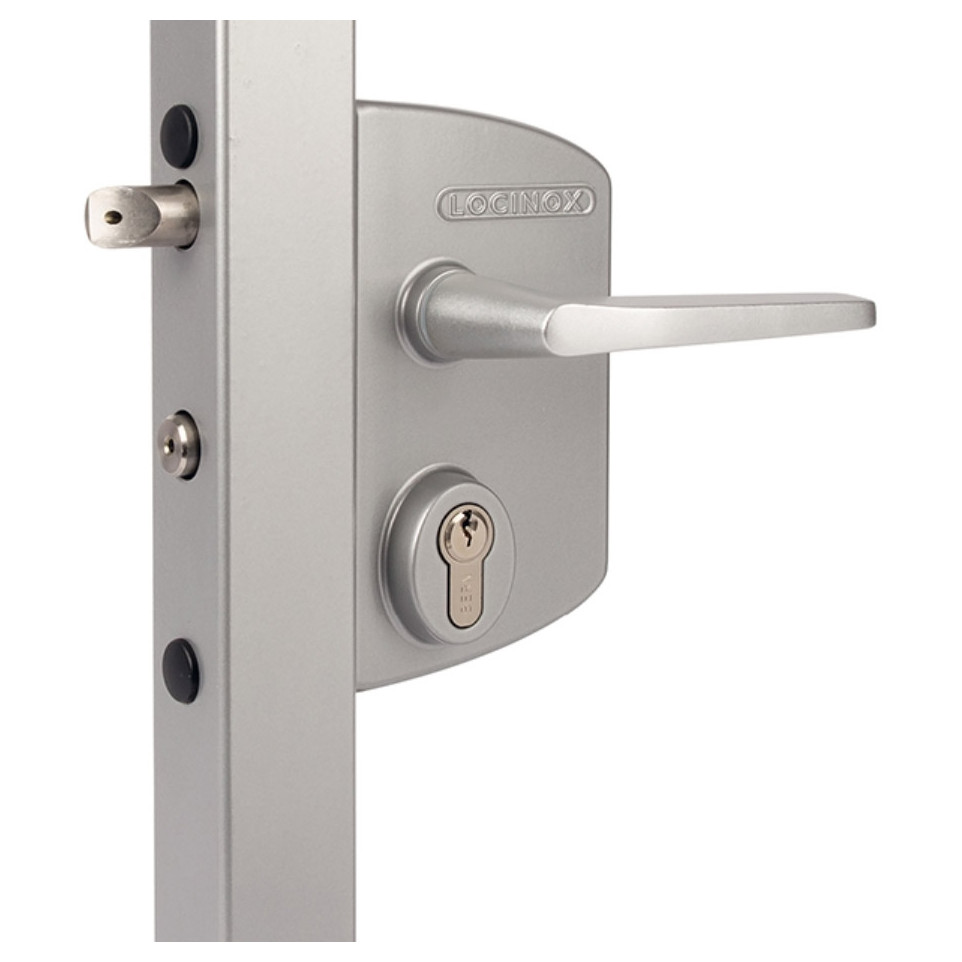

This lock is designed for securing swinging gates with a 40 mm square tube profile, making it suitable for metal garden or industrial gates in outdoor environments.
Advantages
- Compatible with square tube profiles from 40 mm to 60 mm for versatile installation.

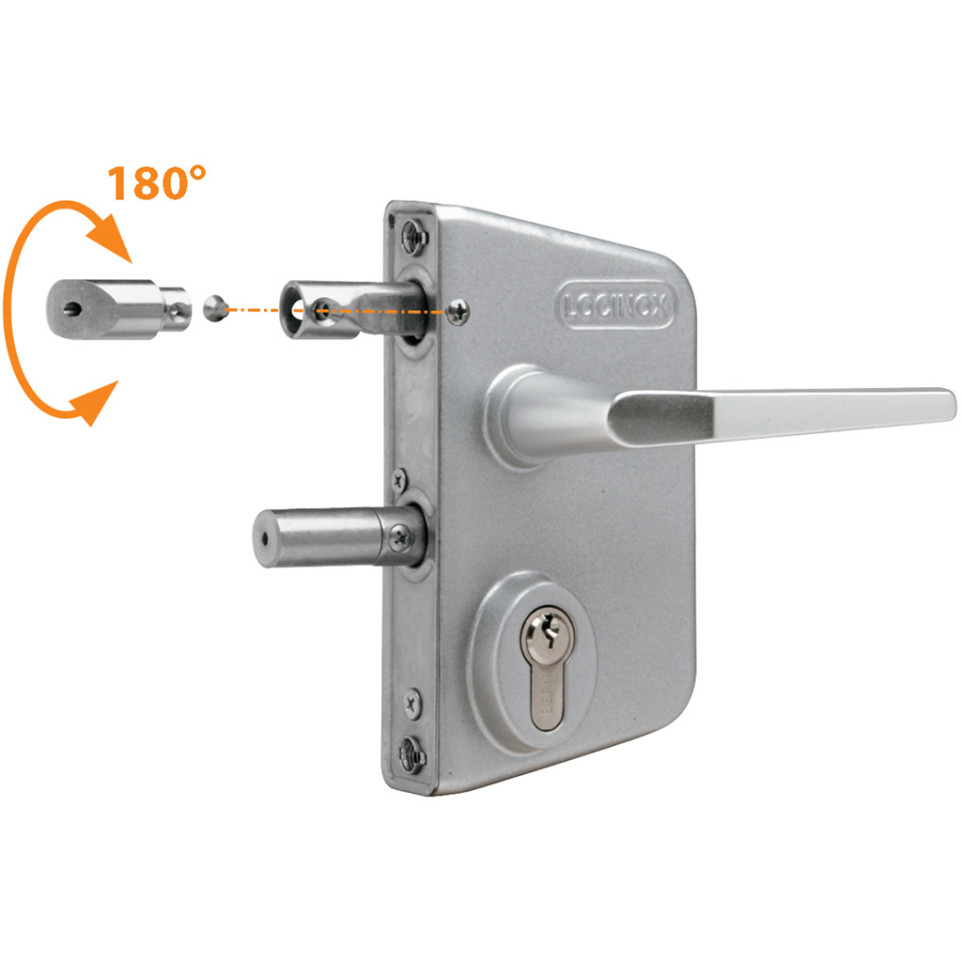

- Reversible latch and opening direction adapt to left or right-handed gates with ease.
- Durable silver lacquered aluminum body resists weather and corrosion, including salt spray up to 1,000 hours (ISO 9227 standard).
- Simplified installation using four mounting holes and two BTR screws for secure fixation.
- Latching system includes a key-operated deadbolt with a secure one-turn, nighttime locking action; supplied without cylinder (choose as needed).
Specifications
- Design: Lacquered aluminum case; stainless steel internal mechanism; silver finish.
- Sustainability: Tested to withstand up to 1,000 hours of salt spray per ISO 9227; suitable for continuous outdoor use.

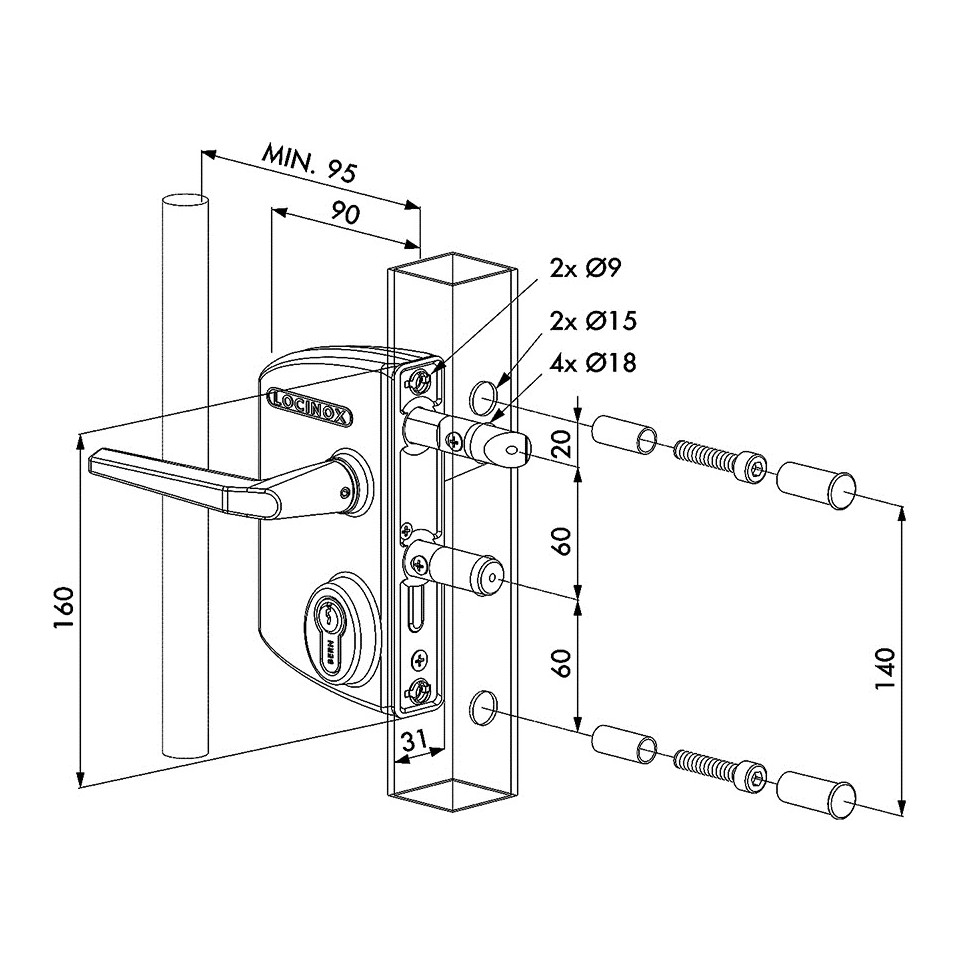

- Performance: Latch throw adjustable from the outside between profiles of 40–60 mm; deadbolt anchors securely by 23 mm per turn of key. Center distance between latches is 60 mm. Dimensions: height 160 mm × width 90 mm. Door thickness compatibility: 40 mm.
- Differentiating features: Reversible latch bolt and opening direction; easy recall of the latch by key operation for convenience. Fixing via robust BTR screws ensures lasting assembly integrity even under heavy use.
How it works
The lock fits into a square profile gate frame (typically metal), mounts via pre-drilled holes and BTR screws, then operates using either side’s handle or key. The reversible latch enables flexible left- or right-hand installation, while the keyed deadbolt secures the gate when locked at night or when unattended.
