Usage

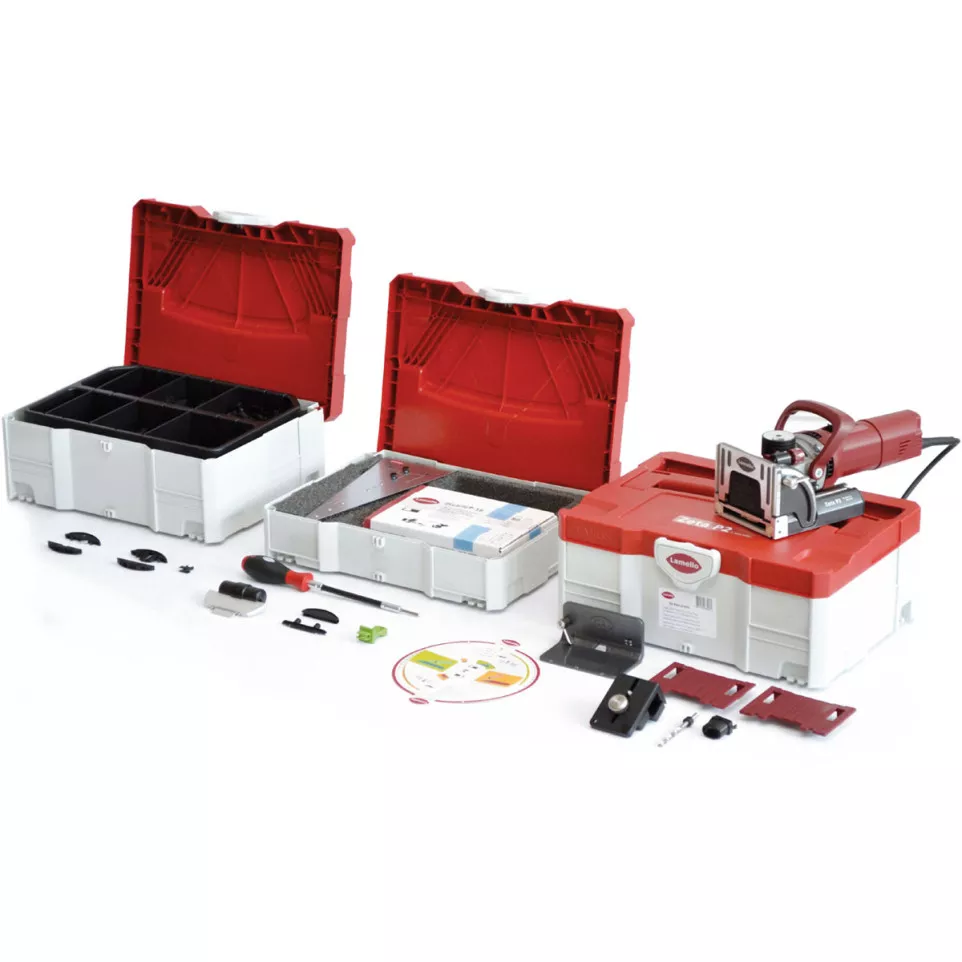

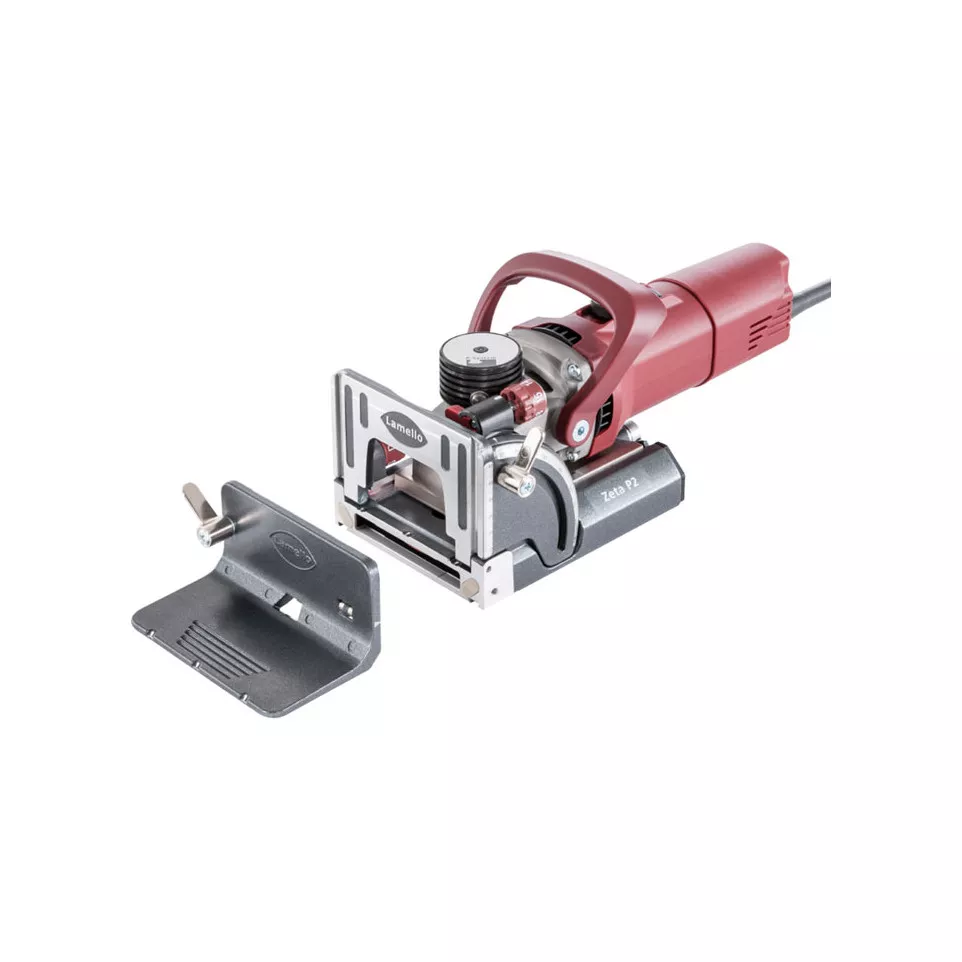

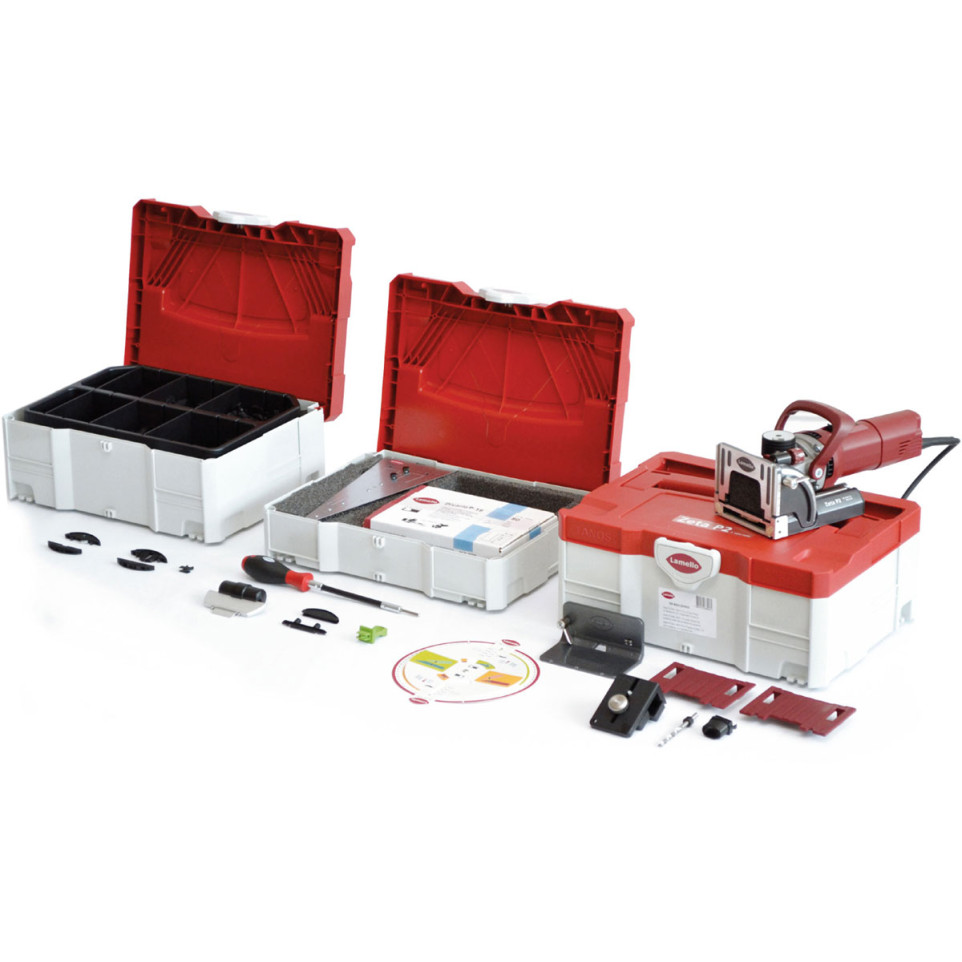

The Fraiseuse Lamello Zeta P2 (starter kit) is designed for creating precise grooves for P-System connectors in wood, engineered panels, and composite materials. It is suitable for furniture making, interior fitting, and joinery both in workshops and on job sites.
Advantages
- Integrated vertical mechanical drive automatically creates P-System grooves in seconds for fast assembly
- P-System depth adjuster allows quick selection of cutting depths: 10, 12, 14, 15 or 18 mm without changing cutters
- Works with various materials including solid wood, plywood, MDF, particleboard, plastics and solid surfaces
- Can function as a standard biscuit joiner by switching off the profile groove mode and changing blades
- Mechanical system provides reliable performance with low wear; no electronic parts in the drive mechanism
Specifications
- Design: Robust construction with a precision-machined baseplate; carbide-tipped or diamond-tipped profile groove cutter Ø100 × 7 × Ø22 mm with three teeth; ergonomic controls; supplied with accessories including stop square and spacers.
- Durability: Mechanical vertical drive built from high-precision rotary components ensures longevity. Protection class II safety rating.
- Performance:
Power output: up to 1 050 W (230 V);
Rotational speed: 9 000 min-1 (rpm);
Maximum cutting depth: 20 mm;
Groove width: 7/10 mm;
Weight: 3.7 kg;
Hand-arm vibration: ≤ 2.5 m/s² - Differentiating features: Automatic axial movement during milling for form-locking grooves compatible with all Lamello P-System connectors (Clamex P-14/P-10/Flexus/Tenso/Divario). Adjustable front stop for versatile joint types (angle joints/dividing panels/mitres). No need to change cutters between different groove depths.
How it works
The user positions the Zeta P2 on the workpiece edge or surface using precise adjustable stops. When plunging into the material at the selected depth setting, an internal mechanical system triggers a vertical movement of the cutter to form a specialized undercut groove ready to accept tool-free P-System connectors.
