Product

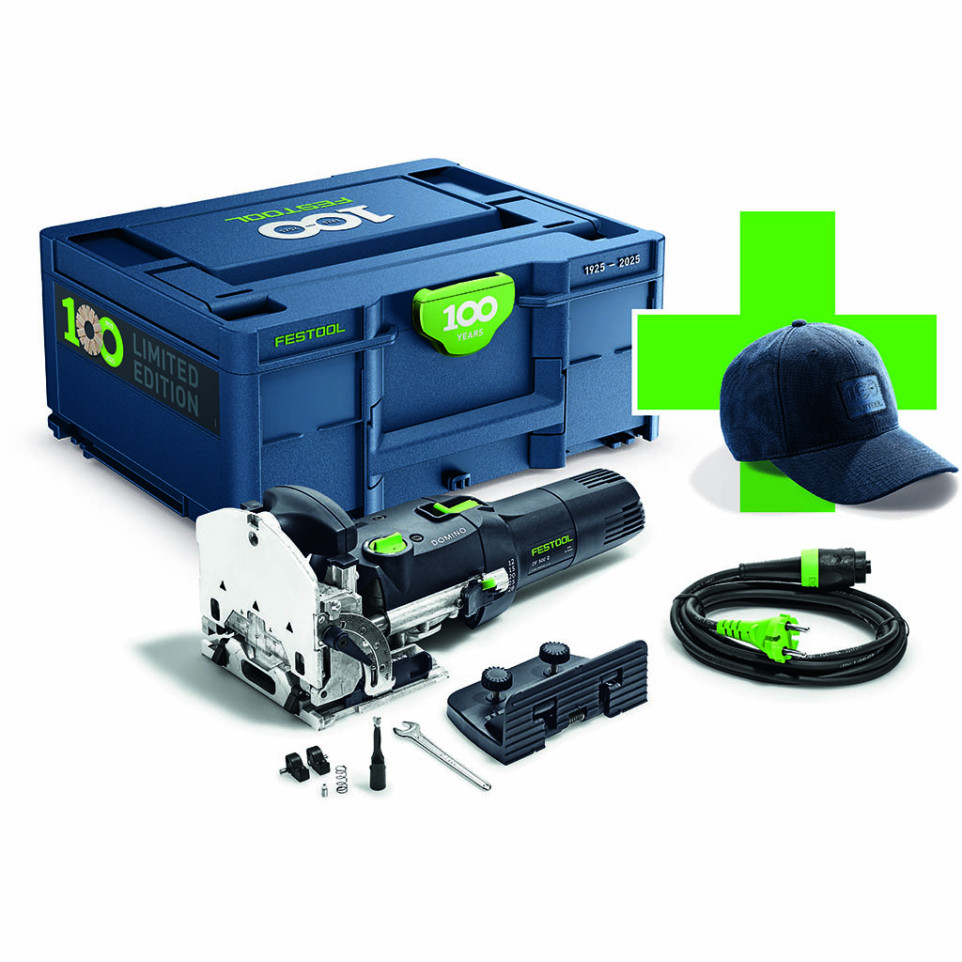

The Fraisseuse Domino Festool DF500 Limited Edition is a precision joiner designed for professional and advanced woodworking tasks. Ideal for cabinetry, furniture making, and interior applications, it ensures accurate, repeatable mortise-and-tenon joints with enhanced efficiency.
Specifications
- Power consumption: 420 watts
- Idle engine speed: 25,500 RPM
- Mitre routing angle: 0–90°
- Weight: 7.72 lbs (3.5 kg)
- Routing height adjustment: 5–30 mm
- Max. routing depth: 28 mm
- Dust extraction port diameter: 27 mm
- Accepts slot cutters from 4 mm to 10 mm
- Adjustable depth stops: 12, 15, 20, 25, 28 mm
- Includes support bracket, trim stop, cross stop, open-ended spanner, 4 m power cable, and limited edition Systainer case
- Designed for reliable, rotation-proof joints with patented cutting mechanism
Usage
Position the DF500 on your workpiece, set your routing depth and cutter size, then engage the motor to cut precise mortises for Domino tenons. Compatible with varied tenon sizes, it enables quick setup for different wood thicknesses and joint types. Integrated dust extraction keeps the workspace clean and improves cutting accuracy.
FAQ
-
What materials can the DF500 be used with?
The DF500 is suitable for hardwood, softwood, and many composite panel materials commonly used in cabinetry and furniture making. -
What is the maximum mortise depth achievable?
The DF500 can route mortises up to 28 mm deep, accommodating most standard Domino tenons. -
Does the tool support dust extraction?
Yes, it features a 27 mm dust extraction port for connection to compatible Festool dust extractors. -
What sizes of Domino tenons can I use?
The joiner supports tenons from 4 x 20 mm up to 10 x 50 mm with appropriate slot cutters. -
Is this limited edition version functionally different from the standard DF500?
The limited edition offers the same technical performance as the standard model but includes special anniversary packaging and accessories.
