GU Secury X F16 45/92/10 Central Lock Case Operated by Cylinder per piece

Product

The GU Secury X F16 45/92/10 is a modular multipoint central lock case designed for enhanced door security. Suitable for residential or commercial doors, it features a three-part construction and cylinder-driven locking, ensuring robust and flexible access control.

Specifications

• Three-part central multipoint lock case controlled by cylinder
• 10 mm spindle (reducer to 8 mm available, ref. FG 102899)

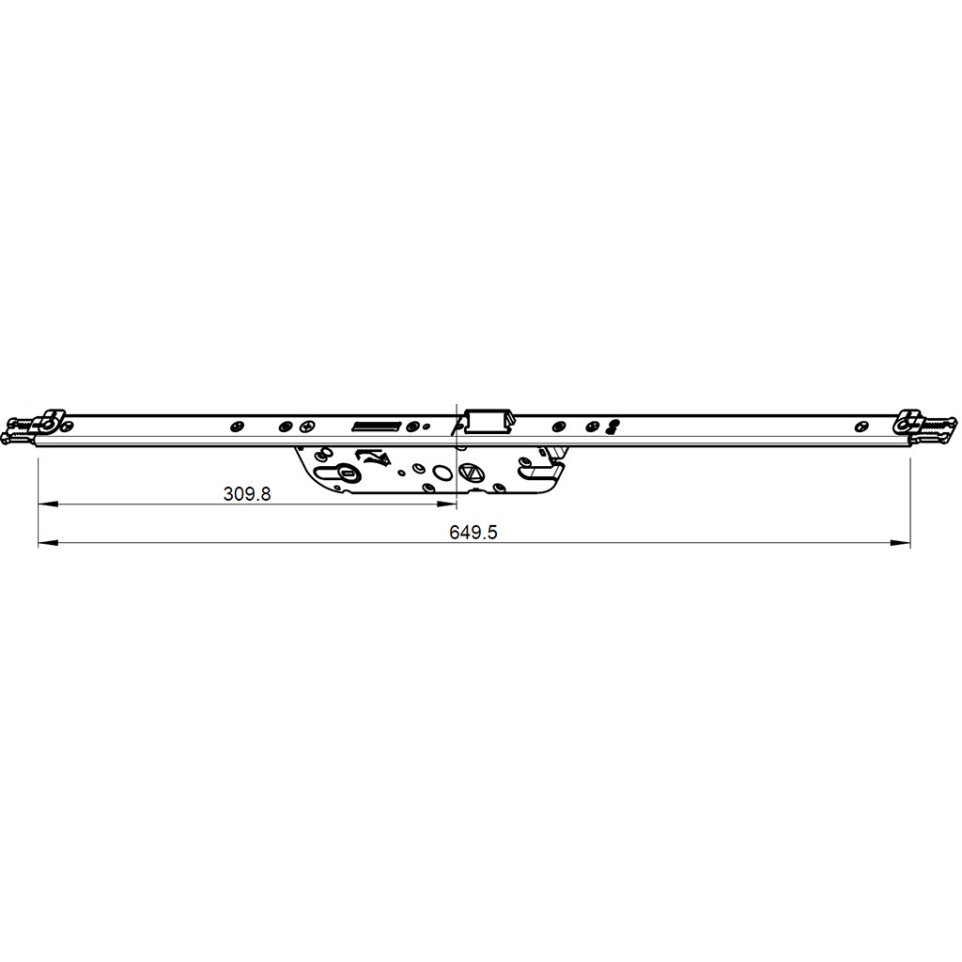

• Flat faceplate: 2.5 x 16 mm (width) × 650 mm (length)
• Central case: 213 mm (height), 64 mm (depth)
• Latch bolt: 32 mm (height), 11 mm projection
• Deadbolt: 33 mm (height), 20 mm projection
• 84.5 mm center distance between latch and deadbolt
• Engineered for durability and secure multipoint locking in modular systems

Usage

Install the GU Secury X F16 central case as the core component of a multipoint locking system. It uses a single cylinder to lock or unlock all points simultaneously, providing secure and convenient access for timber, steel, aluminum, or PVC doors. The lock is compatible with a 10 mm spindle and can be adapted to 8 mm with an optional reducer.

FAQ

1. What spindle size does this lock require?
   The lock uses a 10 mm spindle; a reducer to 8 mm is available if needed.

2. Can it be installed on different door materials?
   Yes, it is compatible with timber, steel, aluminum, and PVC doors.

3. What are the faceplate dimensions?
   The faceplate measures 2.5 mm thick, 16 mm wide, and 650 mm long.

4. How are the bolts configured?
   It features a latch bolt (32 mm high, 11 mm projection) and a deadbolt (33 mm high, 20 mm projection), with an 84.5 mm center distance between them.

5. Is the lock operated by key or handle?
   The locking mechanism is controlled by a cylinder, requiring a key for operation.
