Usage
The GU Secury X F16 Kit with upper and lower rods is designed for modular multipoint locking of doors, providing secure locking at top, center, and bottom points via cylinder operation. Suitable for residential and commercial security upgrades.
Advantages
- Enhanced burglary resistance thanks to multipoint round bolt locking.
- Modular system allows easy adaptation to various door types and sizes.
- Durable construction ensures long-term reliability with minimal maintenance.
- Main lock latch is reversible for right or left hand installation.
- Installation may require technical skills due to the modular assembly of rods and central case.
Specifications

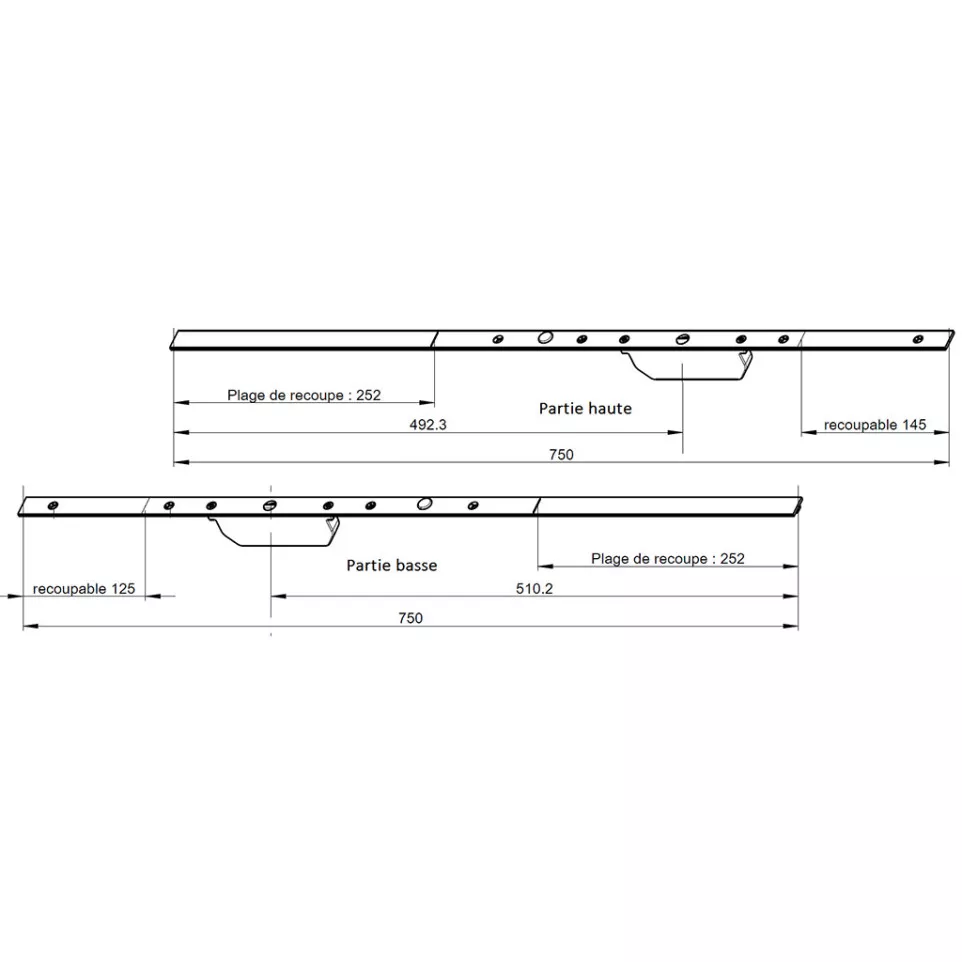

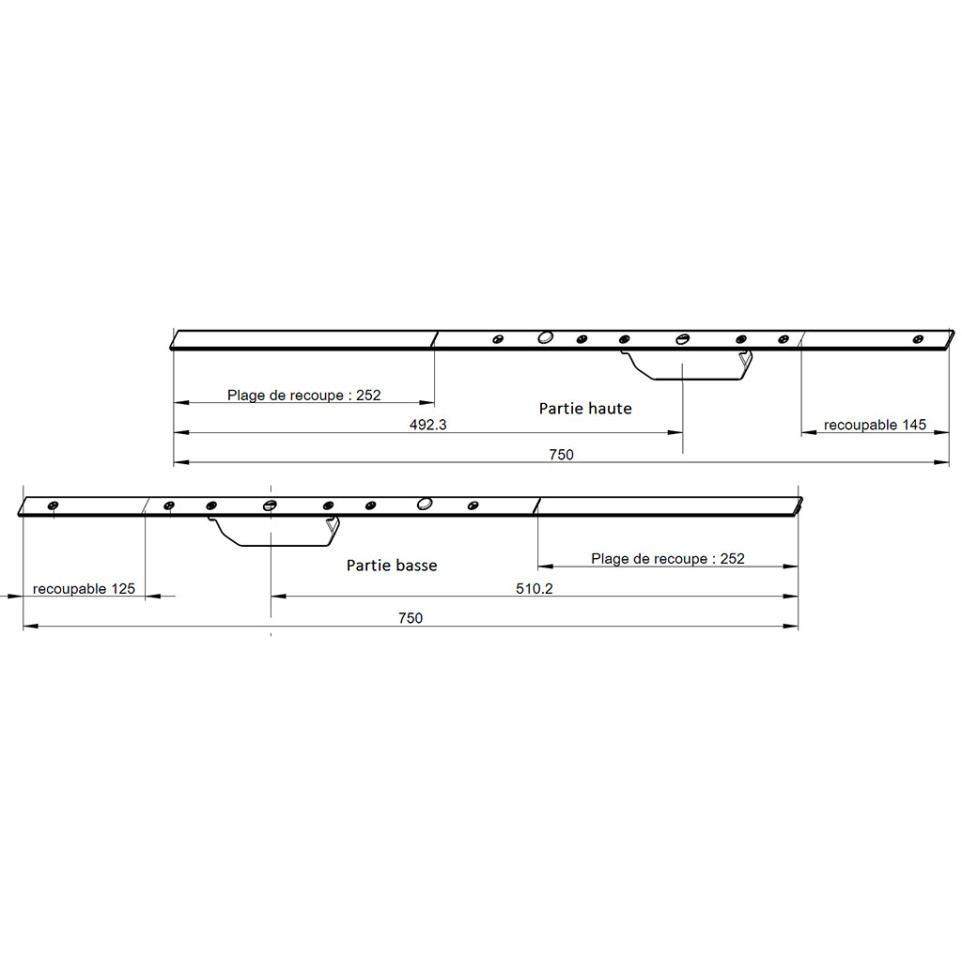

- Design: Modular kit includes main central lock case (cylinder operated), upper and lower extension rods with round bolts; flat faceplate width: 16 mm; faceplate length: typically up to 650 mm; central box dimensions approx. height: 213 mm, depth: 74 mm.
- Materials/Technologies: Robust steel components designed for anti-manipulation strength; corrosion-resistant finishes available for long service life.[1][2]
- Performance: Multipoint engagement secures the door at three locations—top, middle, bottom—with a throw length of approximately 32 mm per bolt.[1][2]
- Differentiators: Reversible latch function (right/left); customizable extensions match varied door heights; compatible with standard profile cylinders.[1][2]
How it works

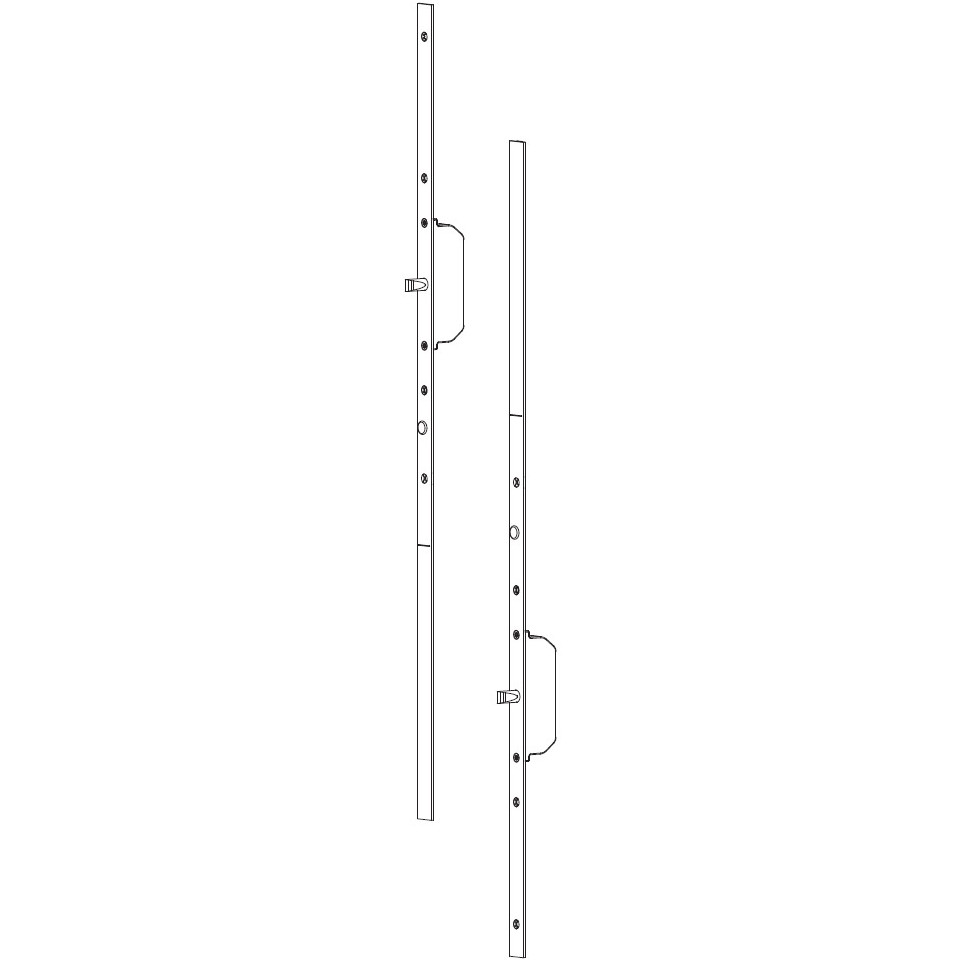

The cylinder-controlled main lock activates simultaneously the top and bottom round bolts through rigid extension rods. One key turn locks or unlocks all points in a single motion, efficiently distributing holding force across the full door height.[1][8]
