Usage

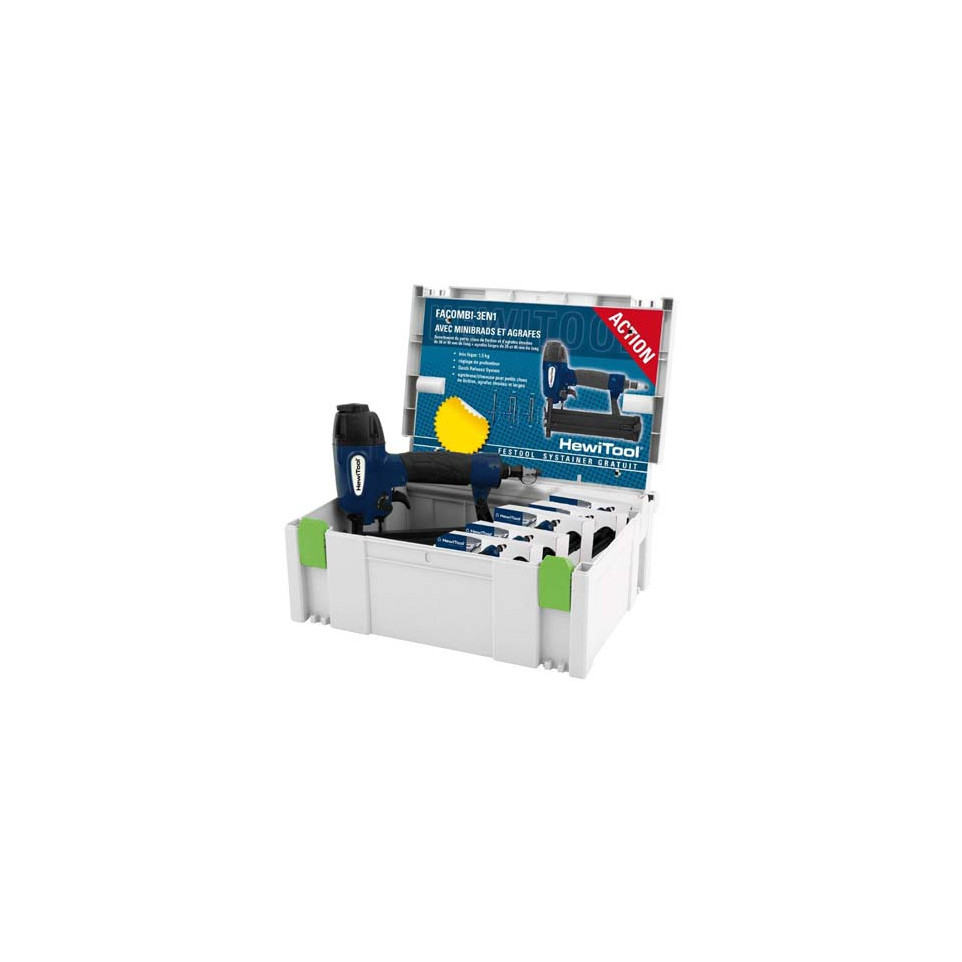

This combined nailer and stapler is designed for precise fastening in carpentry, furniture assembly, panel installation, and decorative finishing work. Suitable for both professional users and DIY projects using mini-brads or staples.
Advantages
- Versatile application as both a nailer and stapler for various materials and tasks
- Lightweight aluminum body reduces fatigue during prolonged use
- Adjustable depth control ensures accurate fastening for different surfaces
- Rubberized grip provides comfort and vibration damping while working
- Double safety trigger minimizes the risk of accidental firing during use
Specifications
- Design: Compact aluminum body with non-slip rubber handle; compatible with standard air compressors via universal connector (1/4" NPT)
- Durability: Resistant to intensive use; complies with CE safety standards; includes air exhaust adjustable to 360° to keep work area clear
- Performance: Operates at a service pressure of 4–7 bar (max. 8.3 bar); air consumption approximately 0.8–1.4 L/min per shot; magazine holds up to 100 fixings
- Differentiating Features: Accepts staples from approx.16–40 mm length and mini-brads from approx.15–50 mm length; quick-release nosepiece simplifies jam clearing (dimensions approx. 27 x 7 x 28 cm; weight: 1.4 kg)
How it works
The tool uses compressed air supplied by an external compressor to drive staples or brads into wood or other suitable surfaces. Select the appropriate fastener, adjust depth as required, press the nose against the workpiece, then activate the trigger mechanism for precise fixation.
