Carat PT0635 Headless Pin Nailer in Systainer per piece
€350.22
In stock
Usage

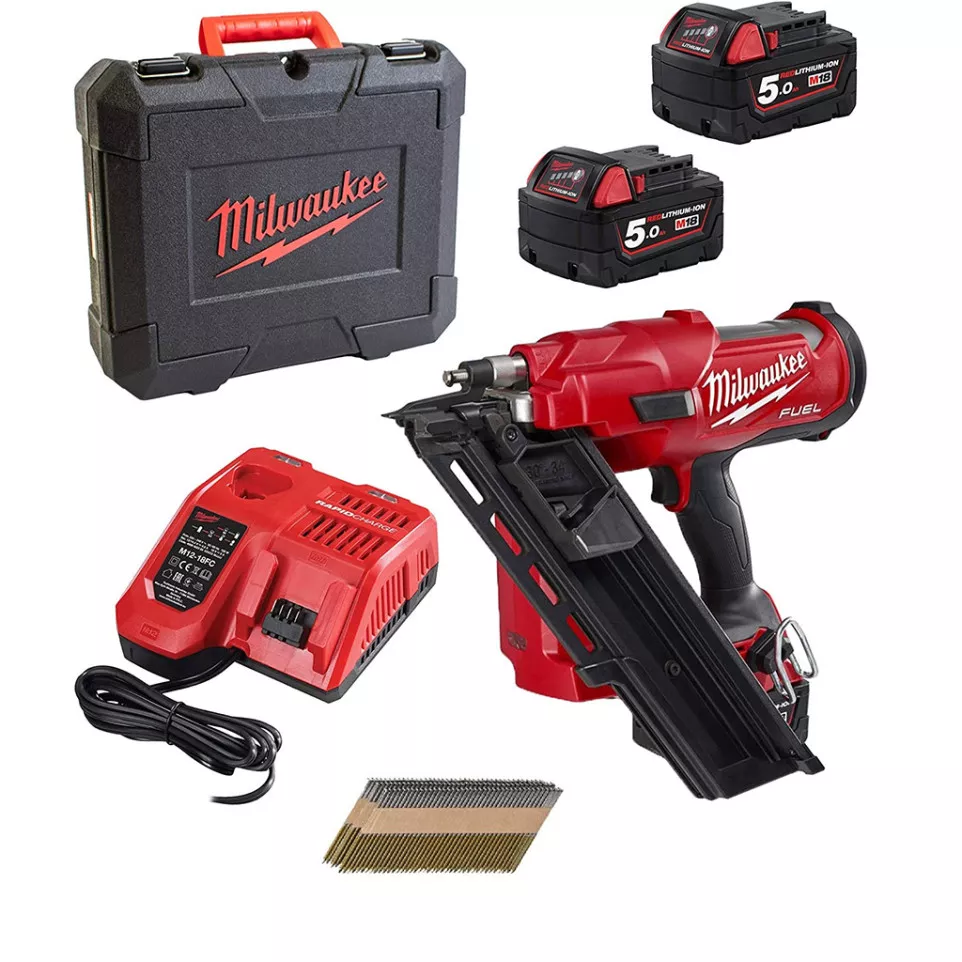

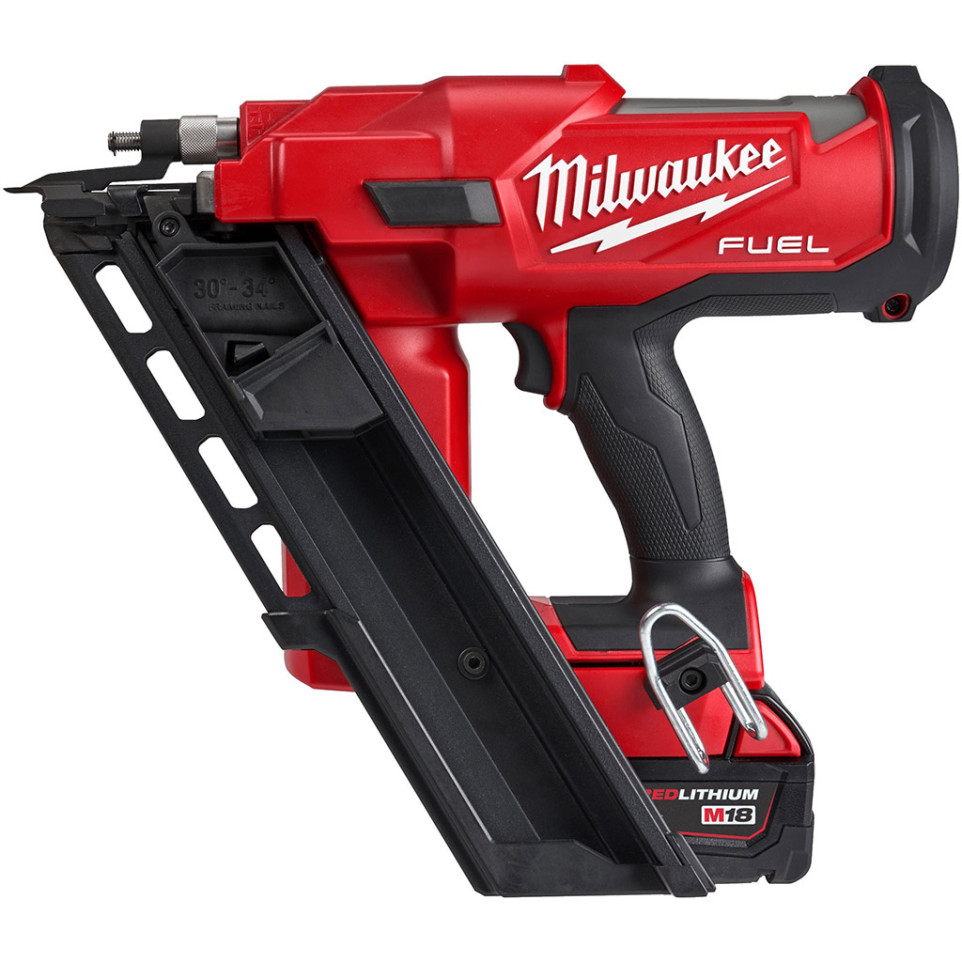

The Milwaukee M18 FFN-502C cordless framing nailer is designed for professional carpentry and construction applications, enabling rapid and efficient nailing of timber frames, studs, and similar wooden structures without the need for a compressor or gas cartridges.
Advantages
- Consistently drives nails sub-flush in hardwoods with no ramp-up time between discharges.
- Eliminates gas cartridges and cleaning requirements, reducing operating costs and maintenance needs.
- Powers up to 700 nails per charge with the included REDLITHIUM™-ION 5.0 Ah batteries for longer runtime on site.
- Two selectable firing modes: sequential for precision or bump fire for speed in repetitive tasks.
- The tool is slightly heavier than some pneumatic alternatives due to battery integration (5.0 kg without battery).
Specifications
- Design & Technology: Integrates POWERSTATE™ brushless motor, REDLITHIUM™-ION batteries, REDLINK PLUS™ intelligence; angled magazine (30–34°); robust construction for site durability.
- Durability & Standards: No routine cleaning required; dry-fire lockout extends component life; meets regulatory compliance marks; supplied in a durable carry case with two batteries and charger.
- Performance Data:
Nail length capacity: 50–90 mm
Nail diameter: 2.9–3.32 mm
Cycling rate: up to three nails per second
Shoots up to approximately 700 nails per full charge (5.0 Ah battery)
Magazine capacity: up to 51 nails - Differentiating Features:
Tool-free depth adjustment,
LED work light,
Dry-fire lockout function,
Quick jam release access,
Flexible system compatibility with all Milwaukee M18™ batteries.
How it works
The user loads collated framing nails into the angled magazine, installs a charged battery pack, then selects sequential or bump fire mode as needed. Pressing the nosepiece against wood activates contact trip safety—pulling the trigger delivers instant power via brushless motor technology to drive each nail flush into timber efficiently.
