Mafell UVA 115 E Orbital Sander / pc

Usage

The Mafell UVA 115 E orbital sander is designed for professional sanding of wood, painted surfaces, and plastics. It is ideal for coarse and fine sanding, surface preparation, and working in corners or on edges where precision is required.

Advantages

• Efficient dust extraction system with side channels reduces residual dust to as little as 3% without a vacuum cleaner[5][7].
• Low-vibration operation ensures comfort during extended use; vibration at the front handle is just 1.9 m/s², below safety standard EN 60745[5][7].
• Electronically adjustable speed allows optimal results on various materials and prevents overheating of abrasive sheets[5][7].
• Robust soft-grip surfaces improve handling safety and minimize user fatigue during long sessions[5][7].
• The rectangular pad (115 x 230 mm) plus included delta pad offer versatility for flat surfaces and tight spaces; however, total weight of 2.7 kg may feel heavy in prolonged overhead work[5][1].

Specifications

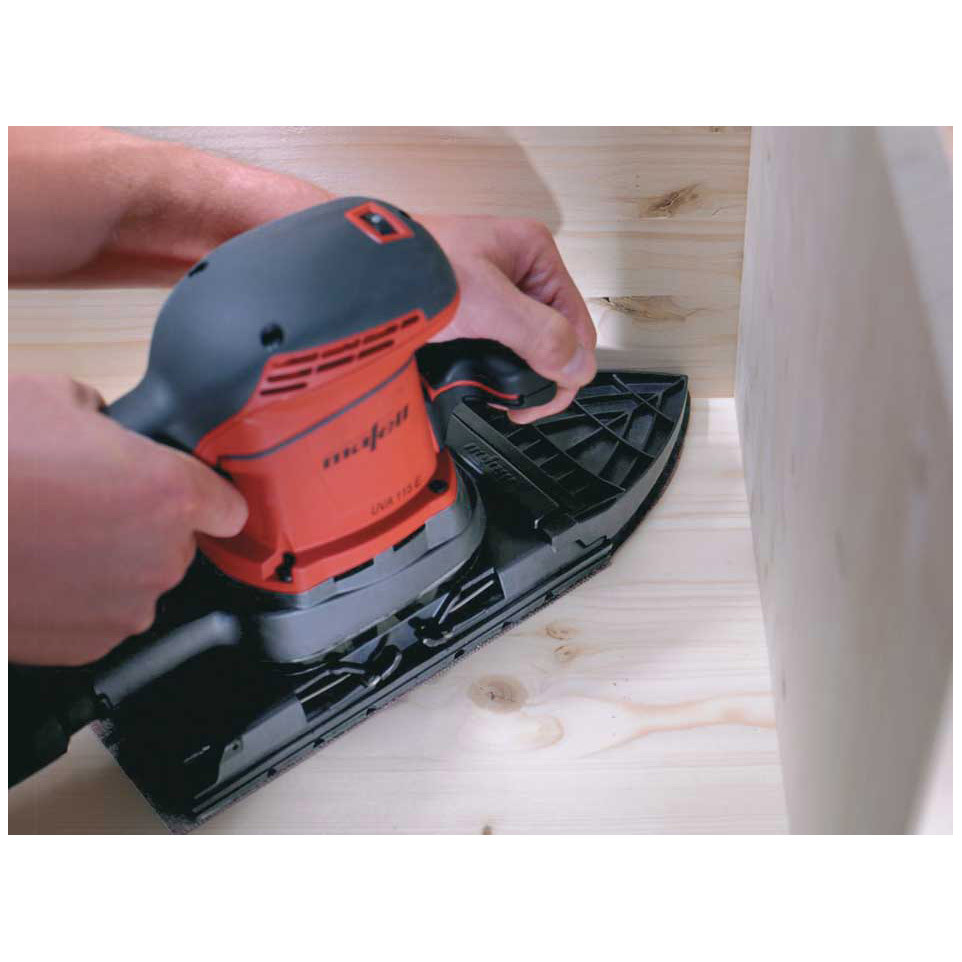

• Sanding pad dimension: rigid aluminum base with hook-and-loop fastening for easy sheet changes; includes both rectangular (115 x 230 mm) and delta pads for detail work[1][5][7].
• Tear-resistant anti-static PP nonwoven filter bag (UFB-1); effective dust sealing extends motor life; conforms to EN safety standards with noise emission below workplace limits (83 dB(A))[5][9][7].
• Power input: nominally rated at 450 W; electronically controlled speed range from 2000–12000 strokes/minute; sanding stroke: 2.6 mm; weight: 2.7 kg[1][3][9].[5]
• Differentiating features include vibration dampers isolating the handles from the working area, integrated side channel dust extraction in the baseplate, optional connection to external vacuum via standard connector (35 mm), soft-start motor electronics, and comprehensive accessory set included in storage case[1][5][7].

How it works

The Mafell UVA 115 E operates by moving its sanding pad rapidly in small orbits while maintaining contact with the work surface. The electronically adjustable speed ensures precise material removal across various substrates while integrated ducts extract dust efficiently into a robust filter bag or external system for cleaner operation.
