Bosch GST 90 E Jigsaw / pc

Product

The Bosch GST 90E is a professional-grade power jigsaw designed for accurate straight and curved cuts in wood, aluminum, and steel. Ideal for workshop or jobsite use, it delivers reliable performance for demanding cutting applications.

Specifications

• Features a 650 W motor for efficient cutting power.
• Equipped with the Bosch SDS system for fast, tool-free blade changes.
• Built with a deformation-resistant steel base plate for stability and durability.
• Four-position pendulum action allows for adjustable cutting speed and reduced splintering.
• Integrated chip blower for optimal workpiece visibility, with the option to switch off for dust extraction compatibility.
• Maximum cutting capacities: 90 mm in wood, 20 mm in aluminum, and 10 mm in steel.
• Weight: 2.3 kg.

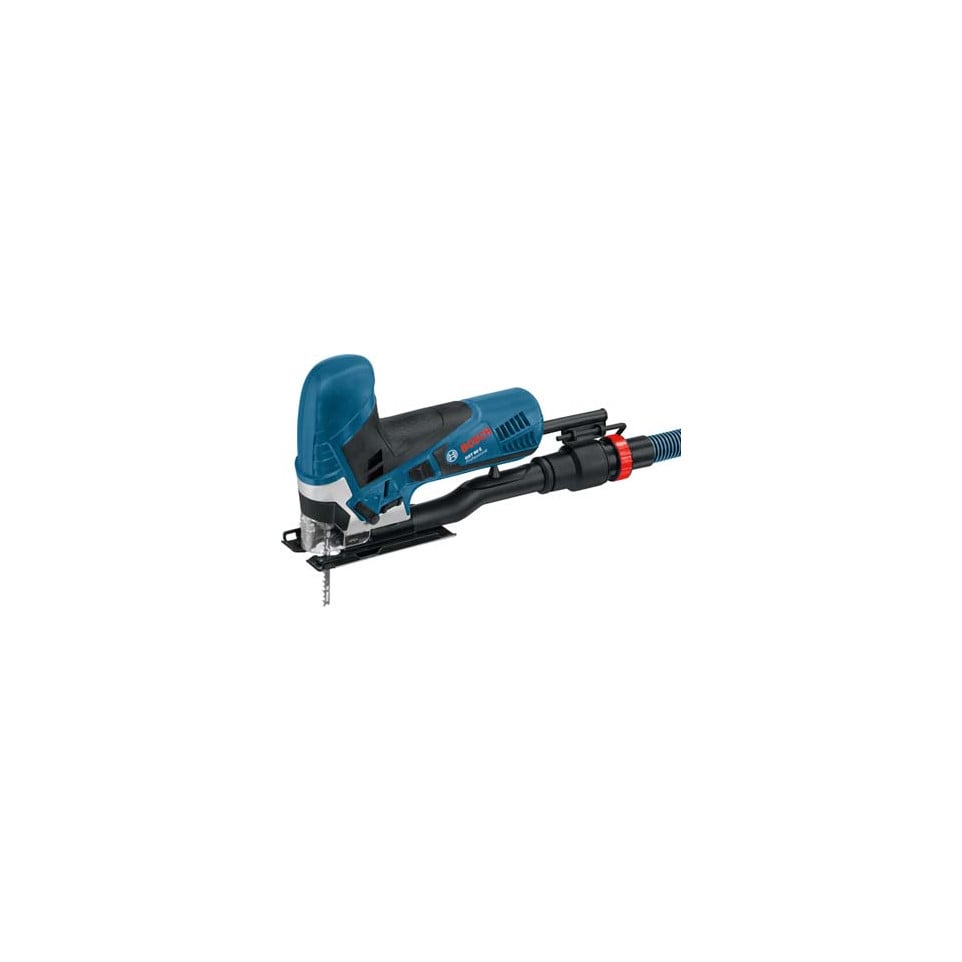

• Compatible with Bosch vacuum systems for enhanced dust management.

Usage

Simply fit the desired blade using the quick-change SDS system, select the pendulum setting based on the material and finish required, and guide the tool along marked lines. The blower ensures a clear view, and dust extraction can be attached for cleaner operation. Adjust speed and orbital action as needed for different materials and cut types.

FAQ

1. What materials can the Bosch GST 90E cut? The jigsaw is suitable for wood (up to 90 mm thick), aluminum (up to 20 mm), and steel (up to 10 mm).

2. How do I change the blade? The SDS system allows for fast, tool-free blade changes—simply release and replace the blade as needed.

3. Can the blower be deactivated for dust extraction? Yes, the chip blower can be switched off so you can attach a vacuum for efficient dust removal.

4. Is the jigsaw suitable for both straight and curved cuts? Yes, its four-position pendulum action and stable design make it effective for both straight lines and curves.

5. What is the weight of the GST 90E? The tool weighs 2.3 kg, balancing portability with stability for comfortable use.
