Paumelle Dr Hahn KT-V 6R 22-27mm Ral 8077 / pce
€25.57
In stock
Product

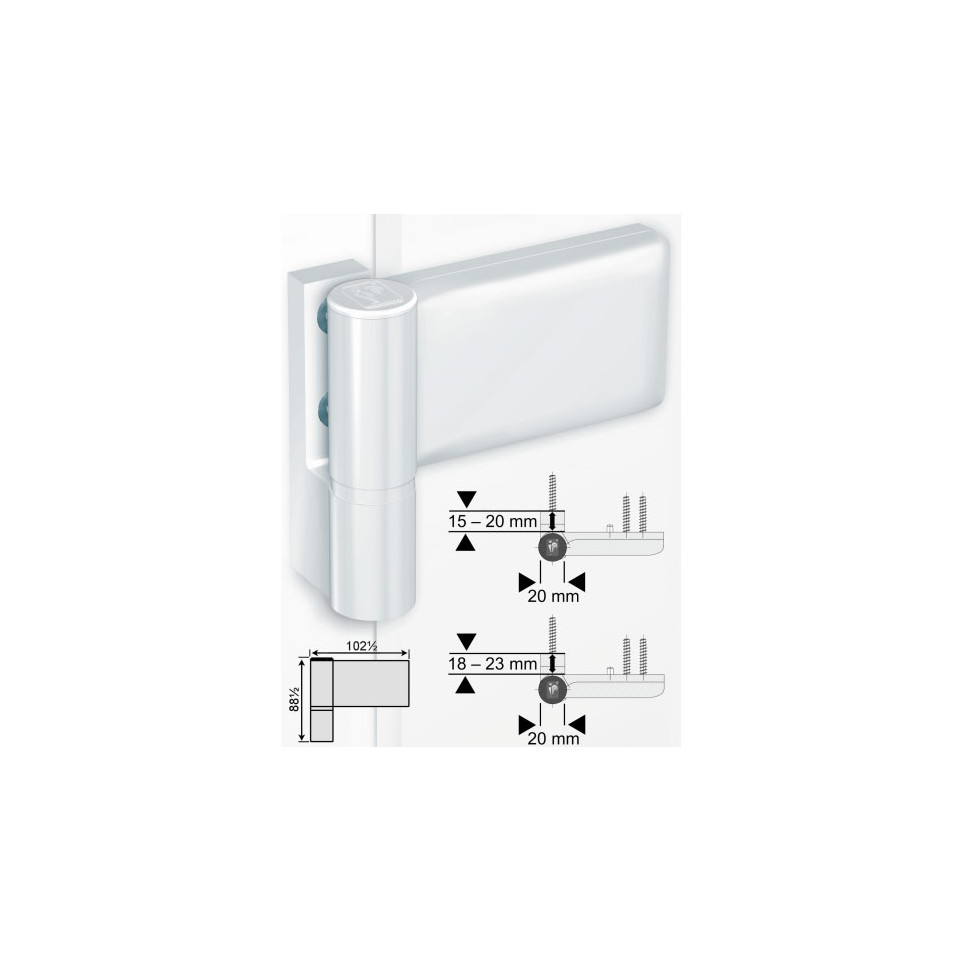

The Dr.Hahn KT-EV hinge in RAL 8003 is engineered for PVC doors with an overlay of 15–20 mm. It is designed for direct fastening on both the frame and leaf, suitable for residential and commercial door applications.
Specifications
- Constructed from extruded aluminium with a stainless steel pin and self-lubricating PVC bushings
- Maintenance-free bearing point, corrosion-resistant, and certified to EN 1935:2002, hinge class 13
- Allows continuous 6-axis adjustment: horizontal ±5 mm, vertical +3 mm / –2.5 mm, gasket pressure in overlay with extra 0.5 mm per direction
- Supports door leaf weights up to 120 kg with two hinges
- Universally applicable for inward and outward opening doors; tested on burglar-resistant doors
Usage
The KT-EV hinge is installed directly on the door frame and sash, enabling precise, effortless adjustments while the door is mounted. Technicians can independently adjust alignment in six directions for optimal function and sealing performance in both new installations and maintenance.
FAQ
-
What door materials are compatible with the KT-EV hinge?
The KT-EV hinge is designed specifically for PVC doors. -
How much weight can the hinge support?
It can support door leaves weighing up to 120 kg when using two hinges. -
Is the hinge handed or reversible?
The hinge is universal and can be used on both left- and right-opening doors. -
Does the hinge require maintenance or lubrication?
It is maintenance-free due to self-lubricating, wear-resistant materials. -
How are adjustments made after installation?
All six adjustments—horizontal, vertical, and gasket pressure—can be made with the door in place, making alignment simple and efficient.
