Titan P F9 KT-SV Hinge 80kg 15-20mm Overlap PVC Door / pce
€26.27
In stock
Product

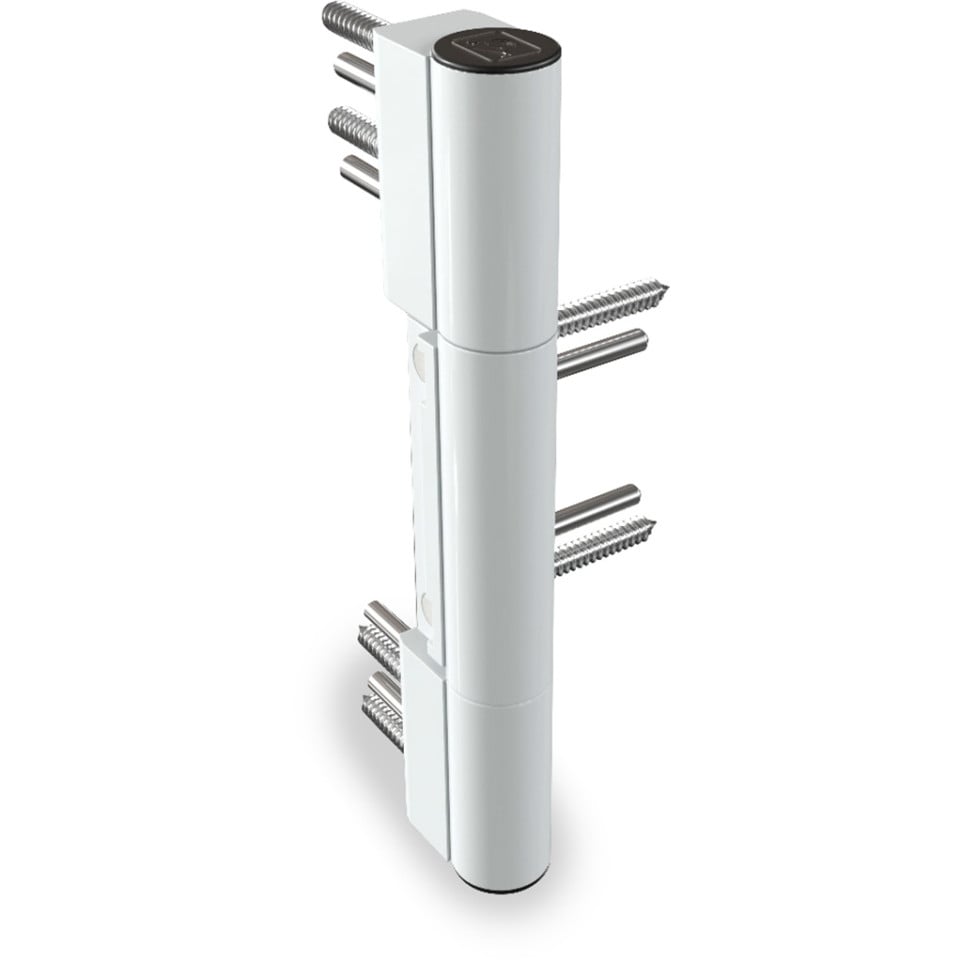

PVC door hinge with three-blade configuration designed for direct screw fastening on both frame and leaf. Suitable for residential or commercial PVC doors, supporting high loads and intensive use.
Specifications
- Design and Material: Made from extruded aluminium for enhanced structural integrity and corrosion resistance.
- Durability and Certifications: CE certified to EN 1935:2002, hinge class 14. SKG 2-star security rating. Service class 4 for very heavy usage. Endures up to 200,000 test cycles at 160 kg door weight.
- Key Features:
- Three blades, 0° angle, EV1 anodized finish.
- Coverage from 16.5 mm to 26 mm for various PVC profiles.
- Six-way adjustability: horizontal (±3 mm), vertical (±3 mm), and seal compression (±0.4 mm).
- Max load capacity: 160 kg depending on profile.
Usage

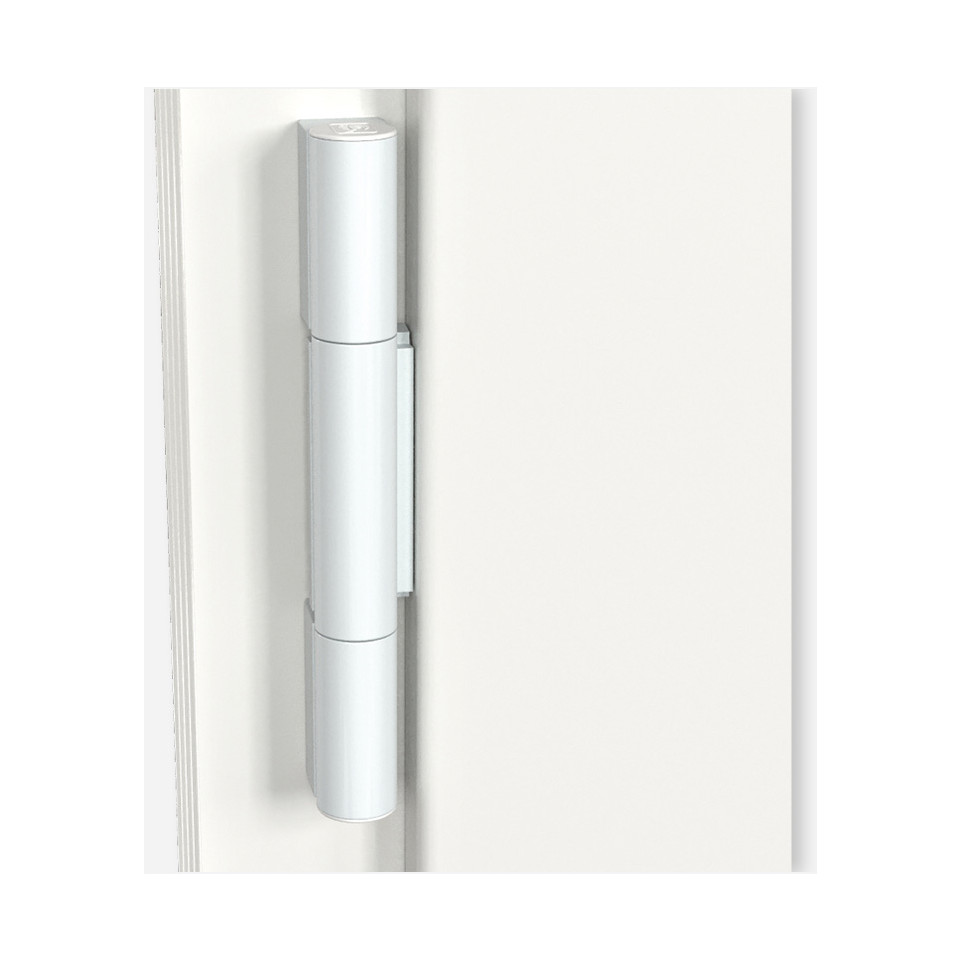

Install the hinge directly onto the door frame and sash using self-tapping screws. Adjust through built-in settings without lifting or removing the door. Fine-tune horizontal, vertical, and seal compression on-site for optimal performance and airtight closure.
FAQ
-
What is the maximum supported door weight? The hinge supports up to 160 kg, depending on the door profile.
-
Is it suitable for both left and right-handed doors? Yes, it can be mounted on either side without modification.
-
How is the hinge adjusted after installation? It allows continuous adjustment in six directions (horizontal, vertical, and seal compression) without having to remove the door.
-
Does this hinge affect the door’s insulation? No, its design maintains the continuity of the seal, preserving insulation values.
-
Which certifications does it have? Certified CE to EN 1935:2002 class 14, and SKG 2-star security rating.
