KT-EV Overlay Hinge 15-20mm RAL 7016 (Black Caps) / 24pcs
€739.82
In stock
Usage

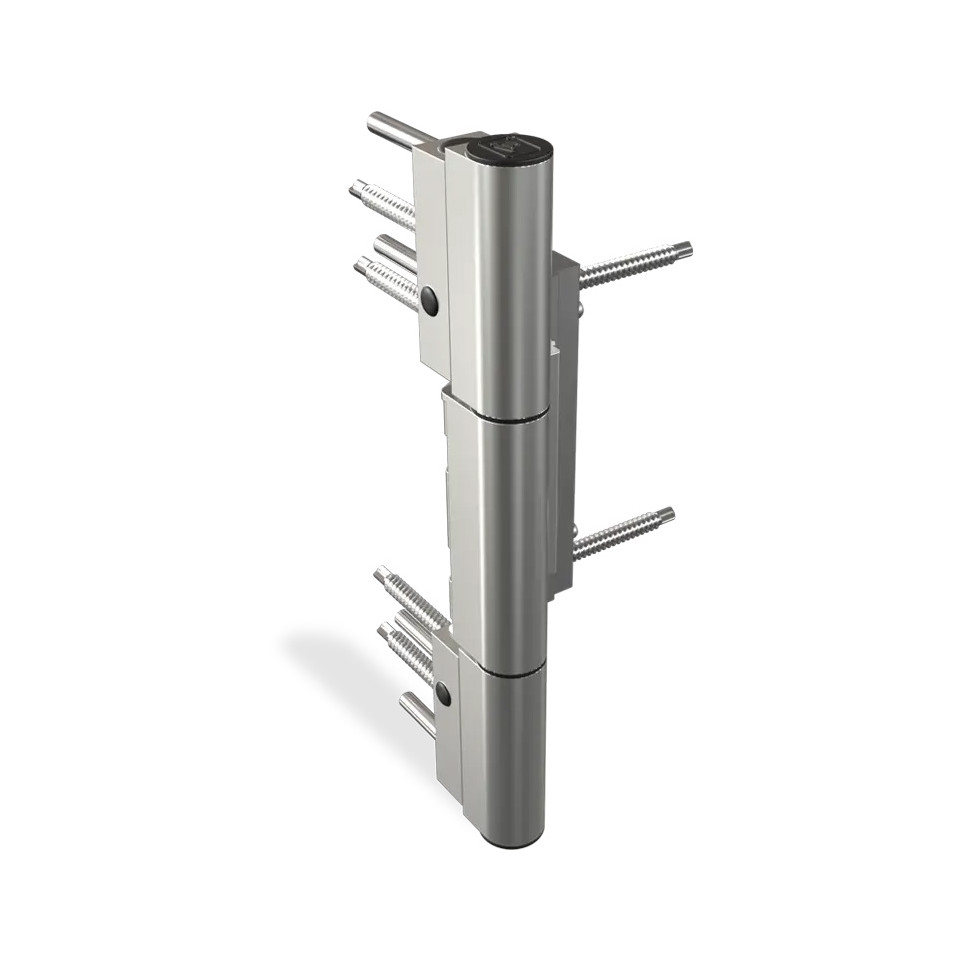

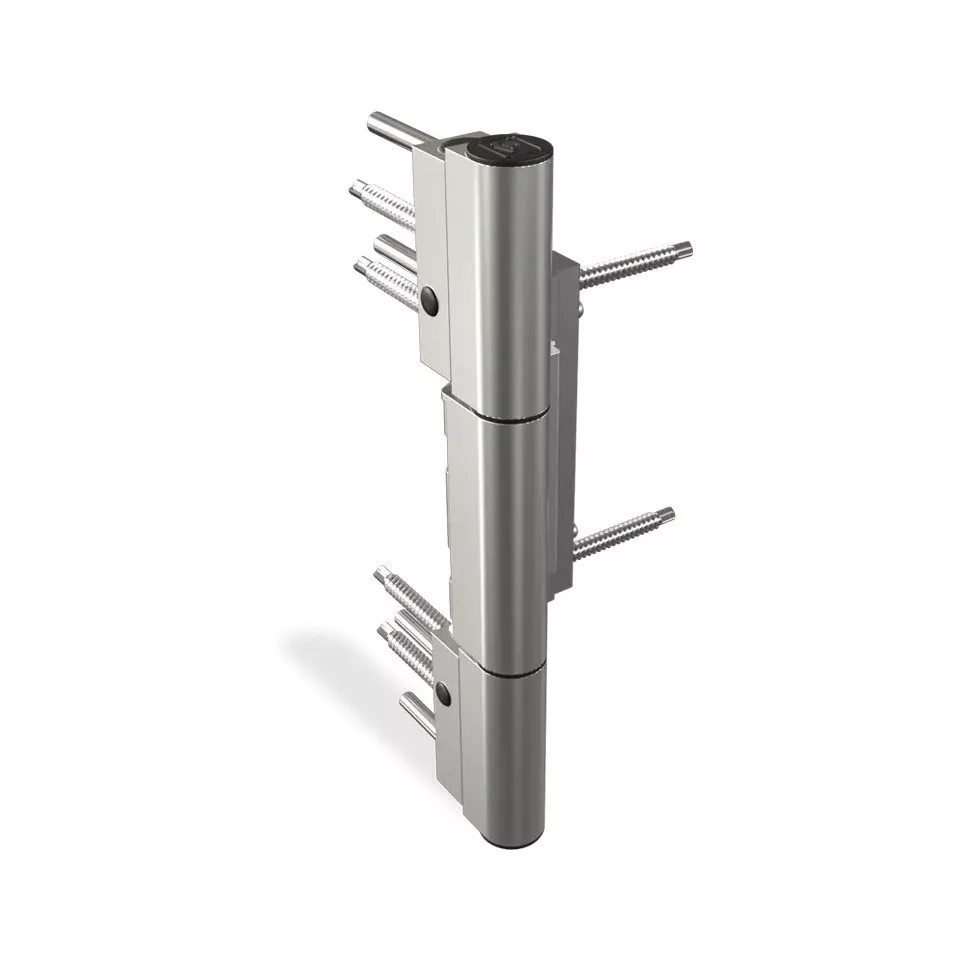

The Dr Hahn KT-RKV 3-lames TITAN P inox look hinge is designed for securely mounting and operating PVC doors in residential or commercial settings, accommodating both left- and right-hand opening configurations.
Advantages
- Supports door weights up to 120 kg, suitable for heavy PVC doors
- Allows a maximum opening angle of 180° for unrestricted access
- Convenient installation and adjustment directly on site without compromising the door seal
- Slim, aesthetic design with an elegant stainless steel (inox) appearance
- No lateral misalignment after adjustment ensures reliable long-term function
Specifications
- Constructed with high-quality weather-resistant materials; visible parts in “inox look” finish compatible with modern designs[1][3]
- Permanently weather-resistant; suitable for demanding climates; CE certification according to EN1935 is in preparation[2]
- Bears loads up to max.120 kg per door leaf; hinge diameter:18 mm; adjustable vertically ±3 mm, horizontally ±3 mm, sealing pressure ±1 mm[1][2]
- Largely pre-assembled for straightforward fitting; compatible with all major PVC profile systems; reversible for left or right-handed use[1][2]
How it works

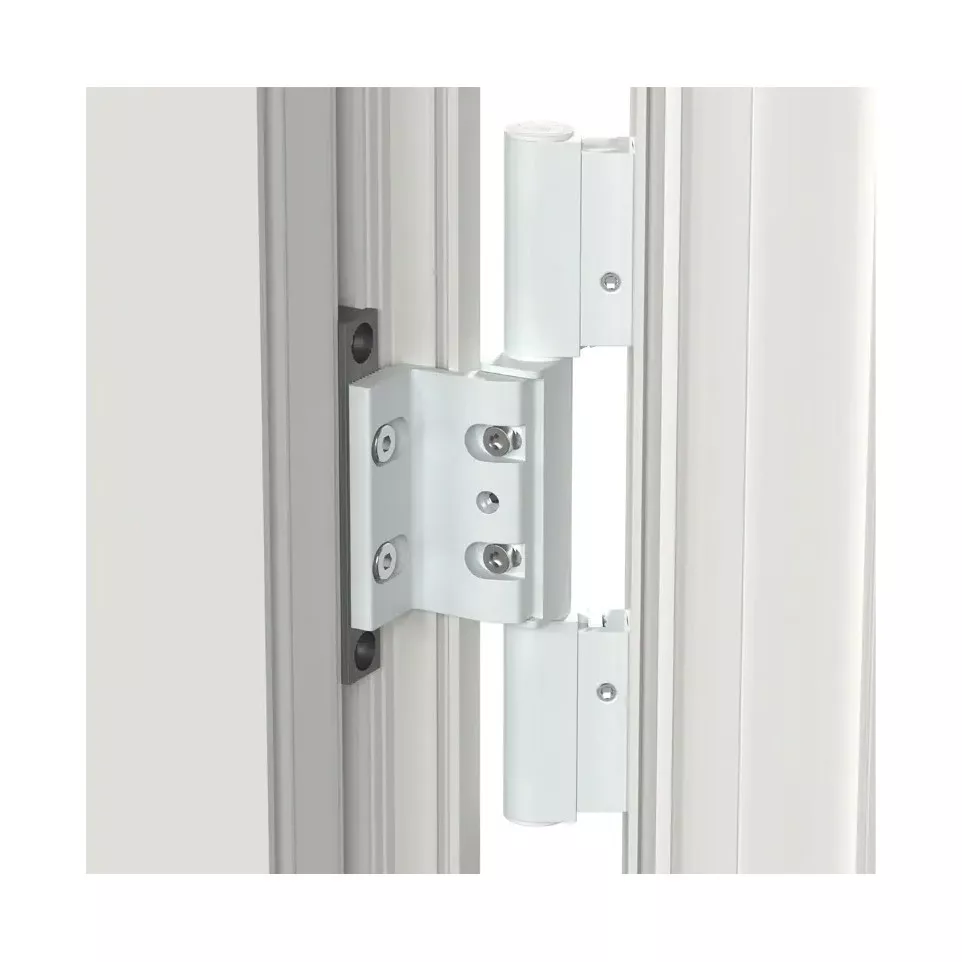

The KT-RKV hinge is fastened into the rebate of the PVC door frame using self-drilling screws. Precise multi-directional adjustability enables optimal alignment during or after installation. The three-piece design allows easy removal and refitting of the door leaf without loosening fastening screws, ensuring convenience during assembly and maintenance.[1][2]
