Usage

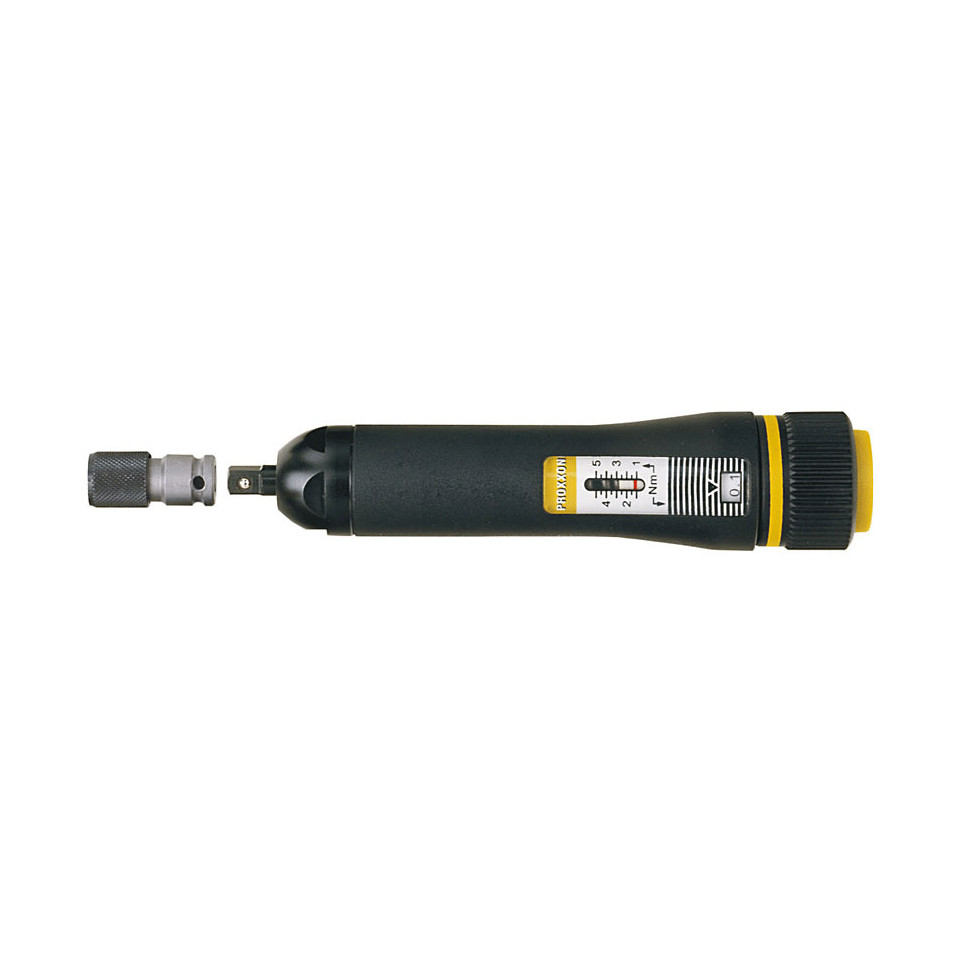

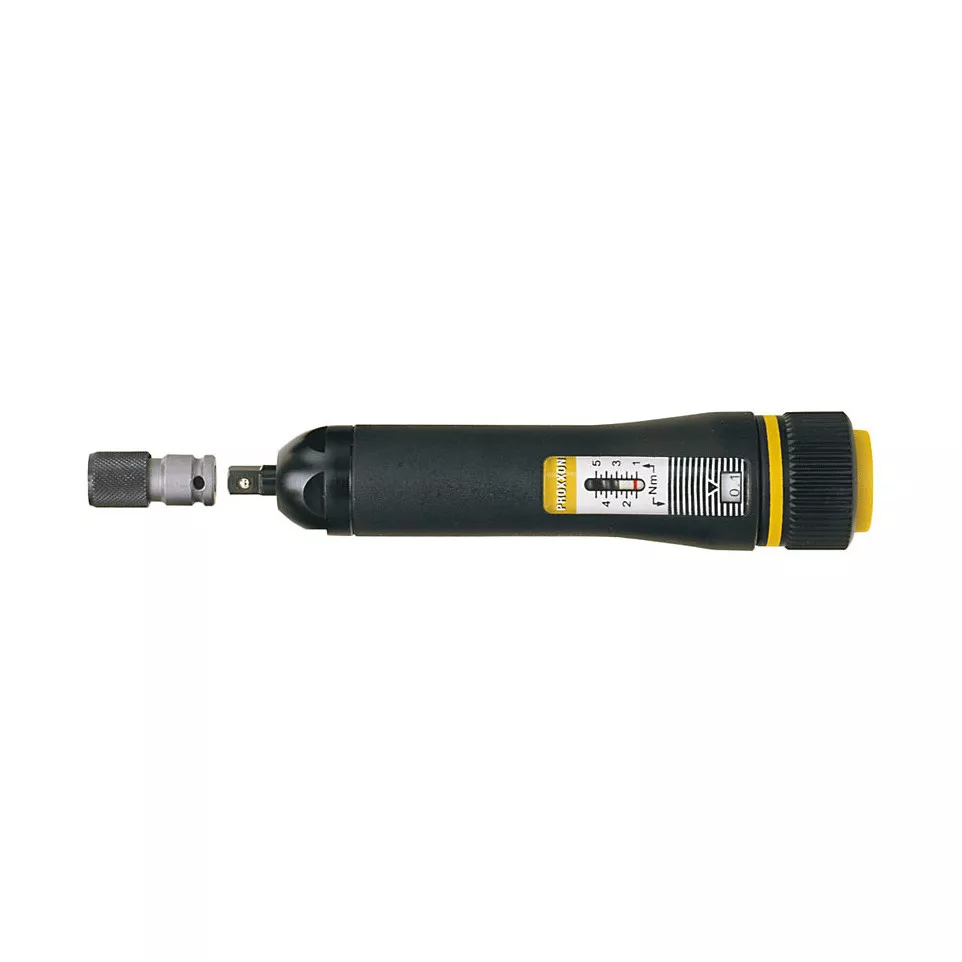

The Proxxon MicroClick MC 5 torque screwdriver is designed for precise tightening of screws and fasteners, particularly in assembly, maintenance, and repair tasks requiring low torque values between 1 and 5 Nm.
Advantages
- Allows accurate torque adjustment from 1 to 5 Nm with a clear analogue scale for control over sensitive applications.
- Automatic quick-release mechanism produces an audible and tactile click when the set torque is reached, preventing overtightening.
- Includes a self-locking adapter with spring sleeve to securely hold standard 1/4" bits and sockets.
- The micro scale offers fine adjustment: one rotation equals precisely 1.0 Nm; the ring enables settings in increments of just 0.10 Nm.
- Total length of only 165 mm makes it suitable for confined working spaces; accuracy rated at ±6% may be less suitable where tighter tolerances are required.[1][2][3][4]
Specifications
- Tough construction featuring a robust body with precise knurled ring for torque setting; compatible with both sockets (1/4" square drive) and standard bits (self-locking adapter included).
- No special ESD or VDE insulation; meets general professional hand tool standards but not rated for live electrical work.[3]
- Torque range: adjustable from 1 Nm to 5 Nm (increments as small as 0.10 Nm). Measurement accuracy: ± 6%. Overall length: 165 mm.
- Differentiators include automatic quick-release "click," compact size, micro-adjustment scale, lockable setting mechanism, visible graduation on the display, supplied storage box.[1][2][4]
How it works
Select your desired torque by turning the knurled ring at the handle’s end and lock it in position. Attach your chosen bit or socket using either the square drive or included adapter. Tighten until you hear and feel a distinct click—this signals that your preset torque has been reliably achieved.[1][4]
