Roto Frank Curved Connector 1420 "E"++ / piece
€27.30
In stock
Product

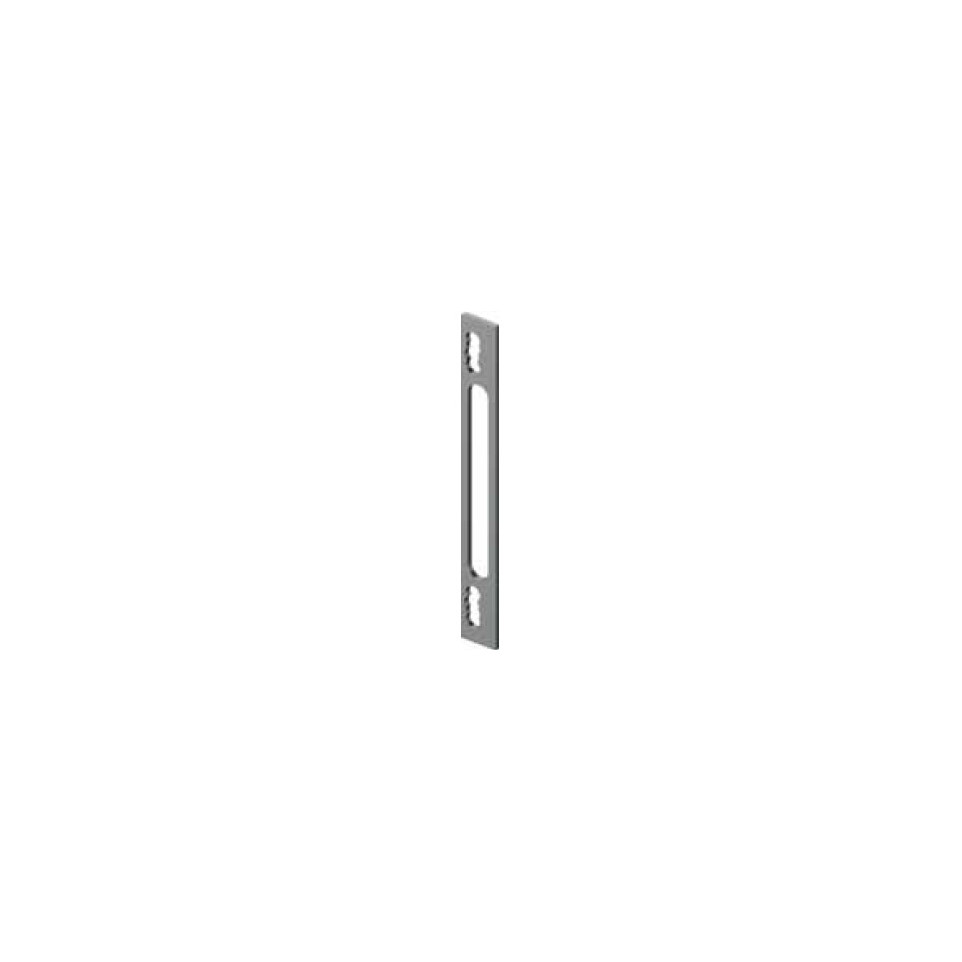

Reinforcement back plate for Rotoline fork handle, designed for integration with ROTO fittings on wood, PVC, or aluminium frames. Compatible with both fork and square spindle handle systems, ensuring secure mounting and reliable long-term performance.
Specifications
- Constructed from standard aluminium for durability and corrosion resistance
- Compatible with specialized handles for aluminium and standardized square spindles (7 x 7 mm) for PVC and wood
- Enables robust handle attachment and smooth operation
- Supports conversion between fork and square spindle handle setups with appropriate adaptation kit
- Engineered for use with Roto’s multipoint window and door hardware
Usage
This reinforcement plate is mounted behind the Rotoline handle to increase structural support and distribute mechanical loads during operation. For fork systems, it directly engages with the driver. For square spindle systems, it requires a square spindle adapter instead of the fork driver, with the spindle cut to a precise length of 24 mm.
FAQ
-
What materials is the reinforcement plate made from?
The plate is fabricated from standard aluminium, offering strength and resistance to corrosion. -
Can this plate be used on both aluminium and PVC or wood frames?
Yes, it is suitable for use with aluminium, PVC, and wood when integrated into corresponding ROTO handle systems. -
What handle systems is it compatible with?
It supports both fork-type handles for aluminium and square spindle (7 x 7 mm) handles for PVC and wood. -
Is any adaptation required for use with square spindles?
Yes, a spindle adapter is needed instead of the fork driver, and the spindle must be cut to 24 mm length. -
What is the main purpose of the reinforcement plate?
It provides mechanical reinforcement during handle actuation, improving durability and stability of the assembly.
