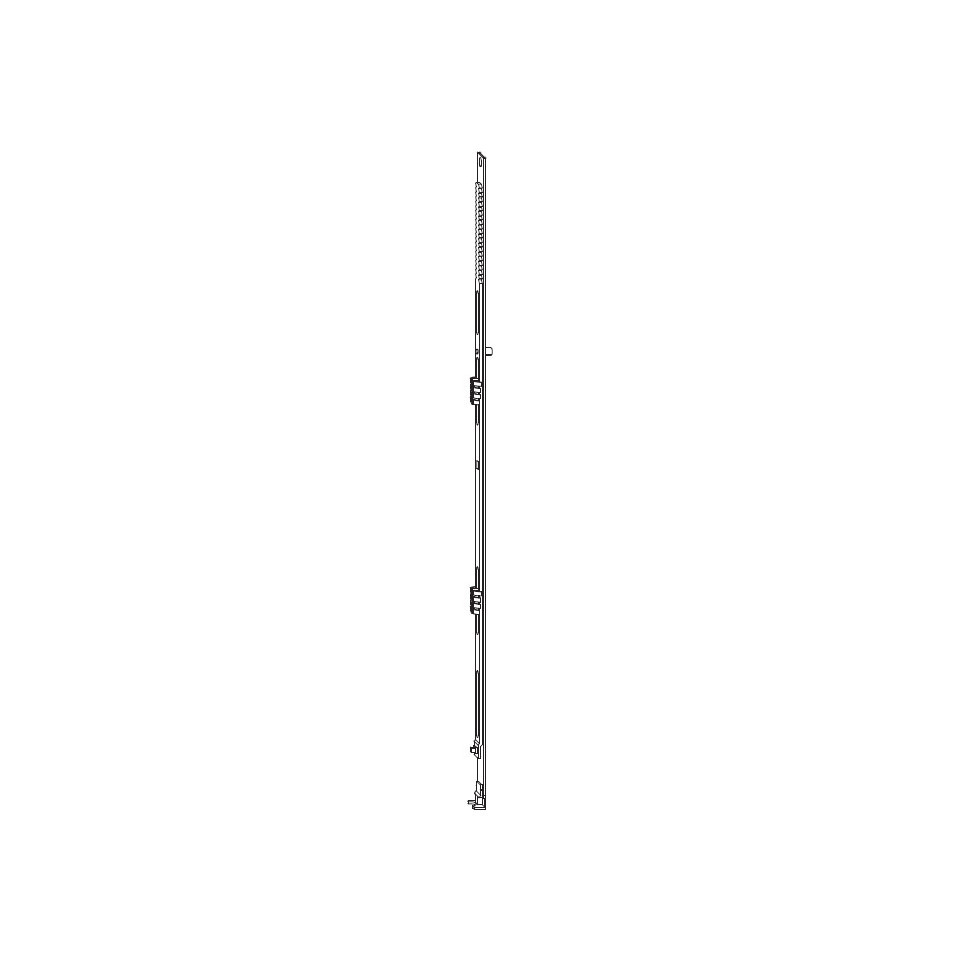

Roto Frank Curved Connector 1420 "E"++ / piece
€27.30
In stock
Product
The SAV Jonction cintré 1420 "E"++ is a specialized component from Roto, designed for integration with tilt-and-turn hardware systems in wood, PVC, and aluminium joinery. It supports frame heights from 1501 to 1700 mm and is suitable for curved and trapezoidal sash constructions.
Specifications
- Designed with robust materials for compatibility with ROTO fittings on wood, PVC, and aluminium windows and doors
- Engineered for durability and reliable long-term performance within standard ventilation and sash-opening systems
- Supports a maximum sash weight of 80 kg, ensuring secure operation for large and custom-shaped sashes

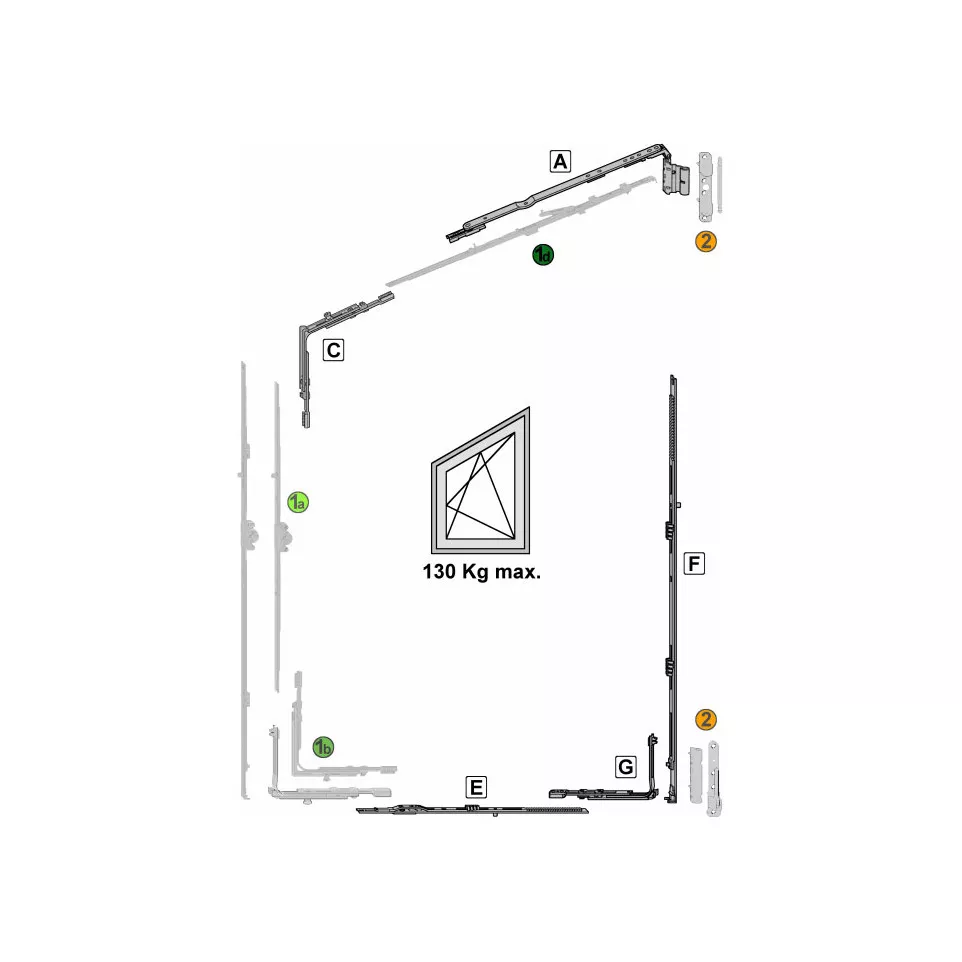

- Features identification marking: pieces for curved and trapezoidal sashes are indicated by a letter in a square
- Shadowed parts on diagrams are included with tilt-and-turn hardware sets; consult circled numbers in technical diagrams
Usage
This component is used as a junction fitting within Roto tilt-and-turn hardware systems for arched or trapezoidal windows and doors. Installers integrate the SAV Jonction cintré during assembly, allowing secure movement of sashes while maintaining system performance and weight limits. For precise placement, refer to product diagrams and installation manuals.
FAQ
-
What types of windows or doors is this product compatible with?
- It is designed for use with wood, PVC, or aluminium windows and doors, especially those with curved or trapezoidal sashes.
-
What is the maximum sash weight supported?
- The maximum sash weight is 80 kg.
-
In what frame height range can the junction be installed?
- It is suitable for frame heights between 1501 mm and 1700 mm.
-
Are there any special markings or instructions to identify compatible parts?
- Pieces for curved and trapezoidal sashes are marked with a letter in a square on technical diagrams.
-
Does this product come with other related hardware?
- The shaded pieces are included with tilt-and-turn hardware sets; reference the circled numbers in manufacturer diagrams for details.
