Usage
This white lacquered angle pivot is designed for integration in Roto ALU 540i hardware systems for wood, PVC, or aluminium windows and doors, supporting precise sash movement in various profile configurations.
Advantages
- Simplifies installation thanks to its modular design and preassembled components.
- Compatible with a wide range of aluminium profiles and adaptable to most Belgian systems (Aliplast, Reynaers, Van Beveren, WICONA).
- Allows lateral and vertical adjustments while the sash remains connected to the frame.
- Non-handed design—usable on both left and right applications for greater flexibility.
- No visible screws; flush-mounting delivers an unobtrusive aesthetic. For SAPA RC-SystemS profiles, specific versions are required[1][2].
Specifications
- Lacquered finish in white RAL 9016 for durability and a clean appearance.
- Bearing construction features robust materials engineered for intensive use cycles.
- Supports sashes up to max. weight of either 90 kg or up to approximately 130 kg depending on configuration; suitable for width (LFF) between approx. 405–600 mm and height (HFF) from approx. 510–1200 mm[3][2].
- Differentiating feature: pre-assembled clamp-strip reduces installation time; hinge-side modularity aids logistic efficiency[1].
How it works

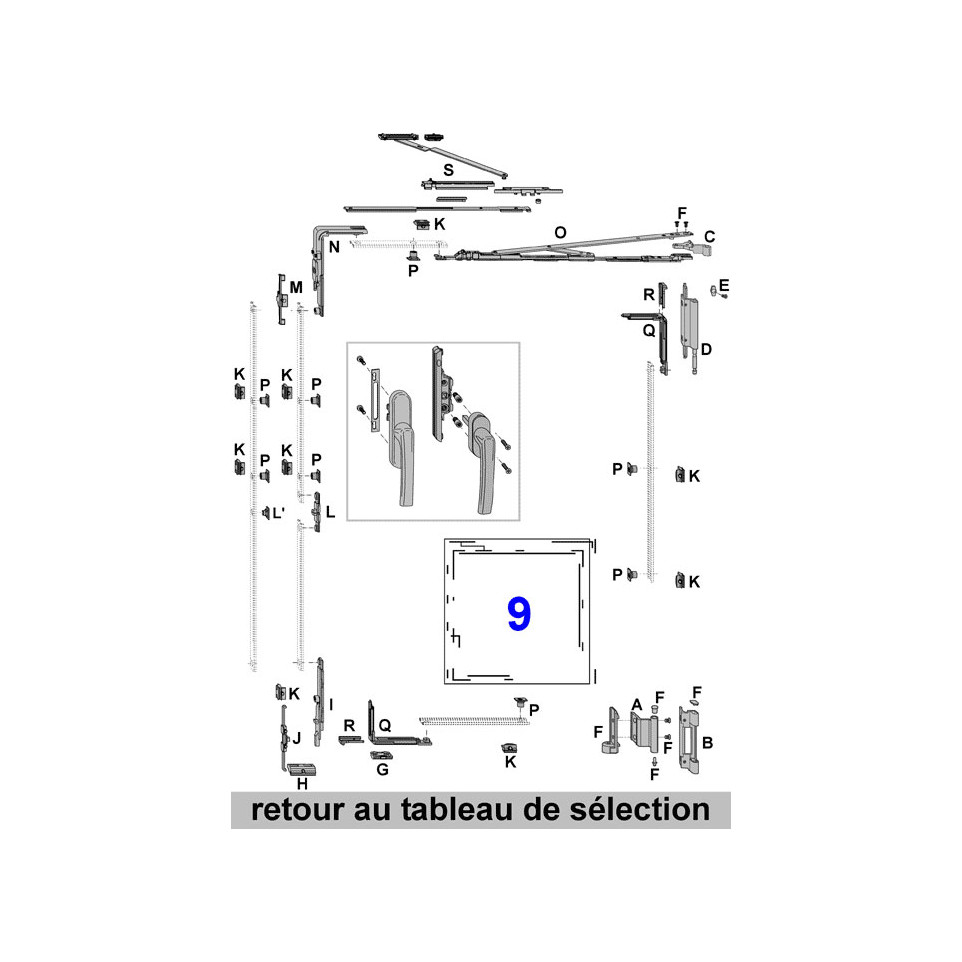

The angle pivot installs into the corner of the window or door frame within the Roto ALU 540i system. It enables smooth pivoting action while securely supporting sash weight during operation, ensuring reliable movement throughout its service life[1][3].
