Usage

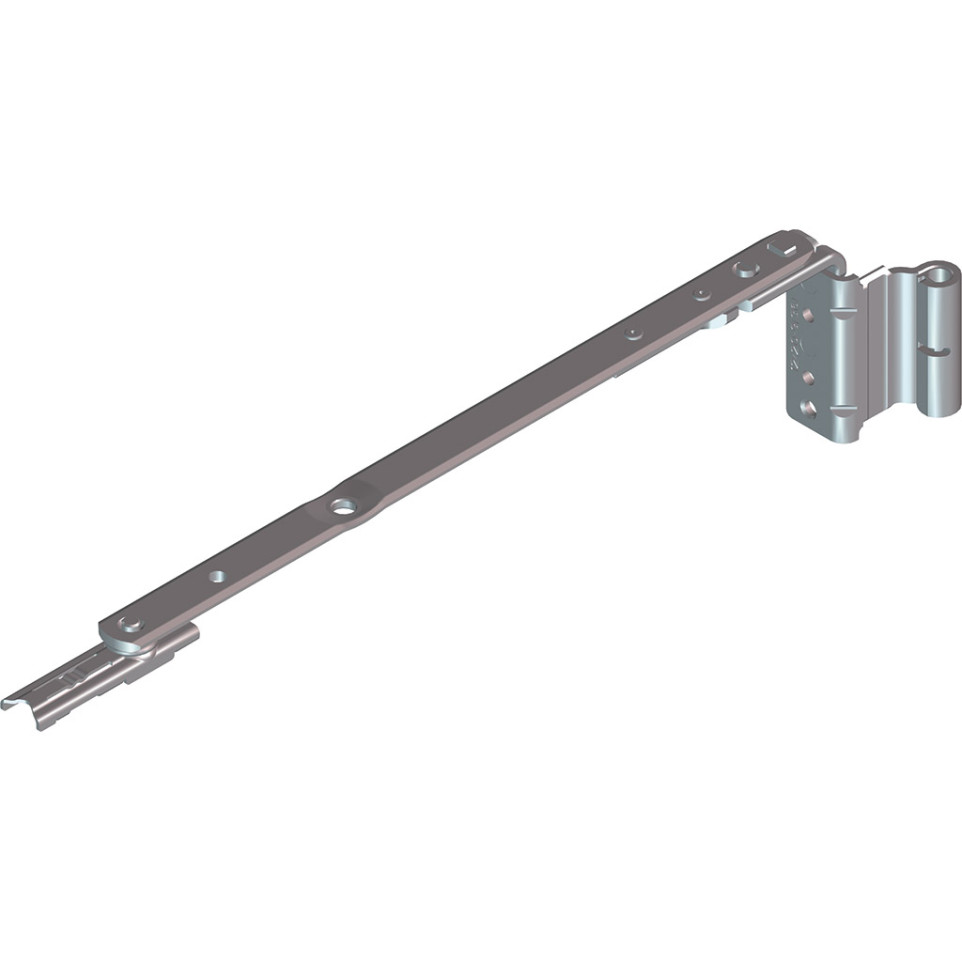

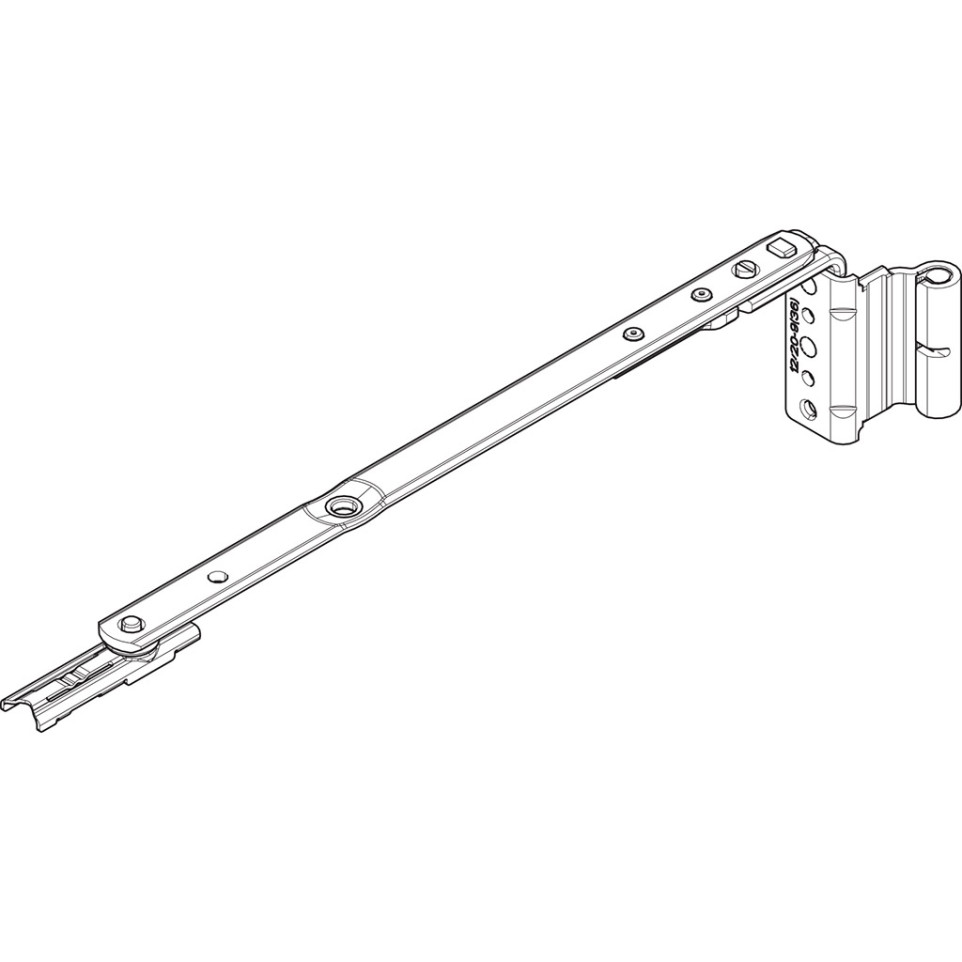

The SAV Compas 250 Roto A et K 12/20-9 is designed for use as a tilt-and-turn window fitting, compatible with wood, PVC, and aluminium frames. It supports secure sash operation in residential and commercial windows.
Advantages
- Compatible with multiple frame materials: wood, PVC, and aluminium
- Supports sash weights up to 130 kg for robust applications
- Allows window opening up to 180° for maximum accessibility
- Offers three-dimensional adjustments (height, width, pressure) for precise installation
- Slim profile minimizes lateral and vertical space requirements on frames
Specifications
- Design: Modular compas system suitable for Roto A (wood/steel/PVC) and Roto K (PVC); lateral clearance of approximately 20 mm; vertical clearance from top: Roto K -1.5 mm; Roto A -0 mm; lower clearance varies by model.
- Durability/Certifications: Engineered to meet demanding safety standards associated with the ROTO NT system; corrosion-resistant construction ensures long life in varied environments[6][10].
- Performance: Maximum sash weight supported is up to 130 kg; adjustable height ±3 mm (Roto A), width ±2 mm (Roto A), pressure adjustment ±½ mm[4]. Sash opening possible up to a full span of 180°.
- Differentiating Features: Three-dimensional adjustability enables optimal fitment during installation or maintenance. Compatible with both surface-mounted pivots and application-specific brackets as required by frame material.[4][6]
How it works
The compas fitting mechanically links the sash to the frame via pivot points and support arms. Adjustments are made using integrated screws for precise alignment in three dimensions. When installed correctly, it enables smooth tilt-and-turn action while ensuring reliable security and ventilation control.[4][6]
