ROTO Flat Cap for K Pivot Brown R04.4 R.230421 per piece
€0.44
In stock
Usage

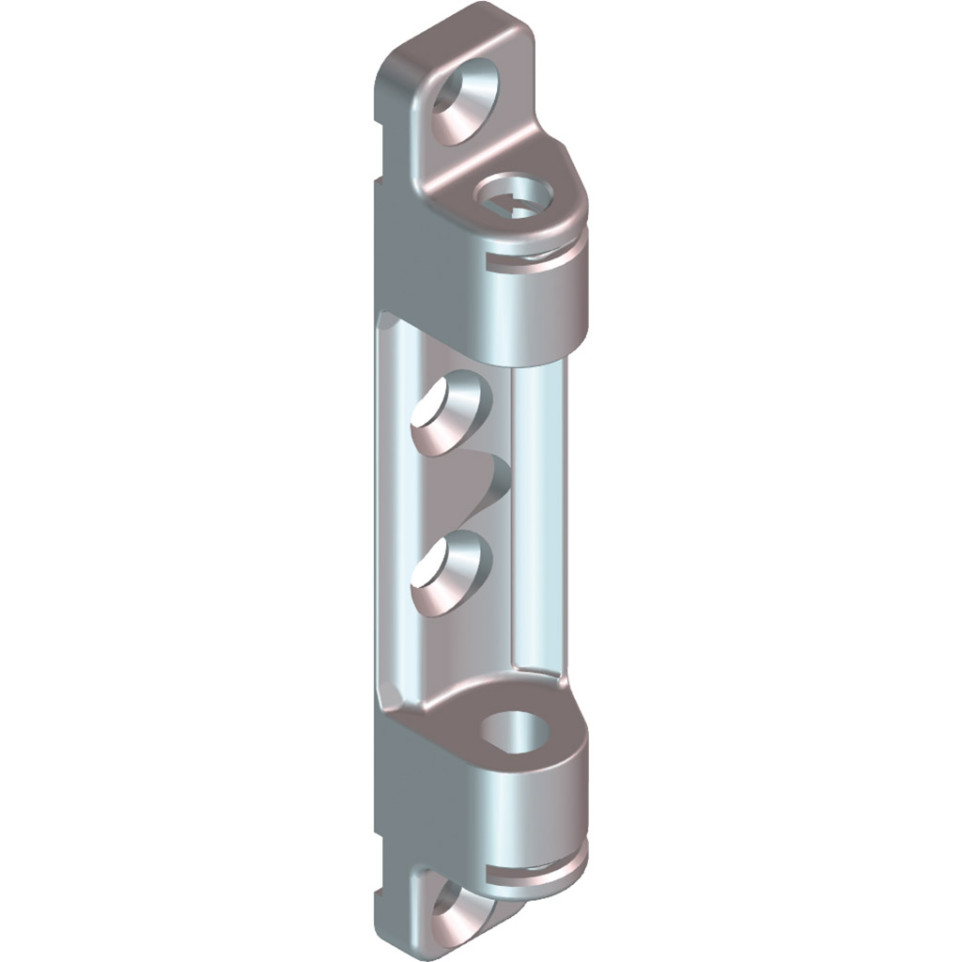

The SAV Palier de compas with Ø 3 mm support pins is designed for mounting and supporting the opening arms in Roto A and K hardware systems. It is suitable for tilt-and-turn or turn-only windows in wood, PVC, or aluminium frames.
Advantages
- Compatible with Roto A (wood/steel/PVC) and Roto K (PVC) window systems
- Supports sash weights up to 130 kg (Roto A) or up to 100/130 kg (Roto K)
- Allows reversible installation for left- or right-hand operation
- Provides precise three-dimensional adjustments: height, width, and pressure
- Permits sash opening angles up to 180°, offering maximum ventilation flexibility
Specifications
- Moulded support with Ø 3 mm pins; made for durability under frequent use
- Suits wood, PVC, or aluminium frames; tested according to industry standards for window hardware performance and longevity[5][6]
- Bearing system accommodates a maximum sash weight of up to: - Roto A: 130 kg - Roto K: up to either 100 kg or optionally reinforced versions at 130 kg[5][6]
- Lateral clearance: approx. 20 mm (K), approx. 20.5 mm (A); top clearance approx. 1.5 mm (K), none required on A; bottom clearance varies by version[5]
- Three-dimensional adjustment capability: - Height: +2 / –2 mm ~ +3 / –3 mm - Width: +4 / –2 mm ~ +2 / –2 mm - Pressure on gasket: +1 / –1 mm ~ +0.5 / –0.5 mm[5]
- Tilt First function available depending on handle configuration; prioritizes tilting before turning action on select models[5]
- Sash opening possible up to a full flat-open position of approximately 180° depending on hinge positioning[5]
How it works
The palier de compas installs onto the window frame as part of the tilt-and-turn mechanism’s articulation points. It acts as a bearing surface for the compass arm pin—enabling controlled pivoting so users can smoothly operate sashes in both tilt and turn positions while maintaining alignment and load distribution.
