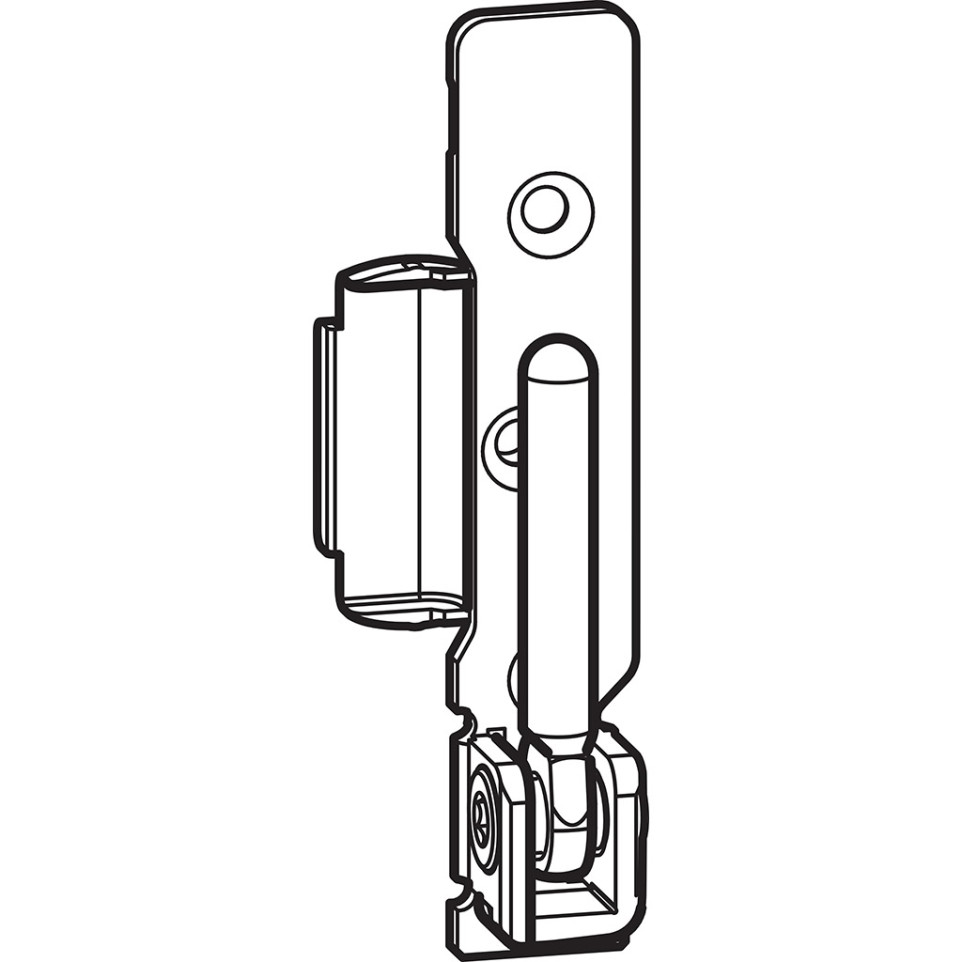

Roto NX Male Pivot for Timber Frame NT/E5 Set 4/15(18)-9 - 12/18-9(13) Left / piece

Roto NX Male Pivot for Timber Frame NT/E5 Set 4/15(18)-9 - 12/18-9(13) Left / piece
Roto NX Male Pivot for Timber Frame NT/E5 Set 4/15(18)-9 - 12/18-9(13) Left / piece
Roto NX Male Pivot for Timber Frame...
Roto NX Male Pivot for Timber Frame...

Estimated delivery date :  Friday 24 July
€7.52 HT
In stock

Ref : FGT-160325

Variantes

Female Pivot Hinge for Wooden Frame to be Installed in Groove E5 12/18-13 Left / pc Female Pivot Hinge for Wooden Frame to be Installed in Groove E5 12/18-13 Left / pc Roto Male Pivot E5 for Timber Frame Set 4/15(18)-9 - 12/20-9(13) Left / pc Roto Male Pivot E5 for Timber Frame Set 4/15(18)-9 - 12/20-9(13) Left / pc Roto Male Pivot E5 for Timber Frame Set 4/15(18)-9 - 12/20-9(13) Right / pc Roto Male Pivot E5 for Timber Frame Set 4/15(18)-9 - 12/20-9(13) Right / pc Roto Male Pivot E5 for Wood Frame Set with 2 Pins Ø 7mm, Set 12/18-9(13) Left / pc Roto Male Pivot E5 for Wood Frame Set with 2 Pins Ø 7mm, Set 12/18-9(13) Left / pc Roto Male Pivot E5 for Wooden Frame Set with 2 Pins 7mm Diameter 12/18-9(13) Right / pc Roto Male Pivot E5 for Wooden Frame Set with 2 Pins 7mm Diameter 12/18-9(13) Right / pc Roto NX Male Pivot Hinge E5 for Wooden Sash Set 4/15(18)-9 - 12/18-9(13) Right / pc Roto NX Male Pivot Hinge E5 for Wooden Sash Set 4/15(18)-9 - 12/18-9(13) Right / pc
Quantity

Add to your shopping List

You must be logged


Description

Usage

The SAV Pivot mâle NX T/NT E5 is designed for use in timber window frames, enabling secure and reliable rotation or tilt-and-turn functions on sashes compatible with ROTO fitting systems for wood, PVC, and aluminium profiles.

Advantages

  • Compatible with multiple sash profile systems (4/15-9, 4/18-9, 12/18-9, and 12/18-13) for wood constructions
  • Allows sash opening up to 180° for enhanced accessibility and ventilation
  • High load capacity supporting sashes up to 150 kg
  • Pivots and supports can be pre-fitted prior to full frame assembly to streamline installation workflows
  • The shallow installation depth (5 mm) reduces thermal bridging and condensation risk at the pivot point

Specifications

  • Narrow design compass bearings; crafted from robust metal alloys suitable for heavy-duty window applications[3][1]
  • Treatment of the frame surface is possible before final chassis assembly; meets modern construction standards for durability[3]
  • Bearing width: lateral clearance of only 21 mm; bottom clearance: just 5 mm; maximum sash weight: up to150 kg;sash opening angle: up to180°[3][6][9]
  • No thermal bridge between bearing support and weather protection due to limited drilling depth (5 mm); condensation buildup reduced at pivots[3]

How it works

This male pivot is installed into pre-drilled timber frames as part of a ROTO tilt-and-turn or rotary window system. After fixing into position, it allows the connected sash or vent panel to rotate smoothly on the hinge axis while meeting high durability requirements.

See more

Product Details

Brand Roto
Description D. pivot mâle
Opening direction gauche
Reference equivalent to that of the original manufacturer E 5 12/18-9 et 13
FGT-160325
New
