Roto Male Pivot E5 for Wooden Frame Set with 2 Pins 7mm Diameter 12/18-9(13) Right / pc

Roto Male Pivot E5 for Wooden Frame Set with 2 Pins 7mm Diameter 12/18-9(13) Right / pc
Roto Male Pivot E5 for Wooden Frame Set with 2 Pins 7mm Diameter 12/18-9(13) Right / pc
Roto Male Pivot E5 for Wooden Frame...
Roto Male Pivot E5 for Wooden Frame...

Estimated delivery date :  Tuesday 9 June
€6.40 HT
In stock

Ref : FGT-160328

Variantes

Female Pivot Hinge for Wooden Frame to be Installed in Groove E5 12/18-13 Left / pc Female Pivot Hinge for Wooden Frame to be Installed in Groove E5 12/18-13 Left / pc Roto Male Pivot E5 for Timber Frame Set 4/15(18)-9 - 12/20-9(13) Left / pc Roto Male Pivot E5 for Timber Frame Set 4/15(18)-9 - 12/20-9(13) Left / pc Roto Male Pivot E5 for Timber Frame Set 4/15(18)-9 - 12/20-9(13) Right / pc Roto Male Pivot E5 for Timber Frame Set 4/15(18)-9 - 12/20-9(13) Right / pc Roto Male Pivot E5 for Wood Frame Set with 2 Pins Ø 7mm, Set 12/18-9(13) Left / pc Roto Male Pivot E5 for Wood Frame Set with 2 Pins Ø 7mm, Set 12/18-9(13) Left / pc Roto NX Male Pivot for Timber Frame NT/E5 Set 4/15(18)-9 - 12/18-9(13) Left / piece Roto NX Male Pivot for Timber Frame NT/E5 Set 4/15(18)-9 - 12/18-9(13) Left / piece Roto NX Male Pivot Hinge E5 for Wooden Sash Set 4/15(18)-9 - 12/18-9(13) Right / pc Roto NX Male Pivot Hinge E5 for Wooden Sash Set 4/15(18)-9 - 12/18-9(13) Right / pc
Quantity

Add to your shopping List

You must be logged


Description

Usage

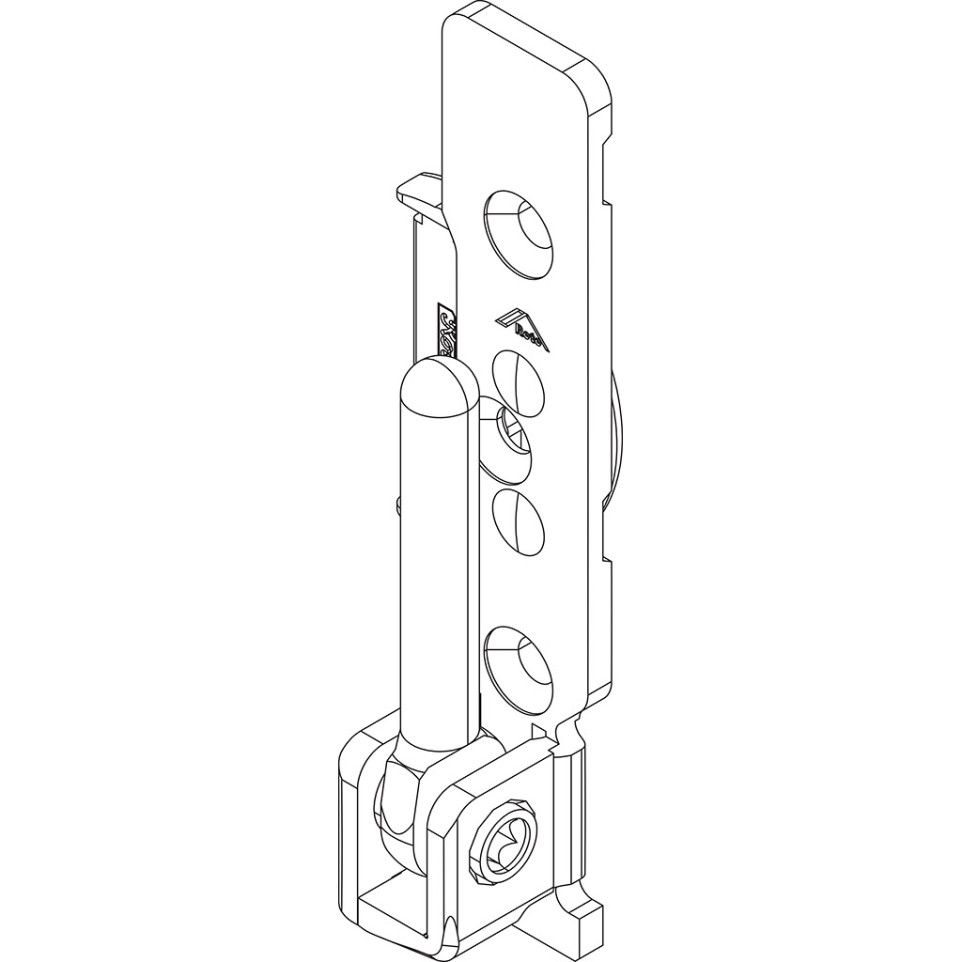

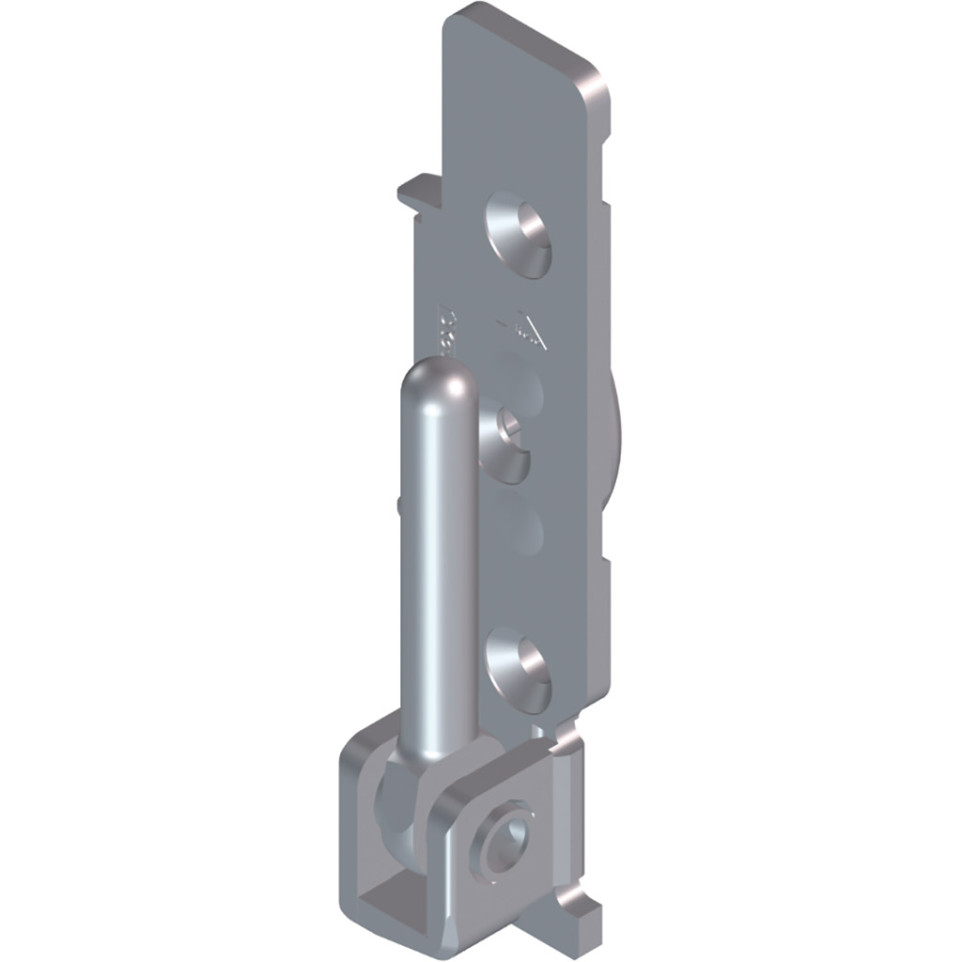

The SAV Pivot mâle E5 is used as a pivot fitting for timber window frames, supporting sash rotation. It is suitable for right-side installation on wooden windows and compatible with ROTO systems for wood, PVC, and aluminium frames.

Advantages

  • Optimised for timber window sashes in tilt-and-turn or turn-only applications.
  • Supports heavy loads up to 150 kg per sash, ensuring robust performance.
  • Narrow pivot design allows installation in limited lateral spaces (21 mm).
  • Equipped with two Ø7 mm pins providing stable and secure mounting.
  • Lateral clearance requirements enable flexibility during renovation or new installations; minor drawback: limited to specific frame clearances (jeu 12/18-9(13)).

Specifications

  • Narrow chassis pivot constructed for wood frames; steel components ensure longevity and structural stability.
  • Satisfies common European standards for window hardware; designed within ROTO’s proven NT/NX system compatibility range.[1][8]
  • Maximum supported sash weight: up to 150 kg; pin diameter: Ø7 mm; lateral clearance: min. lateral space required is only 21 mm.[1]
  • Differentiated by its minimal bottom clearance of just 5 mm and ability to fit narrow profile windows where space is restricted.[1]

How it works

The pivot fitting mounts into the timber sash frame using two robust pins. Once installed, it acts as a durable rotational axis allowing the window sash to be opened or closed smoothly within precise tolerances maintained by the specified clearances.

See more

Product Details

Brand Roto
Description D. pivot mâle + plots Ø 7¼ mm de centrage
Opening direction droit
Reference equivalent to that of the original manufacturer E 5 12/18-9 et 13
FGT-160328
New
