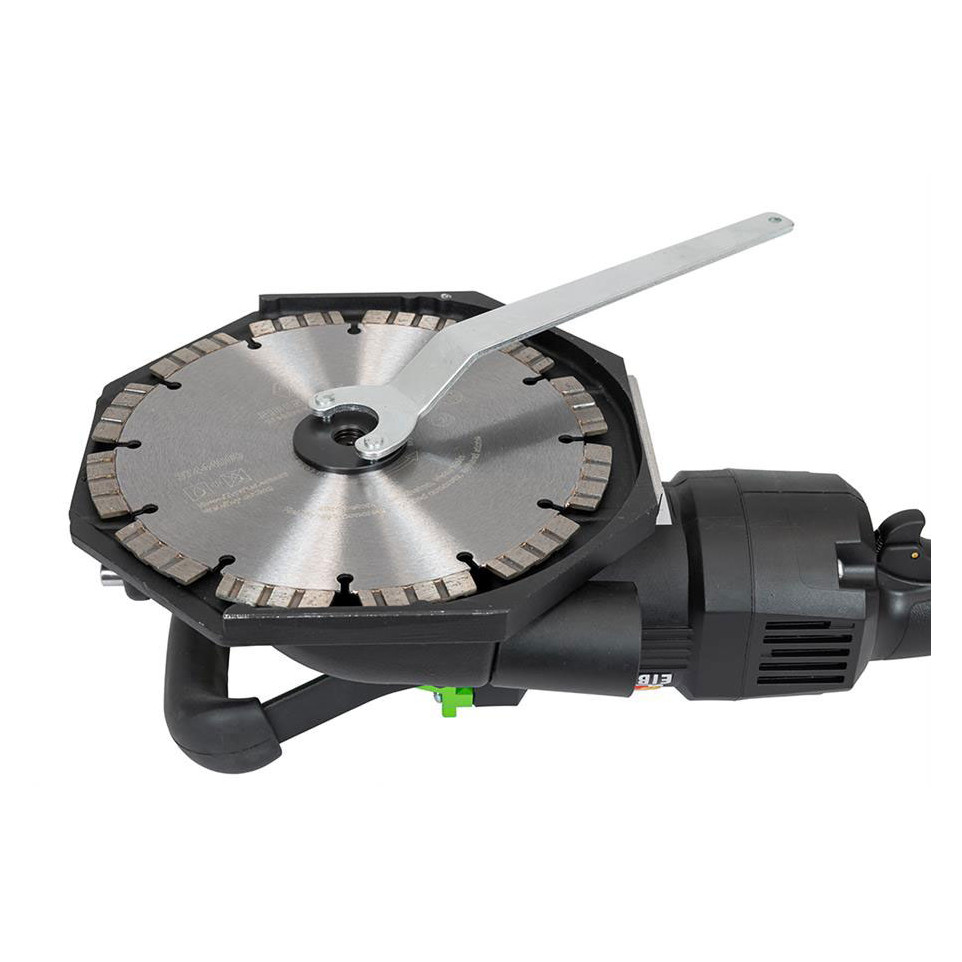

Eibenstock Diamond Disc 200 x 22.2 mm for EFS 200 / pce
€208.22
In stock
Product

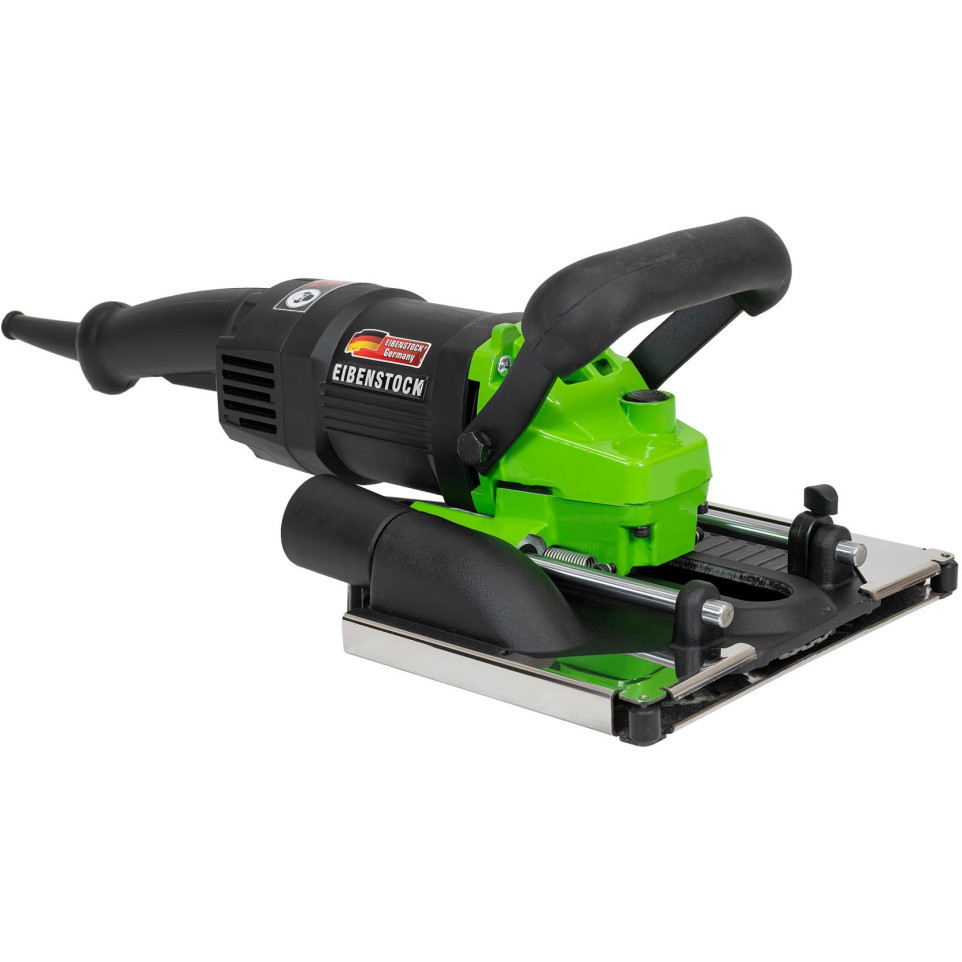

The Eibenstock EFS 200 is a professional window saw designed for clean, dust-free separation of old window and door frames from surrounding masonry, delivering precise cuts up to 70 mm deep.
Specifications
- 1,400 W motor operating at 230 V with a no-load speed of 7,500 rpm
- Compatible with 200 mm diameter diamond blades with a 22.2 mm arbor bore
- Continuously adjustable cutting depth limiter for repeatable, controlled cuts
- Base plate rotates 180° to enable both longitudinal and corner cuts
- Integrated Ø 35 mm dust extraction port for direct connection to Eibenstock ESS series M-class vacuum systems
- Weight: 5.6 kg (EPTA measurement standard)
Usage

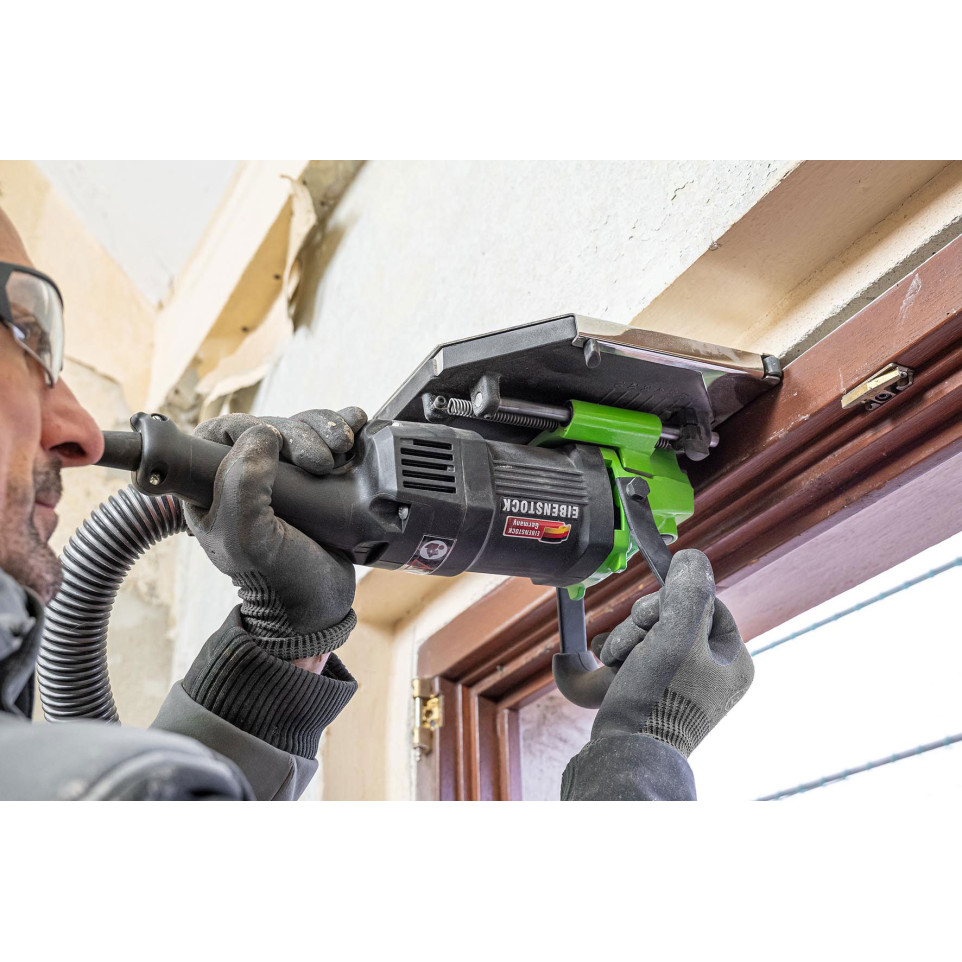

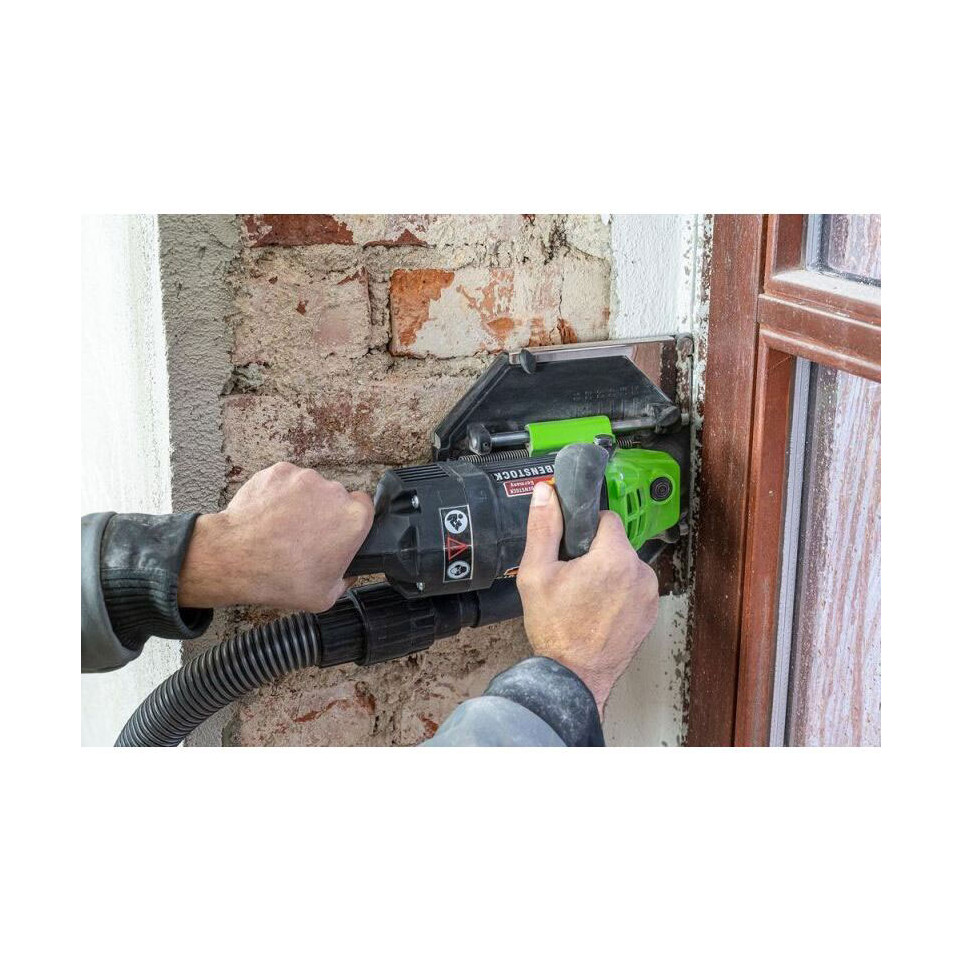

Mount the appropriate 200 mm diamond blade, connect a compatible vacuum for dust-free operation, set the desired cutting depth using the continuous adjuster, and guide the saw along window or door frames to cleanly separate them from the surrounding masonry with minimal disruption.
FAQ
-
What blade diameter is compatible with the EFS 200? The tool accepts diamond blades with a 200 mm diameter and a 22.2 mm arbor bore.
-
What is the maximum cutting depth? The EFS 200 achieves a maximum cutting depth of 70 mm, adjustable continuously via the integrated depth limiter.
-
Can the saw perform corner cuts? Yes. The base plate rotates 180°, allowing both longitudinal and corner cuts without repositioning the operator.
-
Which dust extractor is recommended for use with this saw? The EFS 200 features a Ø 35 mm extraction port designed for direct connection to Eibenstock ESS series M-class vacuum systems.
-
What power supply does the EFS 200 require? The saw operates on a standard 230 V single-phase power supply and draws 1,400 W at full load.
