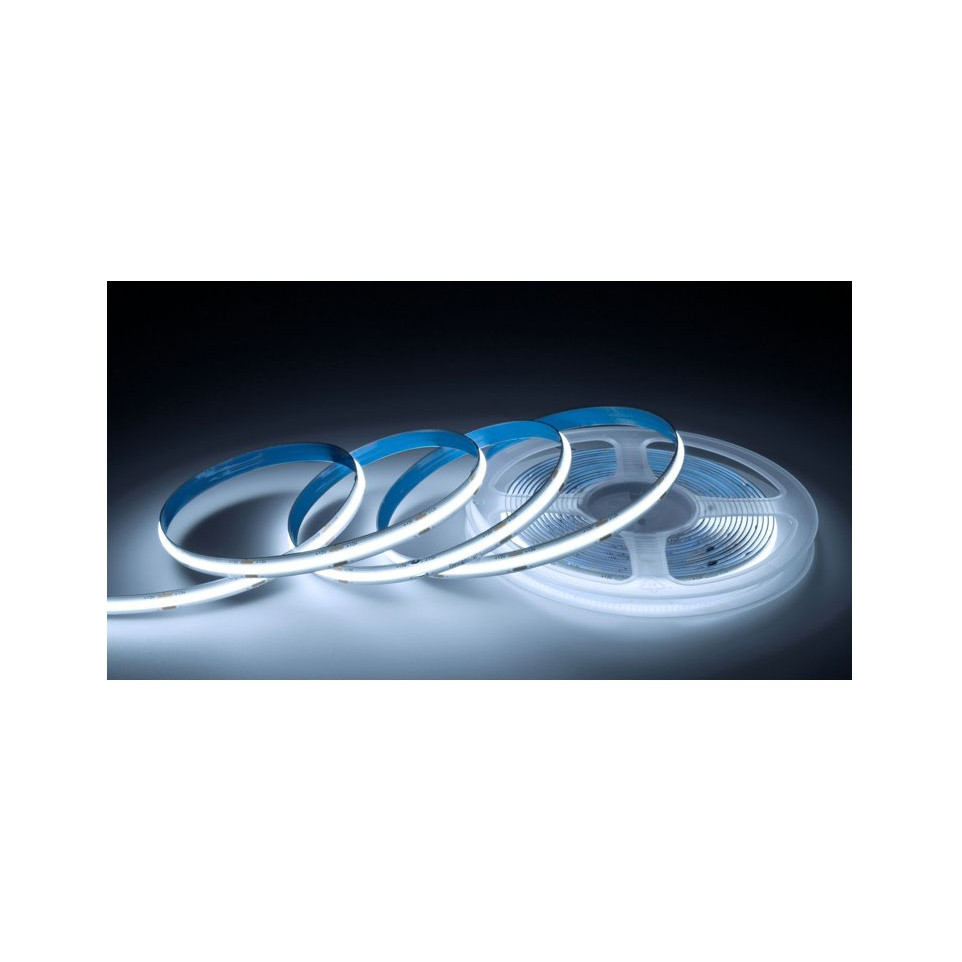

The Premium COB LED Strip 25m x 8mm 24V Cool White delivers a smooth, continuous line of light without visible diodes. Ideal for architectural accents, cove lighting, under-cabinet installations, and decorative applications where a seamless illumination effect is required.
Specifications
- COB (Chip-on-Board) LED technology embedded on a slim 8mm-wide flexible strip, producing a uniform light output free of hotspots or visible LED dots
- Cool white colour temperature for crisp, clean illumination suited to task lighting and modern interior designs
- Power consumption of 13W per metre with a luminous output of 1220lm per metre, offering efficient performance
- Operates at a safe 24V DC low voltage
- IP20 rating, designed for dry indoor environments

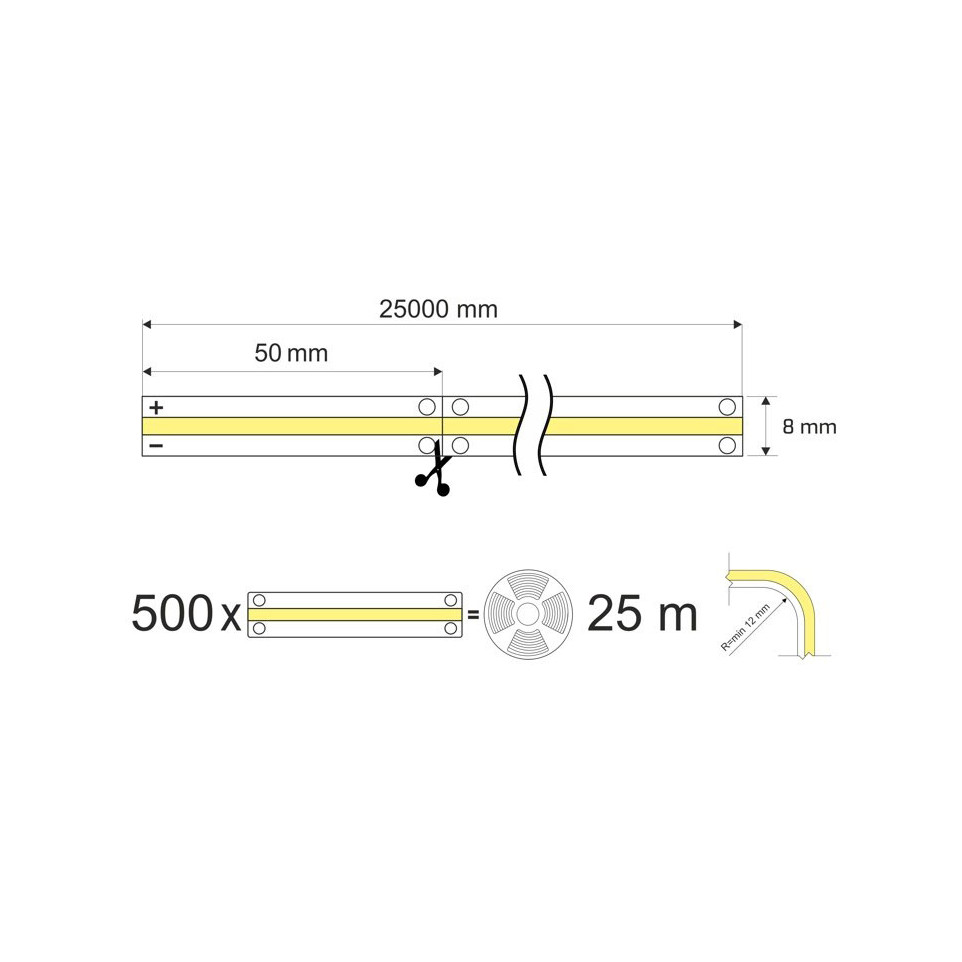

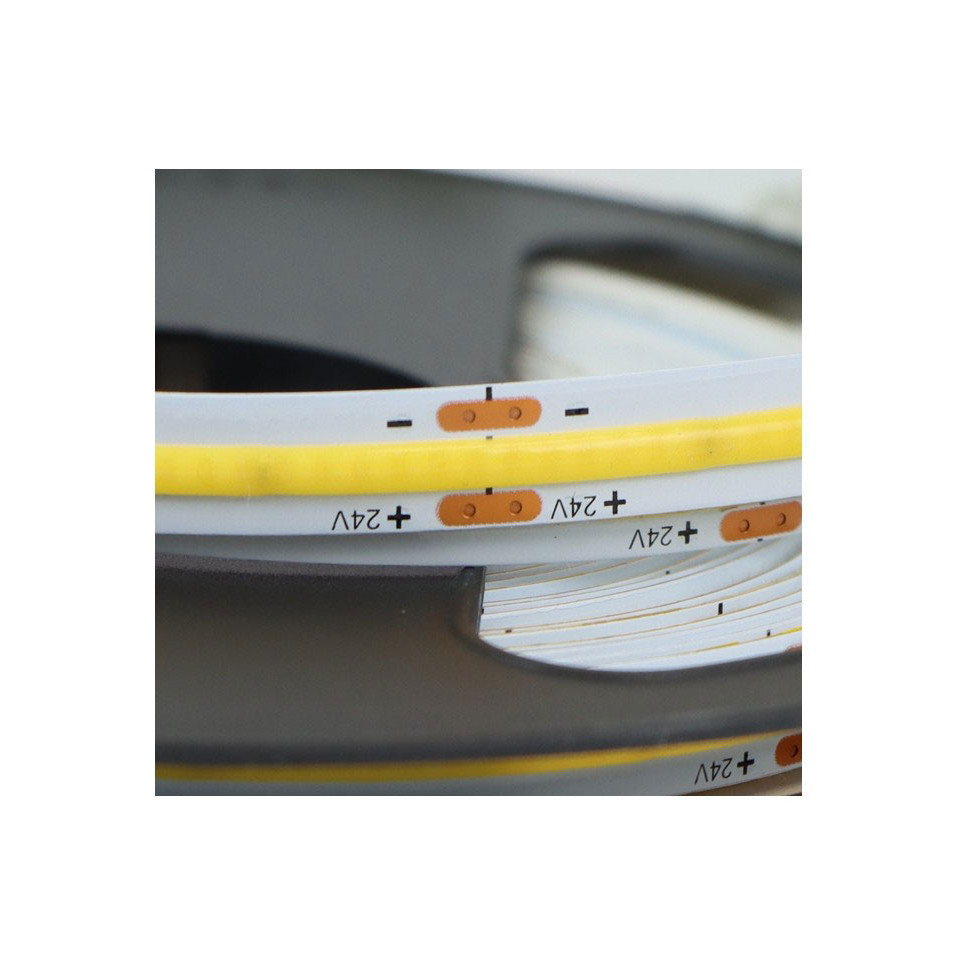

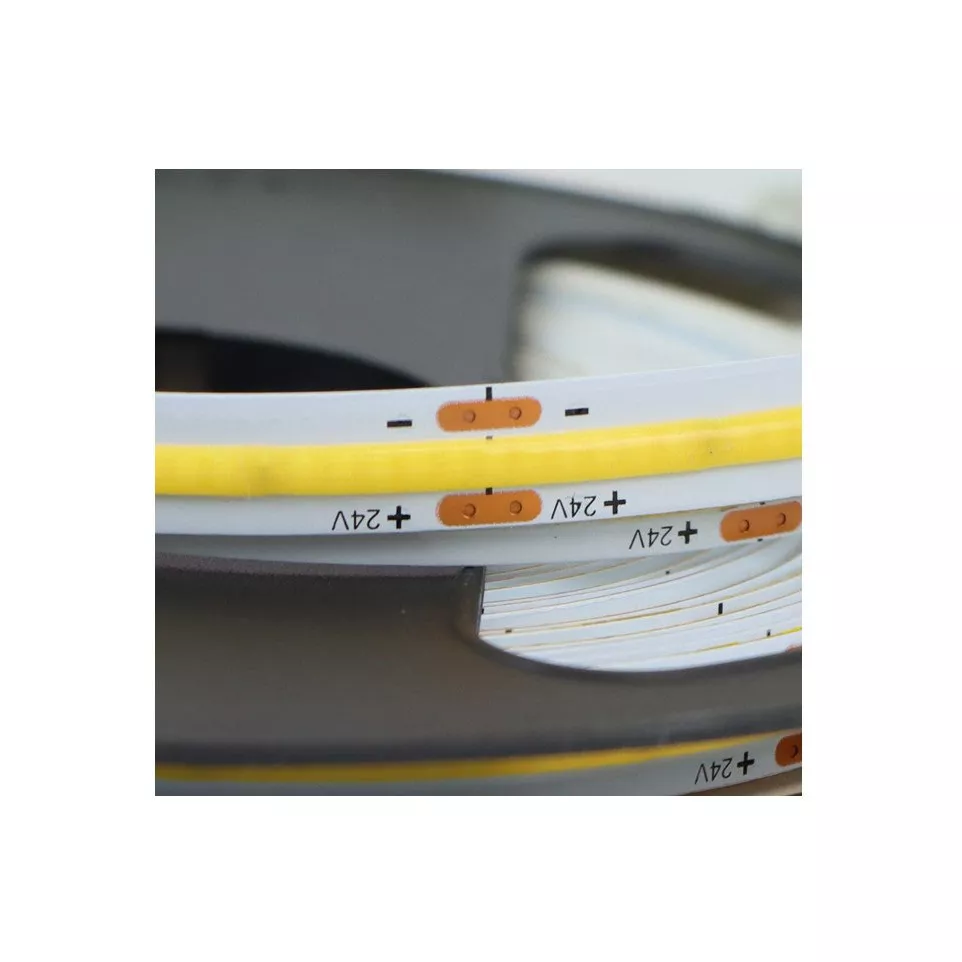

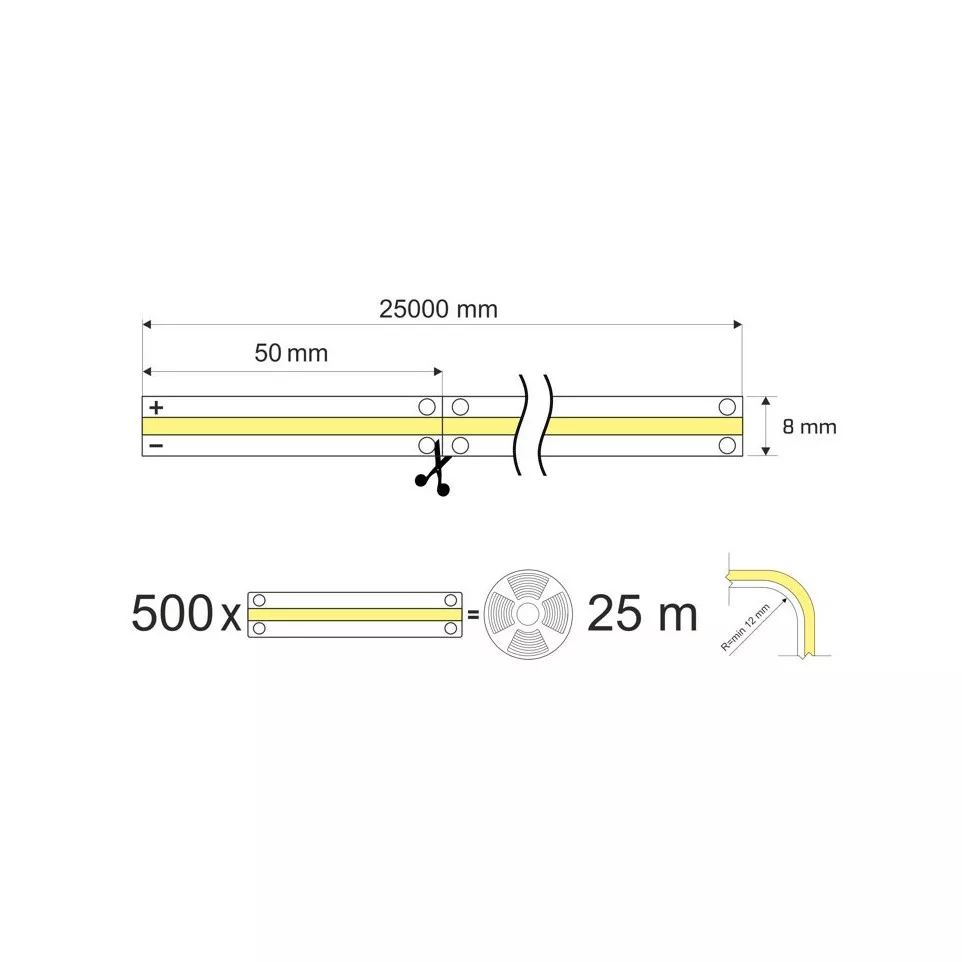

- Total roll length of 25 metres, cuttable every 50mm at clearly marked intervals to accommodate custom lengths

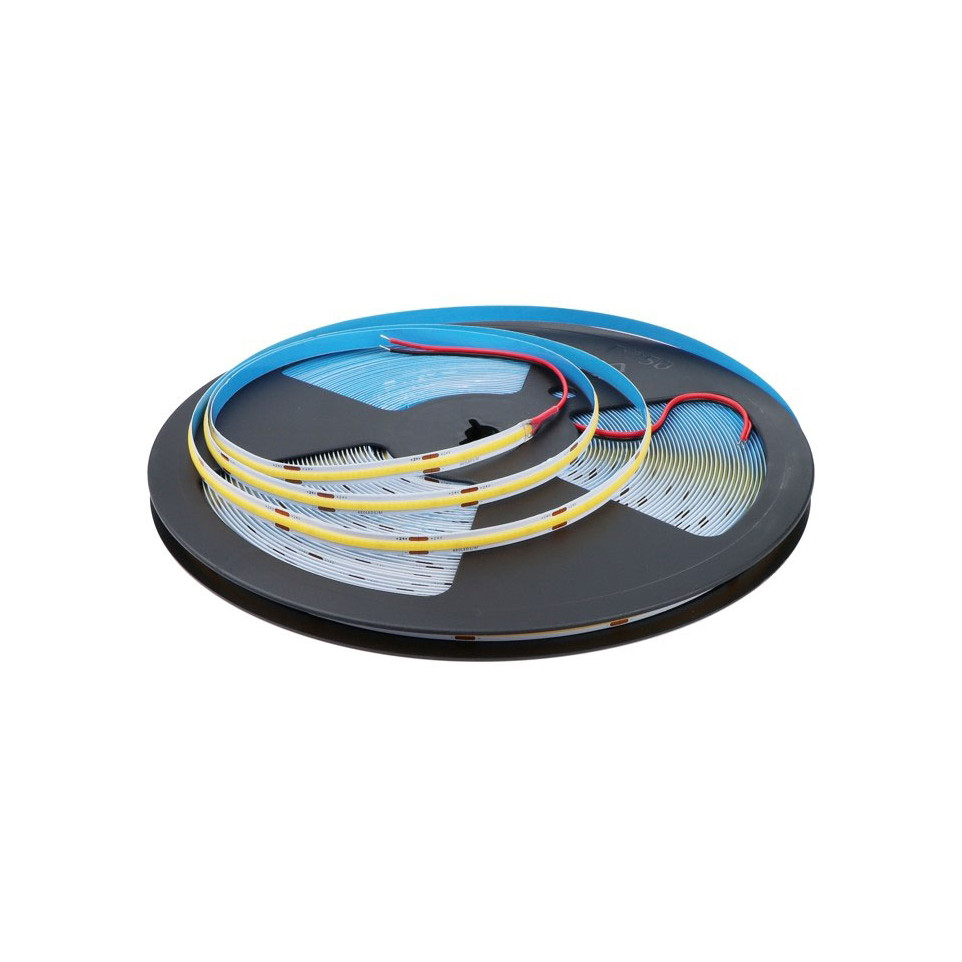

- Pre-wired on both sides for straightforward electrical connection and daisy-chaining
- Self-adhesive backing for quick and secure mounting on clean, flat surfaces
- Extended lifespan compared to traditional SMD LED strips, with lower energy consumption and simplified assembly
- Reference: 587017
Usage
Peel off the adhesive backing and press the strip firmly onto a clean, dry surface. Cut at any of the designated 50mm marks to achieve the exact length needed. Connect the pre-wired leads to a compatible 24V DC power supply. For longer runs or multiple sections, use the pre-wired ends on both sides to link strips together. Pair with an aluminium LED profile for improved heat dissipation and a polished finish.
FAQ
- What makes COB LED strips different from SMD LED strips? COB technology places the LED chips extremely close together under a single phosphor layer, creating a seamless, dot-free line of light. This results in more uniform illumination, lower energy consumption, and a longer operational lifespan compared to standard SMD strips.
- Can I cut this strip to a custom length? Yes, the strip can be cut every 50mm at clearly marked cutting points, allowing you to tailor it precisely to your installation requirements.
- Is this strip suitable for bathroom or outdoor use? No. With an IP20 rating, this strip is designed exclusively for dry indoor environments. It should not be exposed to moisture, humidity, or outdoor conditions.
- What power supply do I need? You need a constant-voltage 24V DC power supply. To determine the required wattage, multiply 13W by the total length in metres you plan to install, then add a 20% safety margin to avoid overloading the driver.
- How do I connect multiple sections together? The strip is pre-wired on both sides, making it easy to join sections using compatible connectors or by soldering the leads. Ensure total power draw does not exceed the capacity of your power supply and check maximum recommended run lengths to maintain consistent brightness.
