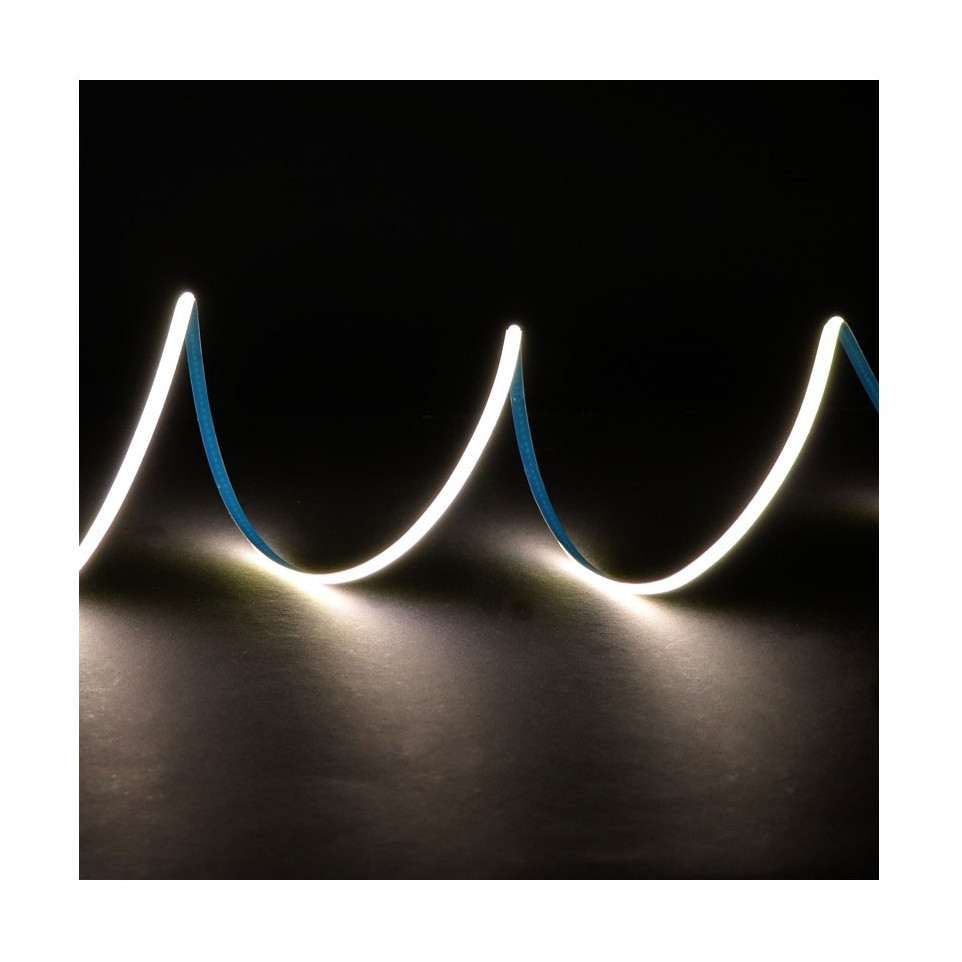

The Slim COB LED Strip 5x5mm 24V DC Warm White (Ref: 587035) is a 5-meter self-adhesive LED strip delivering uniform warm white light without visible diode points, ideal for accent lighting, cove lighting, and architectural installations.
Specifications
- Ultra-slim 5mm wide COB (Chip-on-Board) design producing a seamless, dot-free light line in a compact 5x5mm profile
- Operates on 24V DC with a power consumption of 11W per meter and a luminous output of 1020lm per meter in warm white
- IP20 rated for indoor use only, suitable for dry environments such as living spaces, retail displays, and furniture lighting
- COB technology offers extended lifespan and lower energy consumption compared to traditional SMD LED strips

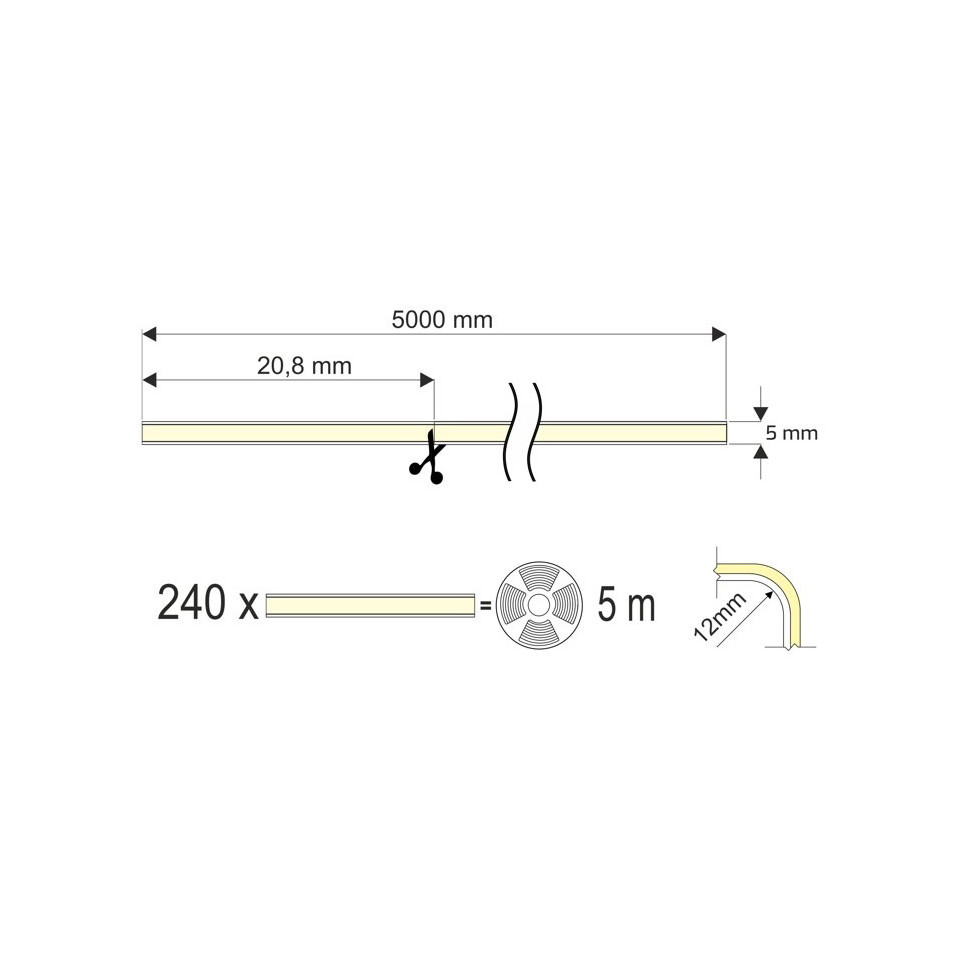

- Cuttable every 50mm at clearly marked intervals, allowing precise customization to any desired length
- Pre-wired on both ends with AMP connectors for quick and straightforward installation

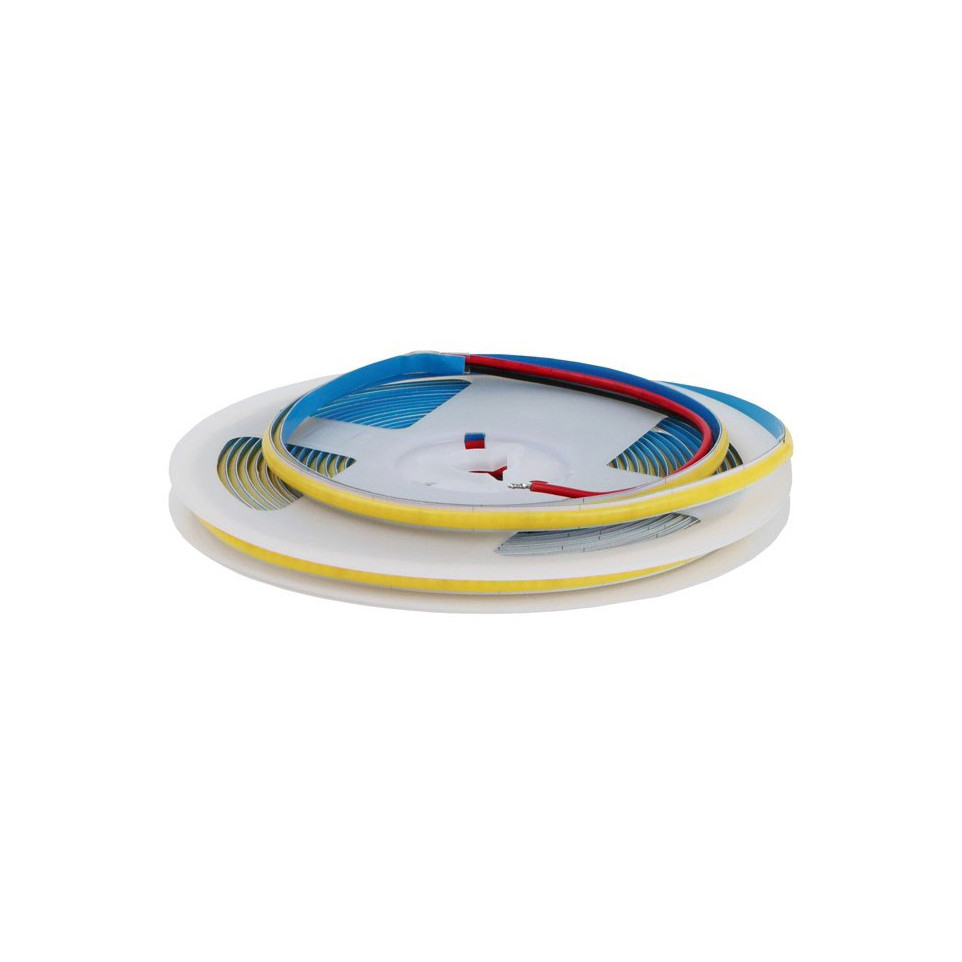

- Total strip length of 5 meters supplied on a single reel
- 3M adhesive backing for easy mounting on clean, flat surfaces
Usage
Peel off the adhesive backing and apply the strip to a clean, dry surface or inside an aluminum LED profile for improved heat dissipation. Connect the pre-wired AMP plugs to a compatible 24V DC power supply. Cut at the designated 50mm marks to fit your specific installation length. Pair with a compatible dimmer for adjustable brightness if desired.
FAQ
- Can this LED strip be cut to a custom length? Yes, the strip can be cut every 50mm at clearly marked cutting points, allowing you to tailor it to any required length.
- Is this strip suitable for outdoor or wet environments? No, this strip carries an IP20 rating, which means it is designed exclusively for dry, indoor applications.
- What power supply do I need? You need a 24V DC power supply. For the full 5-meter reel at 11W/m, a driver rated at a minimum of 55W is recommended, ideally with a 20% overhead margin.
- What is the difference between COB and SMD LED strips? COB strips place the LED chips directly onto the substrate in a dense array, producing a continuous, uniform light line with no visible hotspots. They also tend to consume less energy and have a longer operational lifespan compared to SMD strips.
- Do I need an aluminum profile for installation? While not strictly required, mounting the strip inside an aluminum LED profile is recommended. It improves heat dissipation, extends the strip's lifespan, and provides a more polished finished appearance.
