Product

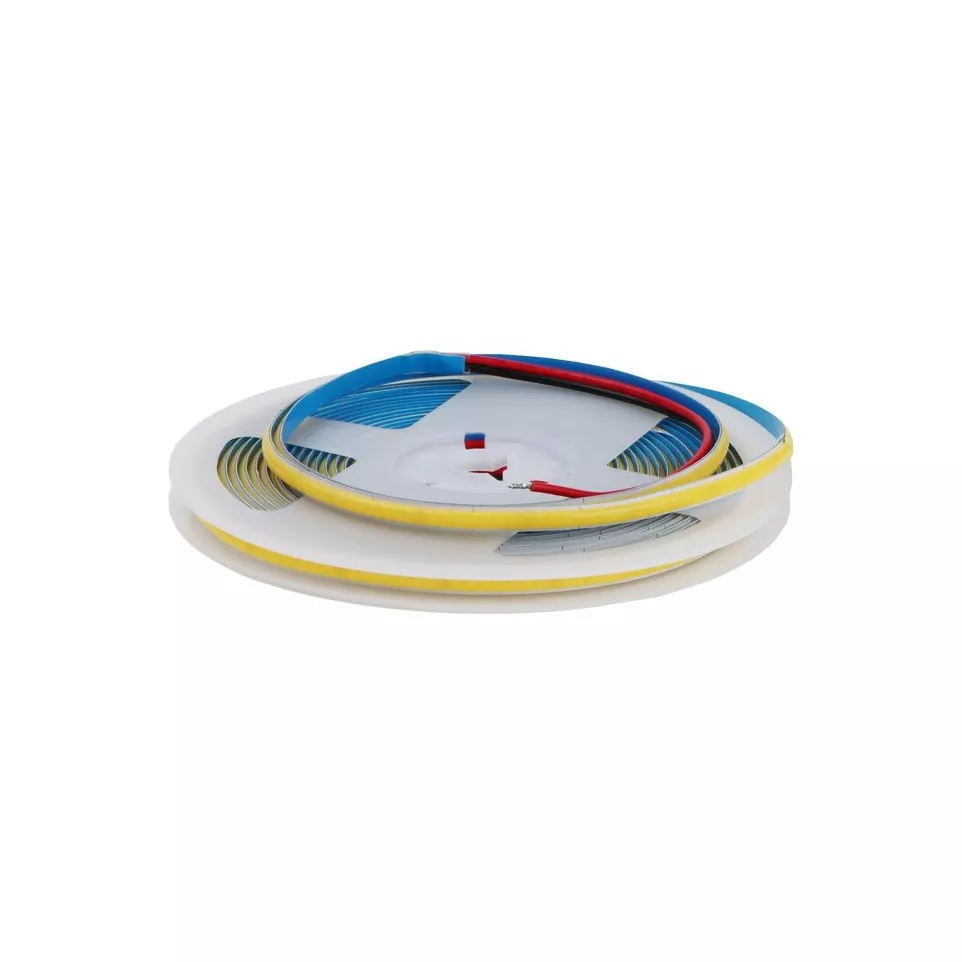

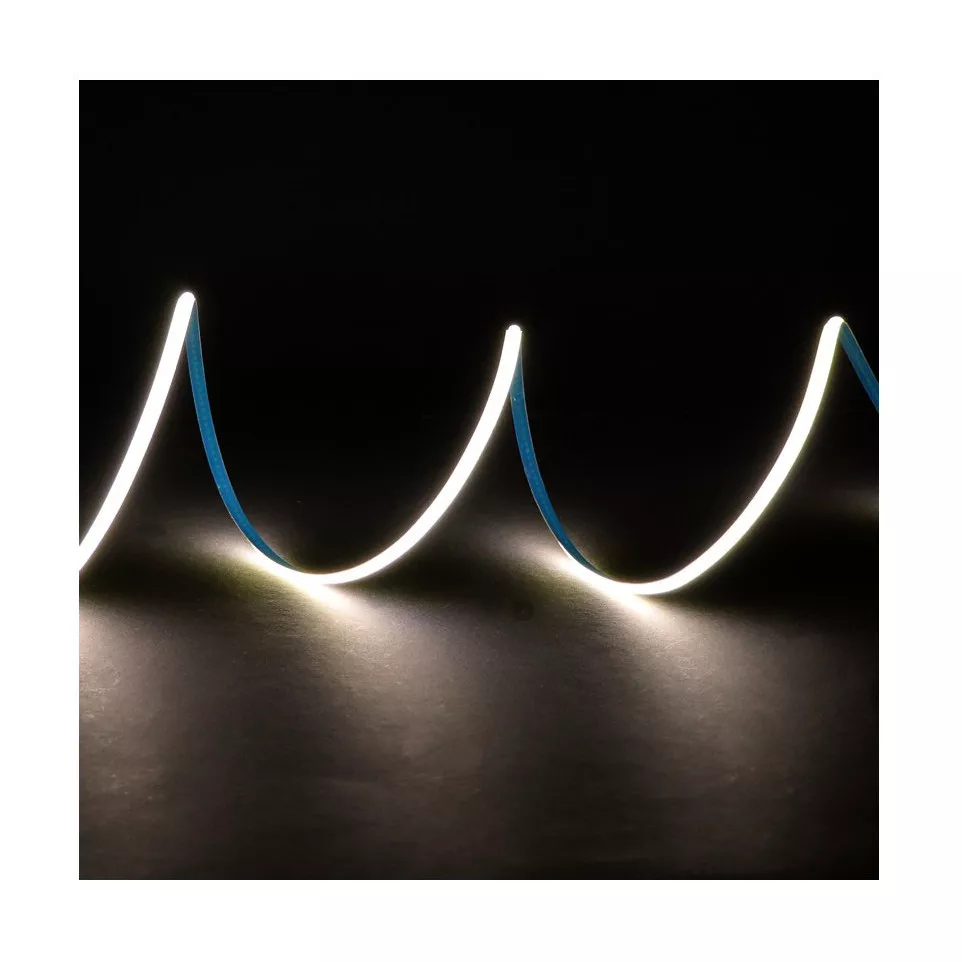

The Slim COB LED Strip 5m x 5mm 24V DC Cool White (Ref: 587037) is a 5-metre self-adhesive LED strip delivering uniform cool white light through COB technology, ideal for accent lighting, cove lighting, and architectural installations where a seamless light line is required.
Specifications
- Technology: COB (Chip-on-Board) LED technology producing a continuous, dot-free light line without visible individual diodes, housed in an ultra-slim 5mm wide flexible strip.
- Electrical: Operates on 24V DC with a power consumption of 11W per metre and a luminous output of 1100lm per metre in cool white colour temperature.
- Protection rating: IP20, suitable for dry indoor environments only — not designed for wet or outdoor use.
- Durability: COB technology offers an extended lifespan and lower energy consumption compared to traditional SMD LED strips, ensuring long-term reliability.
- Cuttable design: The strip can be cut every 50mm at clearly marked intervals, allowing precise customisation to any desired length.
- Connectivity: Pre-wired on both ends with AMP connectors for quick and straightforward installation without soldering.
- Total length: 5 metres per roll.
Usage
Peel off the adhesive backing and apply the strip to a clean, dry surface. Connect the pre-wired AMP plugs to a compatible 24V DC power supply. Cut the strip at the designated 50mm marks if a shorter length is needed. For optimal heat dissipation and longevity, mounting inside an aluminium LED profile is recommended.
FAQ
- Can I cut this LED strip to a custom length? Yes, the strip can be cut every 50mm at clearly marked cutting points, allowing you to adjust it to virtually any length you need.
- Do I need to solder wires to connect this strip? No, the strip comes pre-wired on both sides with AMP connectors, making installation quick and solder-free.
- Is this strip suitable for bathroom or outdoor use? No, this strip has an IP20 rating, which means it is designed exclusively for dry indoor environments and should not be exposed to moisture or water.
- What power supply do I need? You need a 24V DC power supply. For a full 5-metre roll consuming 11W/m, a driver rated at a minimum of 55W is required — though selecting a supply with at least 20% headroom (around 66W or more) is recommended for reliability.
- Will I see individual LED dots on this strip? No, COB technology places the LED chips extremely close together beneath a phosphor layer, producing a smooth, continuous line of light with no visible hotspots or individual diodes.
