Product

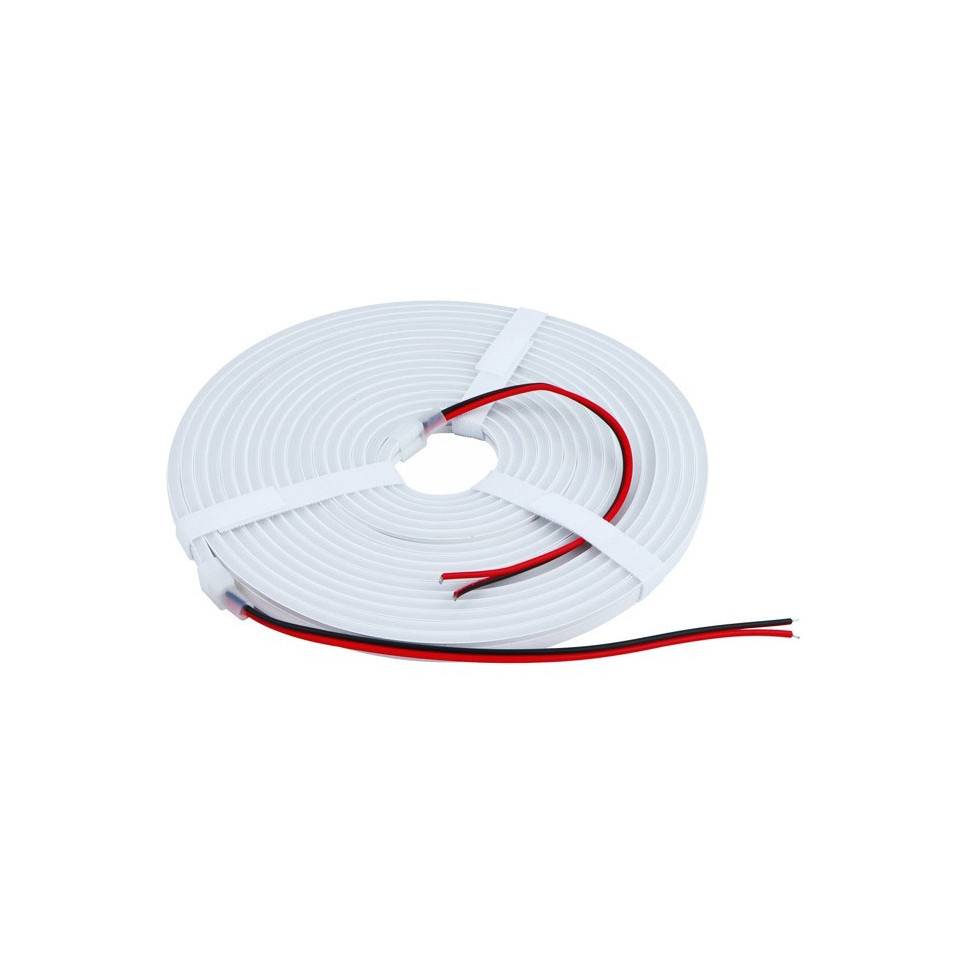

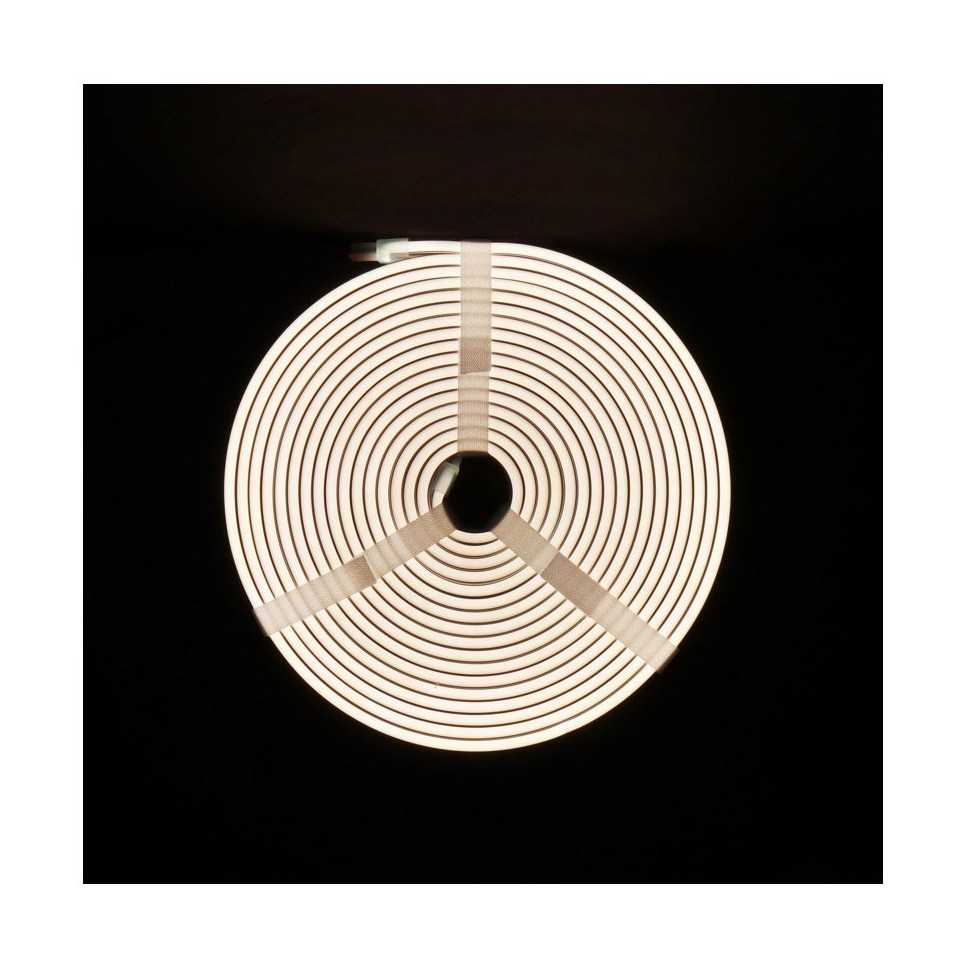

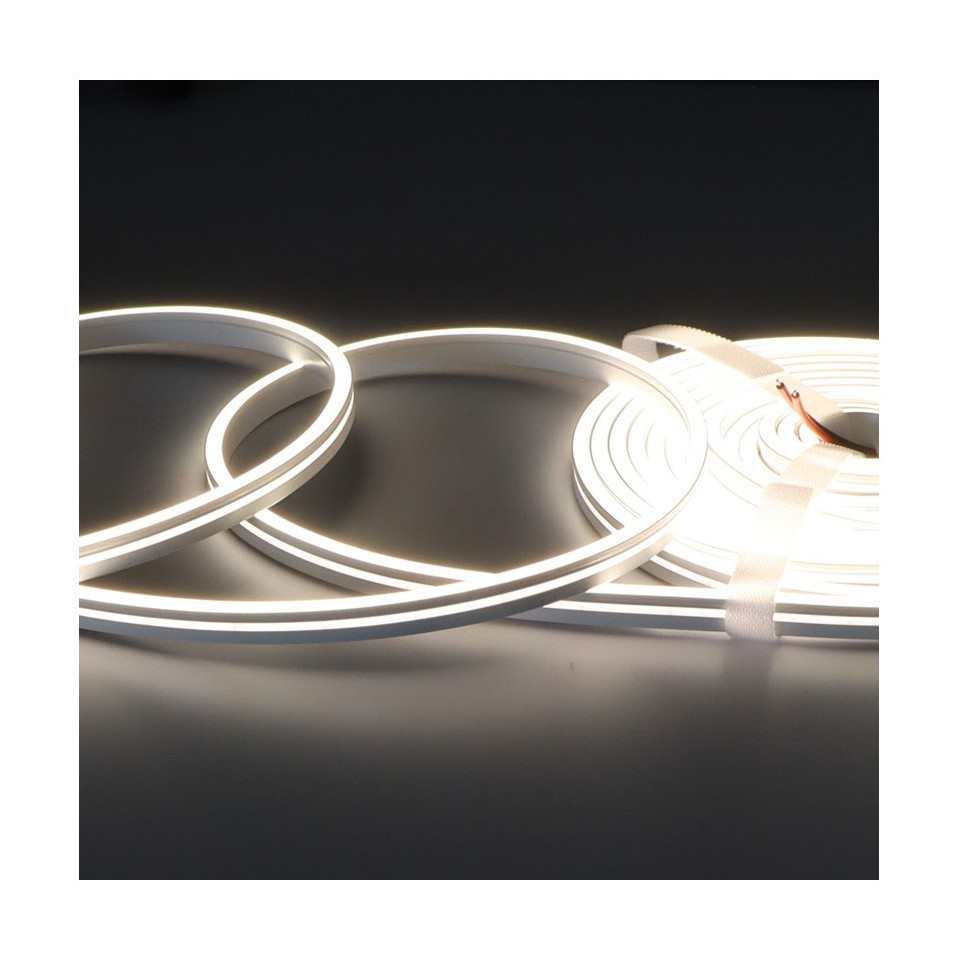

The LED Neon Flex 4x8mm 24V Neutral White is a flexible luminous profile designed to create custom inscriptions, patterns, logos, and decorative lighting lines. Supplied in a 5-meter length, it delivers 580lm/m at just 6.2W/m for efficient, uniform illumination.
Specifications

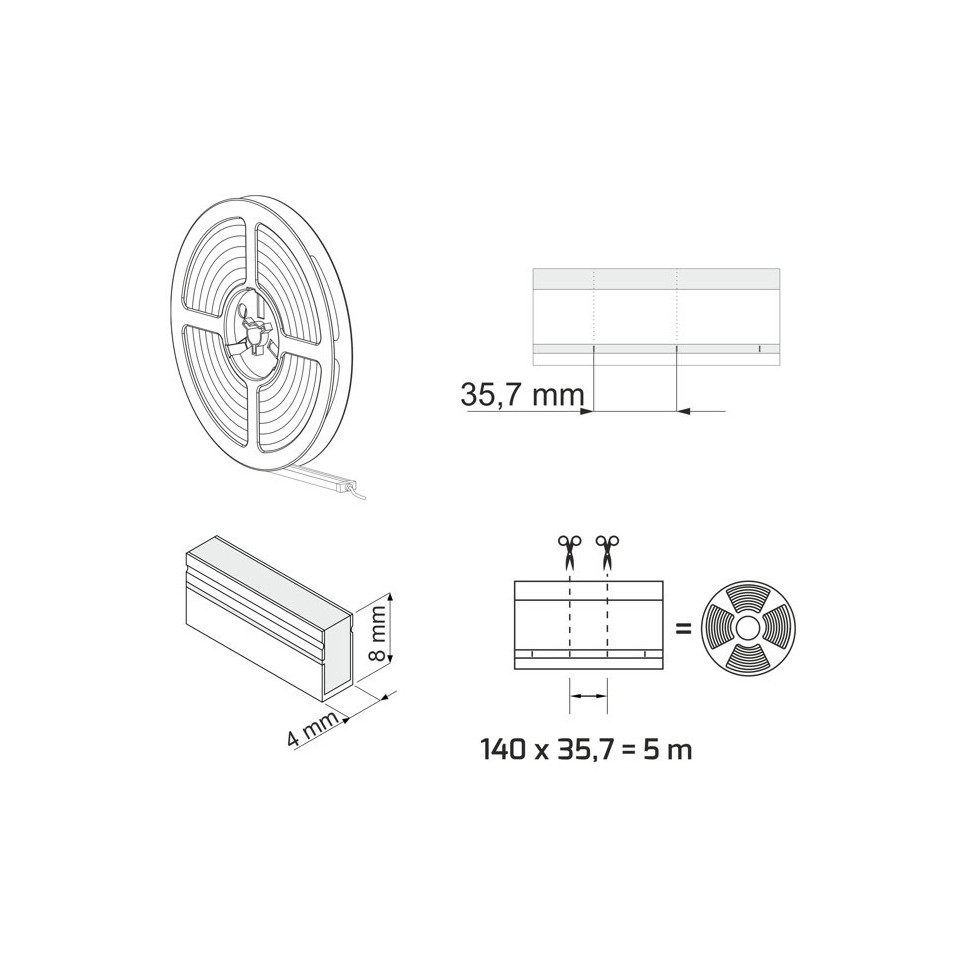

- Flexible silicone housing with compact 4x8mm cross-section dimensions, providing a smooth and continuous light output without visible LED dots
- Operates on safe 24V DC voltage with a neutral white color temperature, delivering 6.2W per meter and a luminous flux of 580lm per meter
- IP20 rating in its base configuration; however, the silicone construction supports IP67-level protection when end connectors and plugs are properly sealed, making it suitable for outdoor use
- Pre-wired on both ends with AMP connectors for fast and reliable electrical connection
- Cuttable at designated intervals, allowing precise length customization for any project
- Serves as a robust alternative to traditional LED strips, offering improved resistance to physical damage and environmental exposure
Usage
Install the Neon Flex by bending and shaping it into desired letters, logos, or decorative contours. Secure it using appropriate mounting clips or adhesive channels. Connect the pre-wired AMP plugs to a compatible 24V DC power supply. For outdoor installations, ensure all connection points are properly sealed with waterproof end caps to maintain the IP67 protection rating. Cut only at marked intervals to preserve functionality.
FAQ
- Can this Neon Flex be used outdoors? Yes, when the AMP connectors and end caps are properly sealed, the silicone housing provides IP67-level protection suitable for exterior applications.
- What power supply do I need? A 24V DC power supply is required. For a full 5-meter roll, the total power consumption is approximately 31W (6.2W/m × 5m), so select a driver with adequate wattage and a safety margin.
- Can I cut the Neon Flex to a shorter length? Yes, it can be cut at designated cutting marks along its length. Cutting outside these marks may damage the product and void its functionality.
- What is the difference between this and a standard LED strip? The LED Neon Flex encases the LEDs in a flexible silicone profile that diffuses light into a continuous, dot-free line. It is more resistant to physical damage and weather compared to a bare LED strip.
- What color temperature does this product emit? It produces a neutral white light, typically around 4000K, providing a balanced and natural illumination suitable for both decorative and functional lighting applications.
