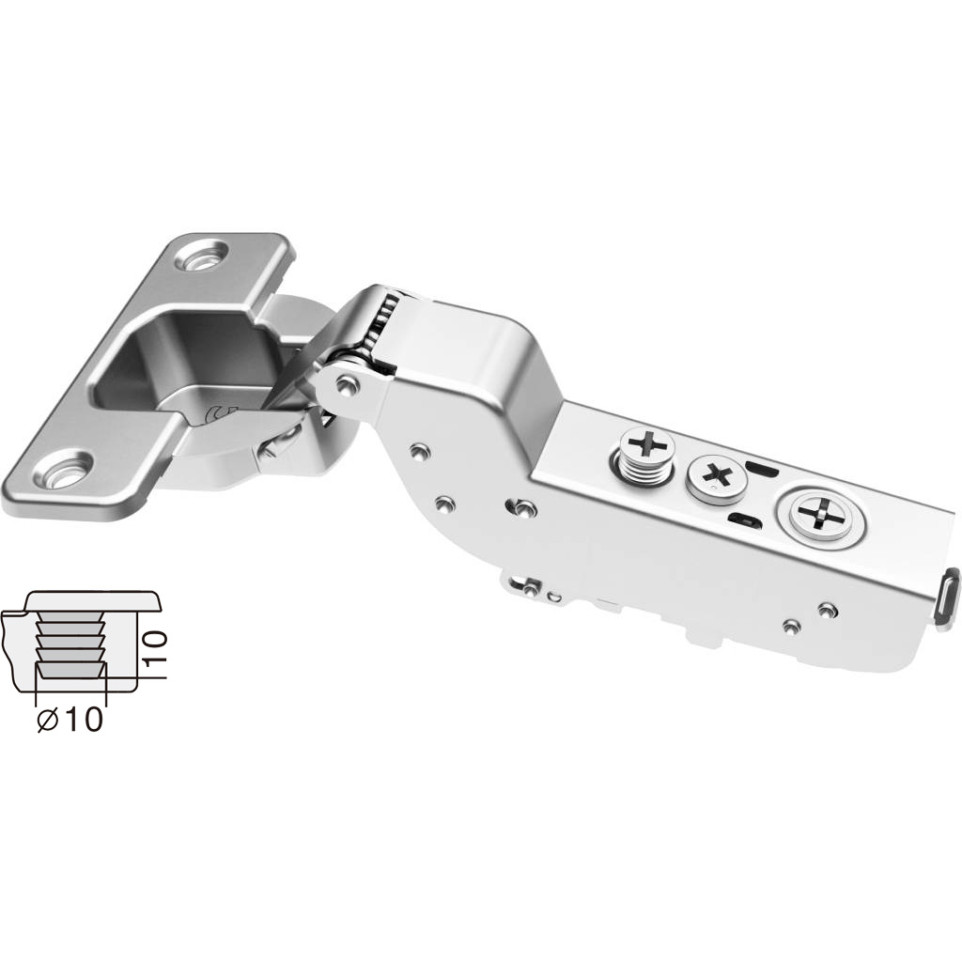

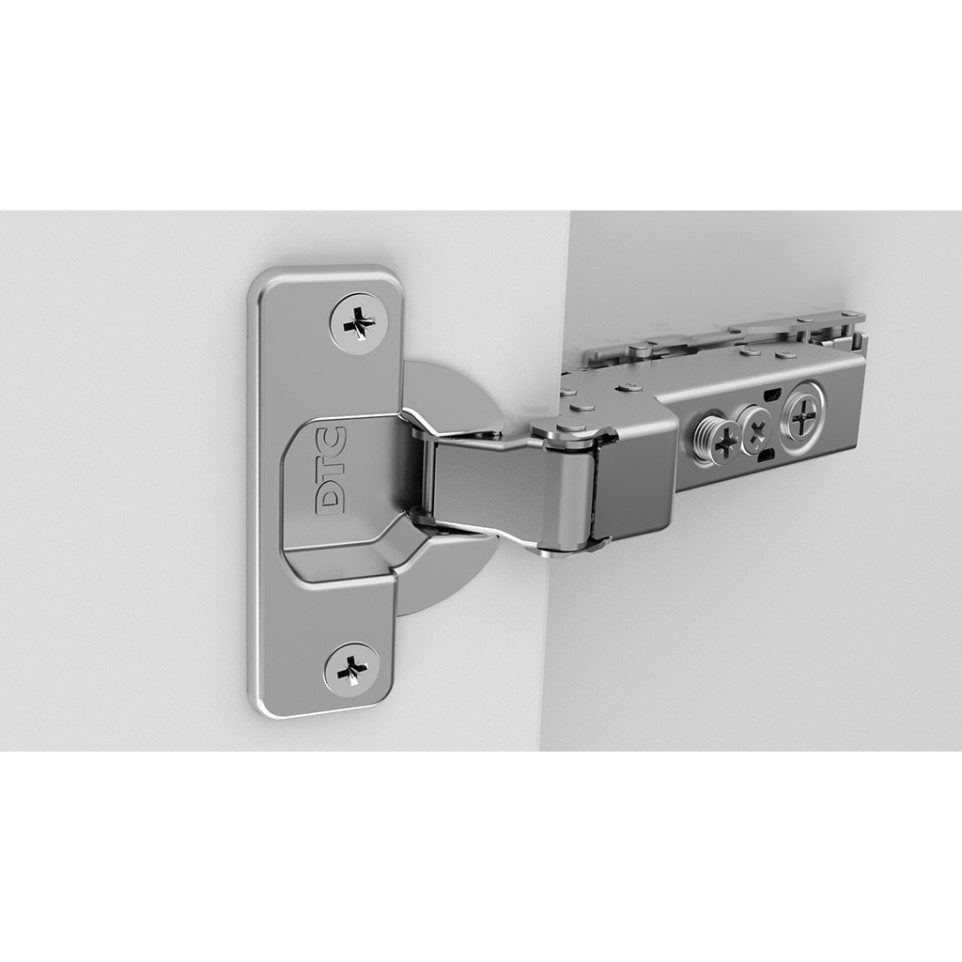

The Charnière Pivot-Star 110° nickel-plated press-in hinge is designed for inset doors, featuring an integrated soft-close mechanism and automatic closing. Suitable for doors 16–26 mm thick, it delivers precise and silent motion for residential and commercial cabinetry.

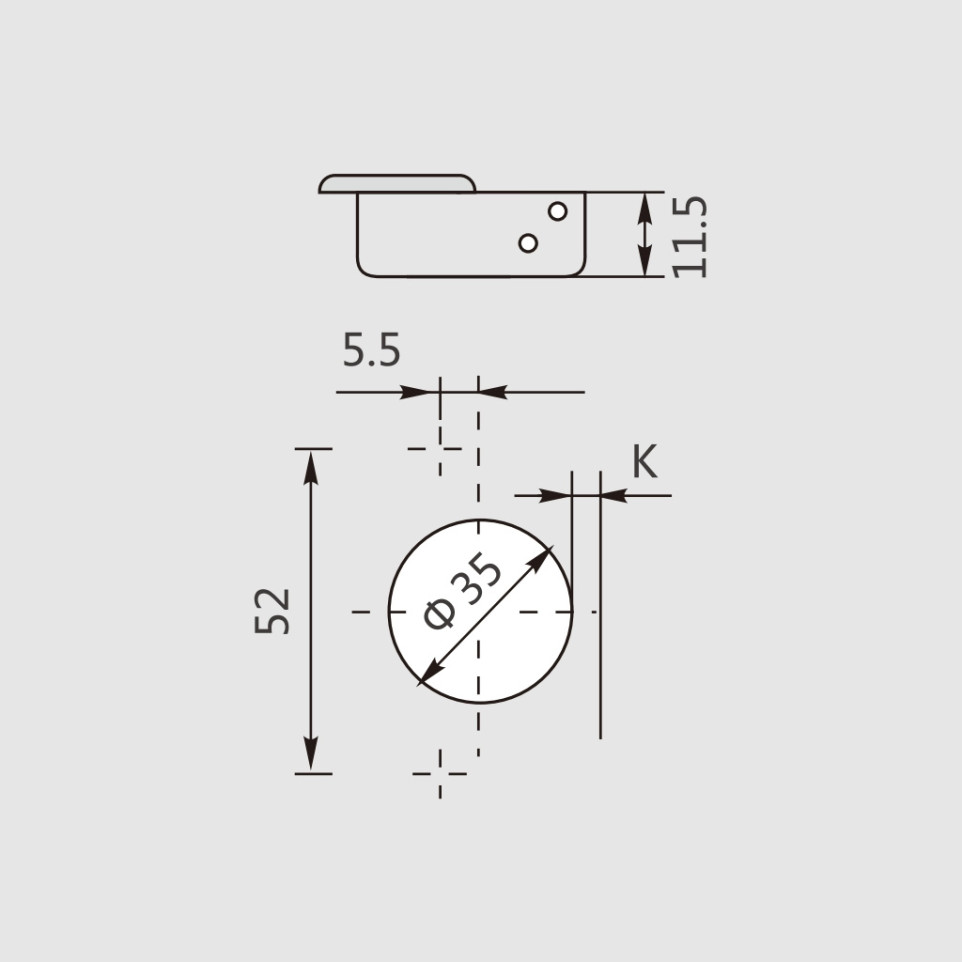

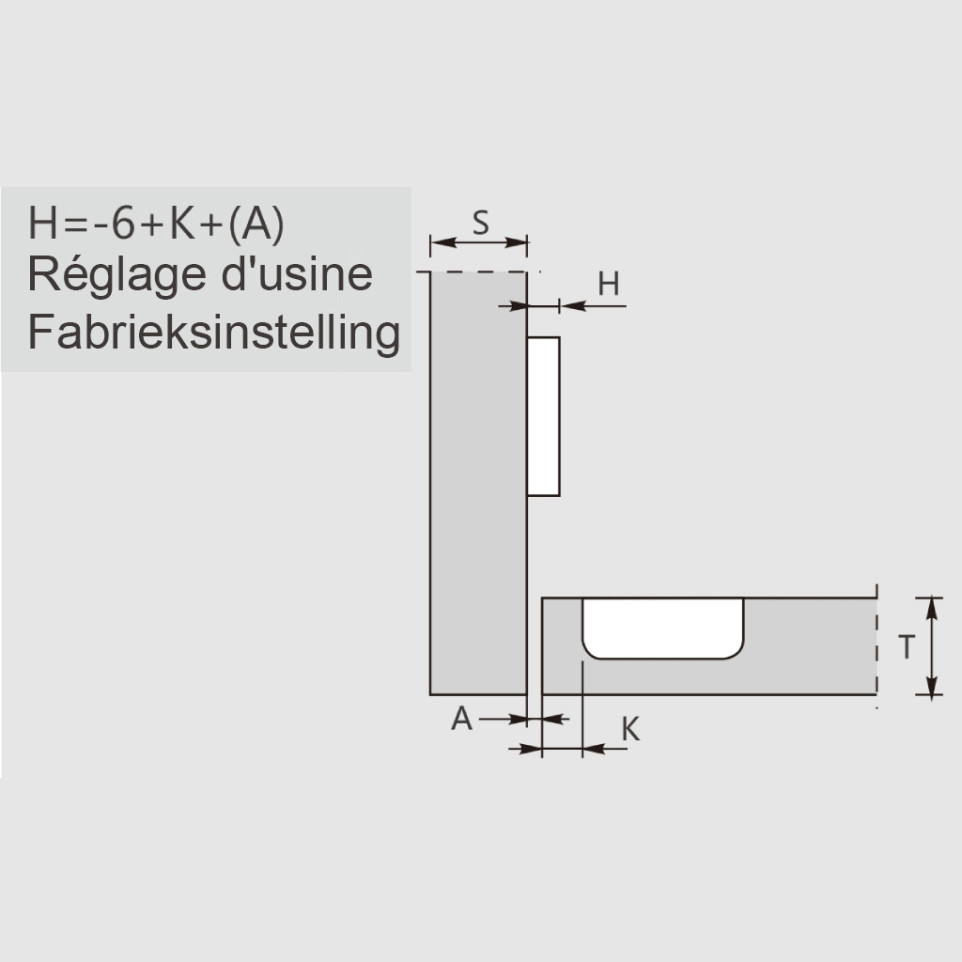

Install the Pivot-Star hinge on inset cabinet doors by pressing the hinge cup into a 35 mm diameter hole (11.5 mm deep) with specified drilling distances. The soft-close mechanism ensures smooth, quiet closing, while automatic closing keeps doors firmly shut in everyday use.
What door thickness is supported by this hinge?
Compatible with doors between 16 mm and 26 mm thick.
Is the hinge suitable for overlay or inset installations?
This model is specifically engineered for inset (recessed) door applications.
How does the integrated soft-close function work?
The built-in damper gradually slows the door’s movement, ensuring a quiet and cushioned closing.
What is the required cup hole size for installation?
Requires a 35 mm diameter cup hole with a depth of 11.5 mm.
Can the closing speed of the hinge be adjusted?
The integrated damper provides stable soft closing, but adjustment details depend on the specific version and should be checked in the product documentation.
