Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

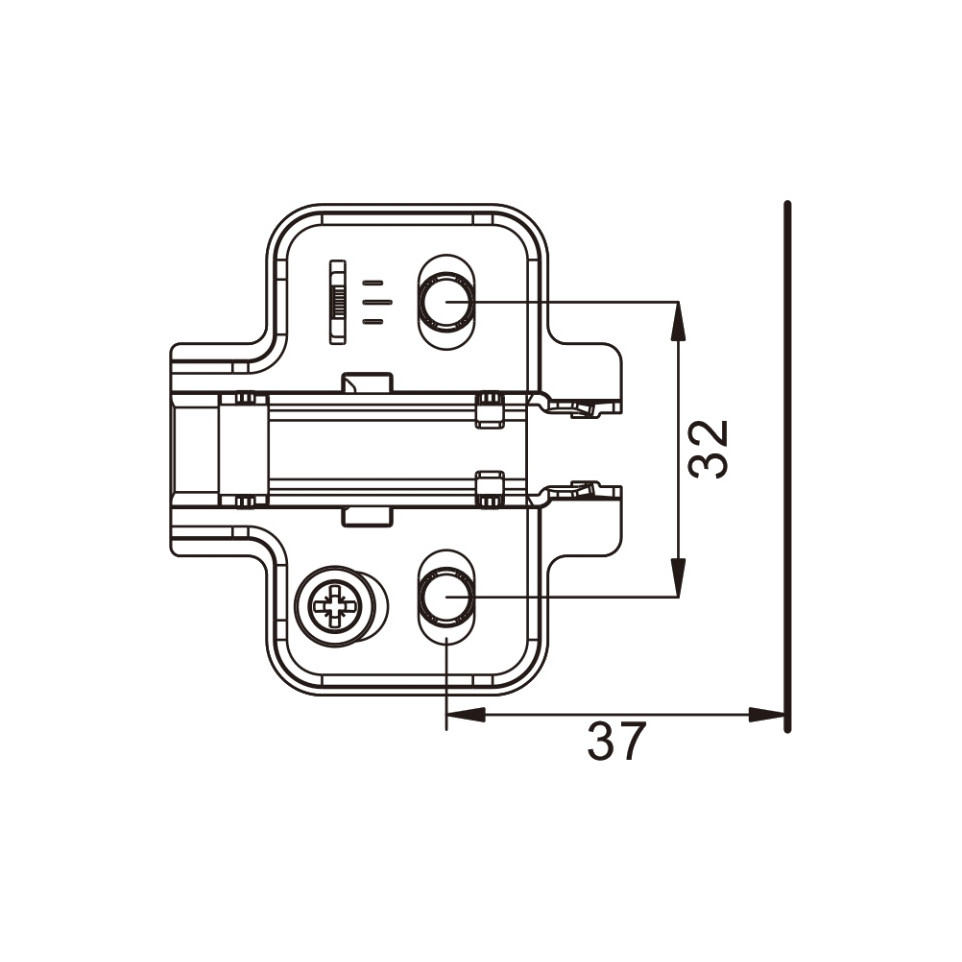

Nickel-plated Pivot-Star cruciform mounting plate with special screws and expansion sleeves, designed for drilling holes of Ø5 x 12mm, enables direct vertical adjustment and 0mm mounting distance in stud hinge installations.
Specifications
- Nickel-plated steel construction enhances corrosion resistance and offers a clean finish.
- Engineered for direct height adjustment to simplify alignment and maximize installation precision.
- Special screws and expansion sleeves included for reliable mounting in pre-drilled holes (Ø5 x 12mm).
- 0mm mounting distance supports flush installation and optimal door clearance.
- Compatible with Pivot-Star hinge systems and similar stud hinge accessories.
Usage
Designed for cabinetry and furniture applications using stud hinges, install the plate by drilling Ø5 x 12mm holes, securing with the supplied screws and expansion sleeves, and using the direct adjustment feature for precise alignment. The mounting plate serves as a robust interface between hinge and cabinet structure.
FAQ
-
What is the primary material of the mounting plate? The mounting plate is made of nickel-plated steel for enhanced durability and corrosion resistance.
-
Is direct height adjustment possible after installation? Yes, the plate features integrated direct height adjustment for easy positioning.
-
Which hinge systems is this plate compatible with? It is designed for Pivot-Star hinges and compatible stud hinge accessories.
-
What size of mounting hole is required? The supplied expansion sleeves fit pre-drilled holes of Ø5 x 12mm.
-
Does the product include all necessary fasteners? Special screws and expansion sleeves are included with the mounting plate for complete installation.
