Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

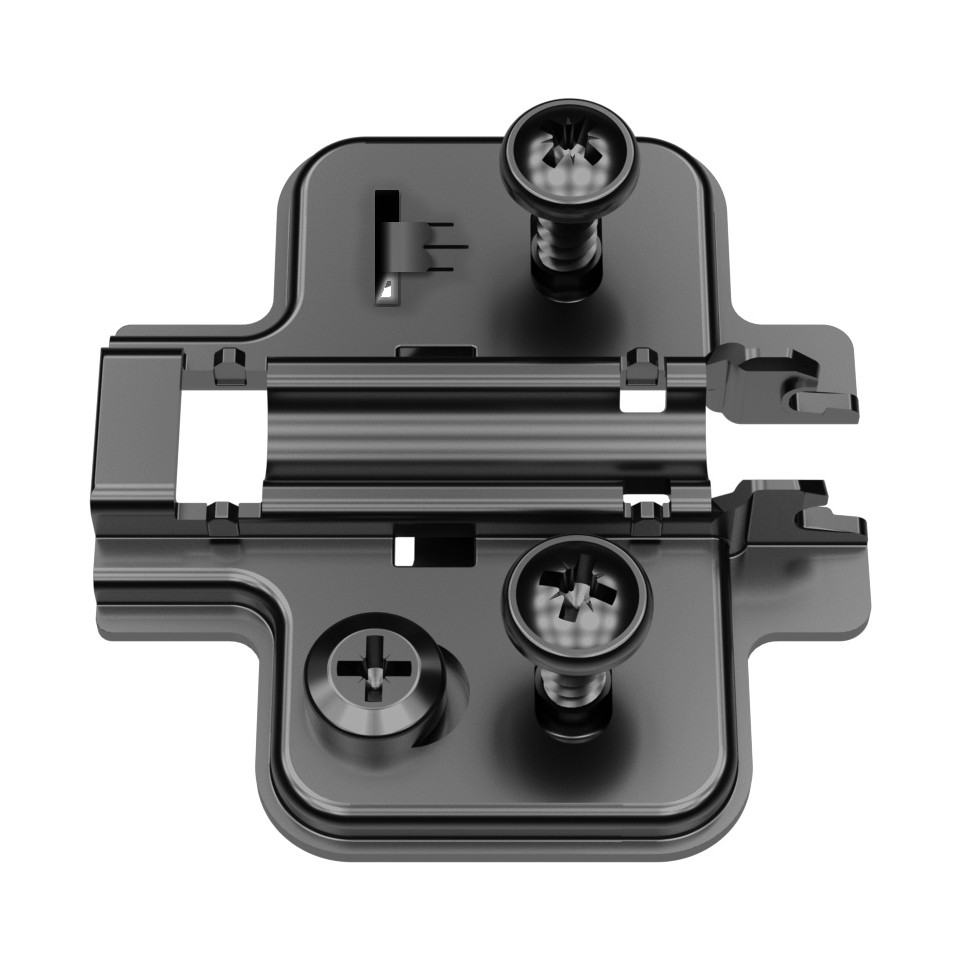

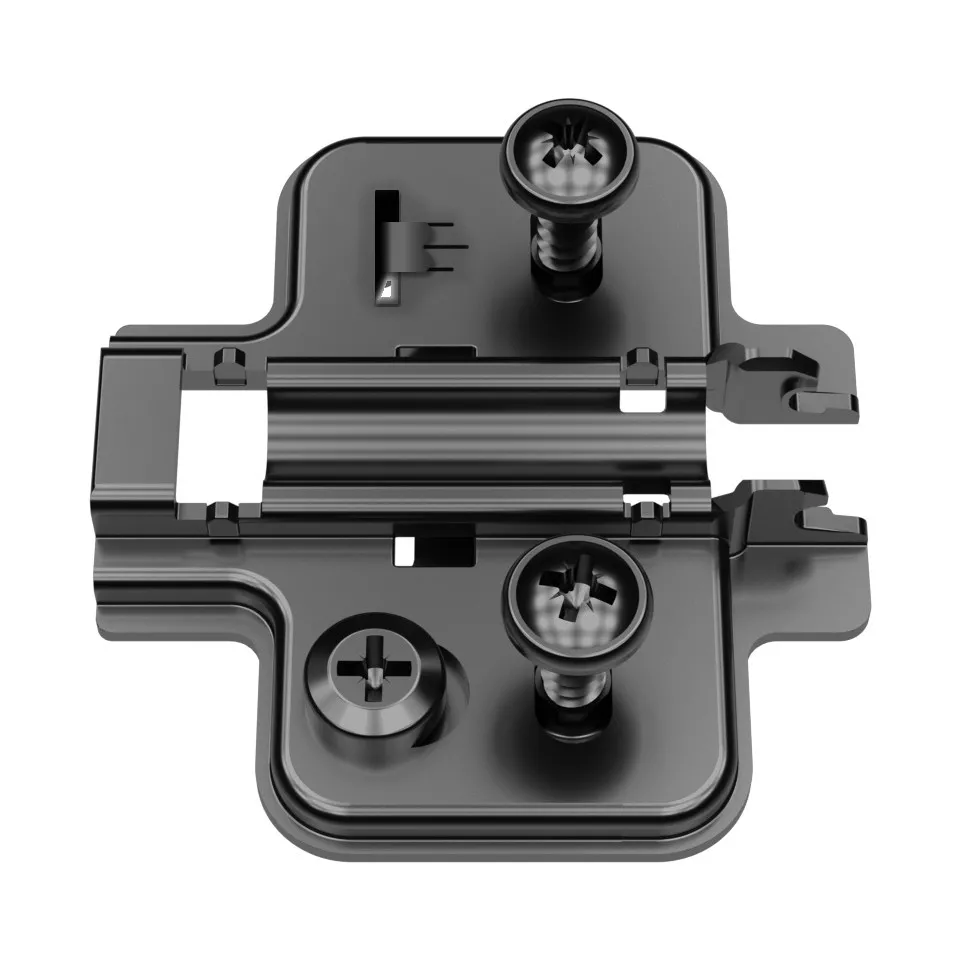

Nickel-plated Pivot-Star cruciform mounting plate equipped with special screws and expansion sleeves for Ø5 x 12mm drilling, featuring direct height adjustment and a fixed 2mm spacing. Designed for stud hinge and accessory applications in cabinetry or furniture assembly.
Specifications
- Design: Cruciform shape, nickel-plated finish, compatible with Pivot-Star hinge systems
- Materials/Technologies: Steel plate, expansion sleeves for secure anchoring, special installation screws
- Durability: Corrosion-resistant plating for extended service life; engineered for repeated adjustments

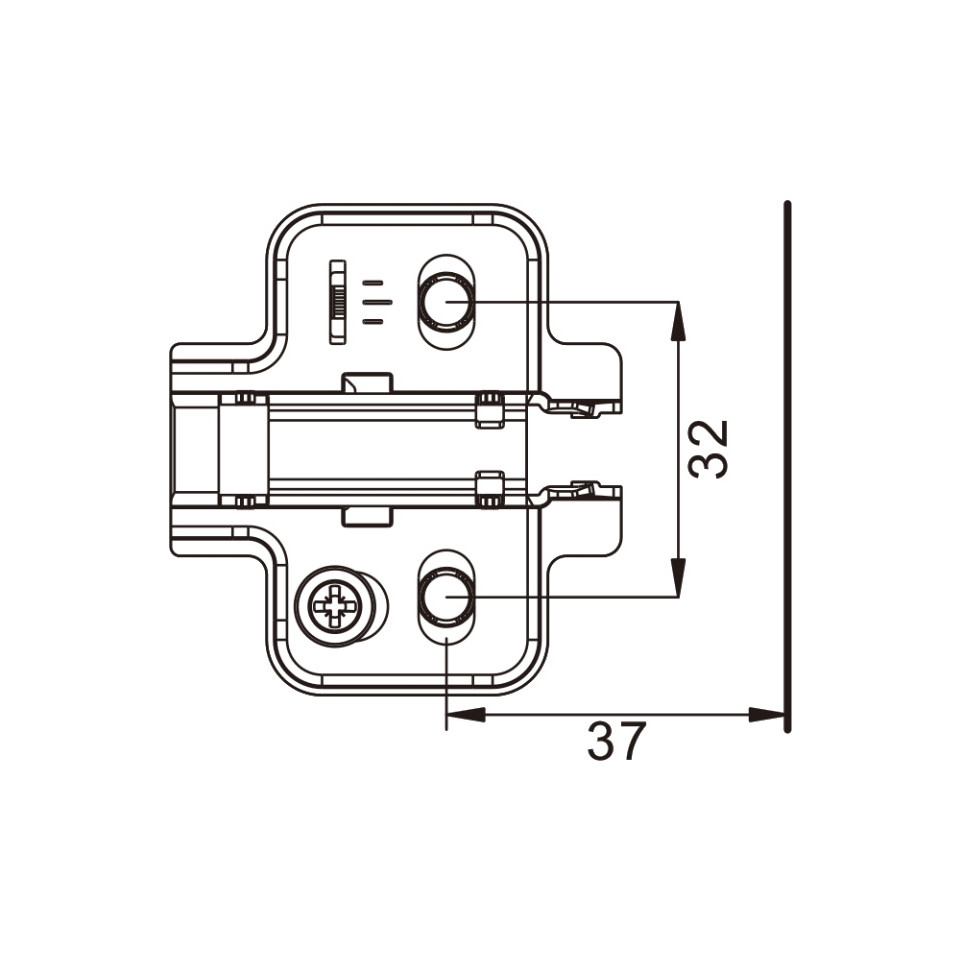

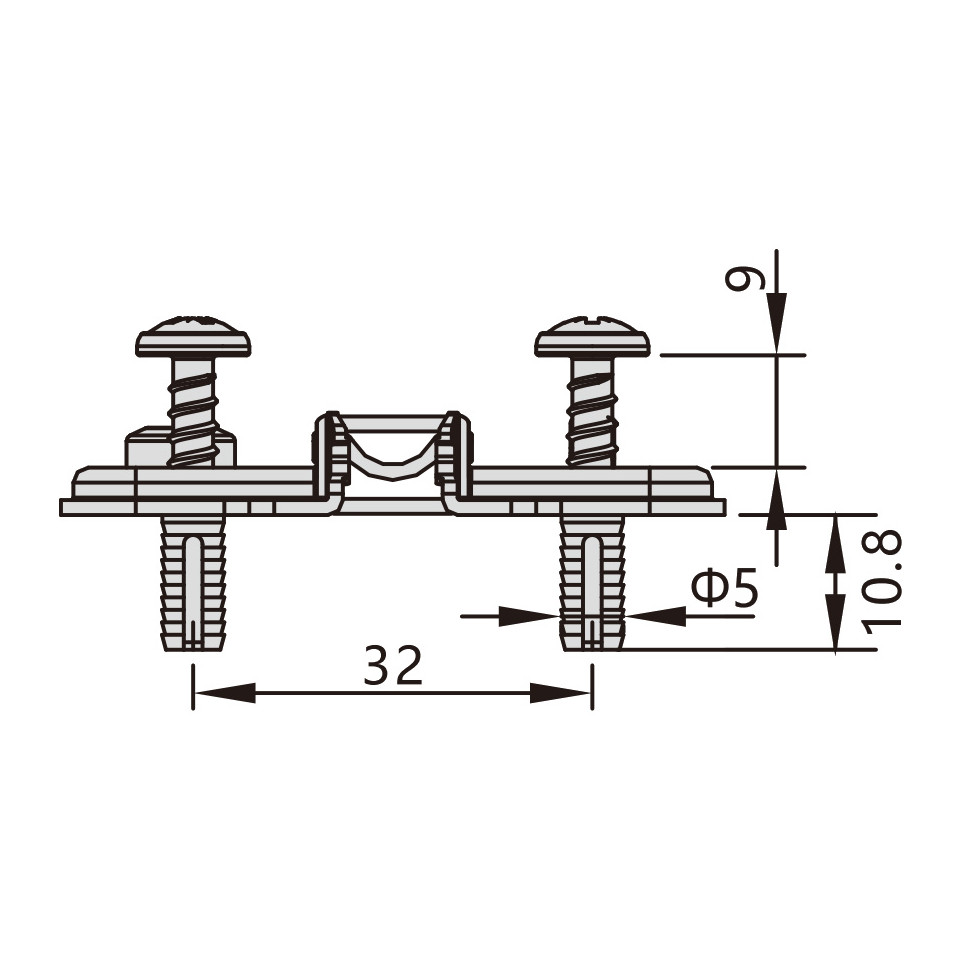

- Features: Direct vertical adjustment, 2mm mounting height, suited for Ø5 x 12mm drilled holes
Usage
Secure the mounting plate to your cabinet using the provided special screws and expansion sleeves in pre-drilled Ø5 x 12mm holes. Attach compatible Pivot-Star hinges to the plate, allowing for straightforward height adjustments and optimal door alignment during installation and after assembly.
FAQ
-
Which hinges are compatible with this mounting plate?
It is specifically designed for use with Pivot-Star hinge systems and accessories. -
What is the required drilling size for installation?
The expansion sleeves require holes with a diameter of 5mm and a depth of 12mm. -
Can the height be adjusted after installation?
Yes, the plate offers direct height adjustment to fine-tune door alignment. -
Is professional installation needed?
No, installation can be performed using basic tools, but accurate drilling and alignment are important. -
Does the nickel plating offer corrosion resistance?
Yes, the nickel-plated finish helps protect the plate from corrosion and wear.
