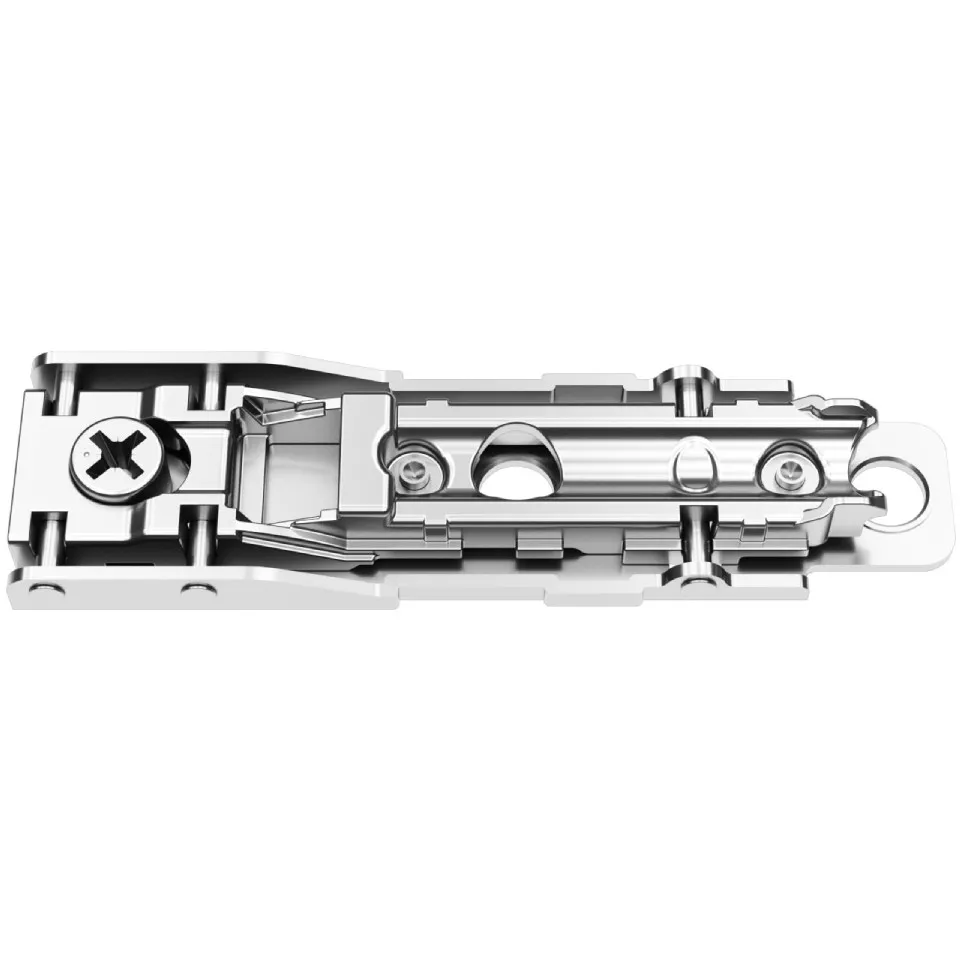

Pivot-Star Nickel-Plated Knock-In Linear Mounting Plate with Direct Height Adjustment for Ø10 x 12mm Drilling

Product

The Pivot-Star linear nickel-plated press-in mounting plate is designed for quick installation in cabinetry using a Ø10 x 12 mm bore, providing direct height adjustment and a precise 0 mm spacing for streamlined stud hinge setups.

Specifications

• Nickel-plated steel construction for durability and corrosion resistance
• Direct, tool-assisted height adjustment range of +2 mm / -2 mm

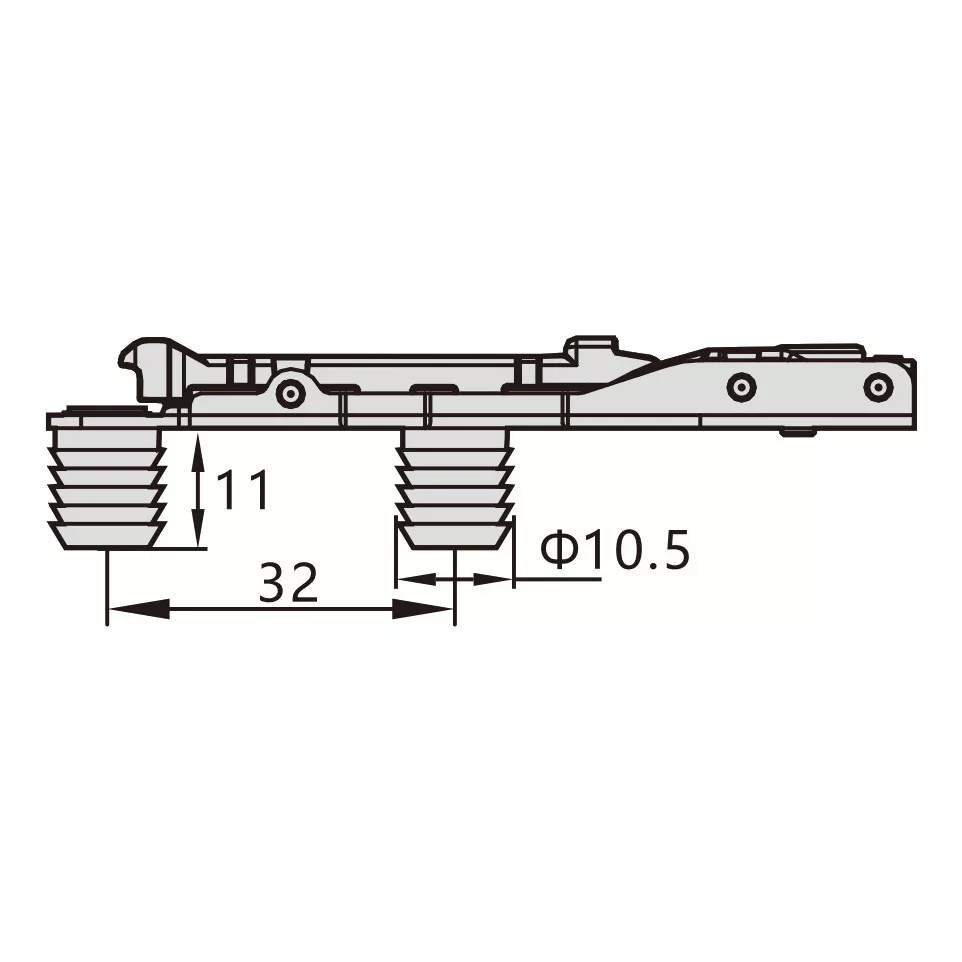

• Press-in design for Ø10 x 12 mm bore, suitable for linear installations
• 0 mm mounting height; optimized for modern overlay, half overlay, and inset hinge systems
• Designed to meet stringent European hardware standards

Usage

This mounting plate is inserted directly into a pre-drilled Ø10 x 12 mm hole in wooden panels. Its integrated adjustment mechanism allows users to fine-tune door height after installation for precise alignment and smooth hinge operation, ideal for cabinetry assembly or retrofitting.

FAQ

1. What bore size is required for installation?
   The plate is designed for direct press-in mounting with a Ø10 x 12 mm hole.

2. How is the height adjusted?
   Height can be adjusted directly on the plate, typically within a +2 mm to -2 mm range for precise alignment.

3. Is this product suitable for different cabinet hinge types?
   Yes, it supports overlay, half overlay, and inset hinge configurations commonly found in cabinetry.

4. What material is used for the mounting plate?
   The mounting plate is manufactured from steel with a nickel-plated finish for enhanced durability.

5. Can the plate be re-adjusted after installation?
   Yes, height adjustments can be made after mounting, allowing for correction and fine-tuning as needed.
