Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

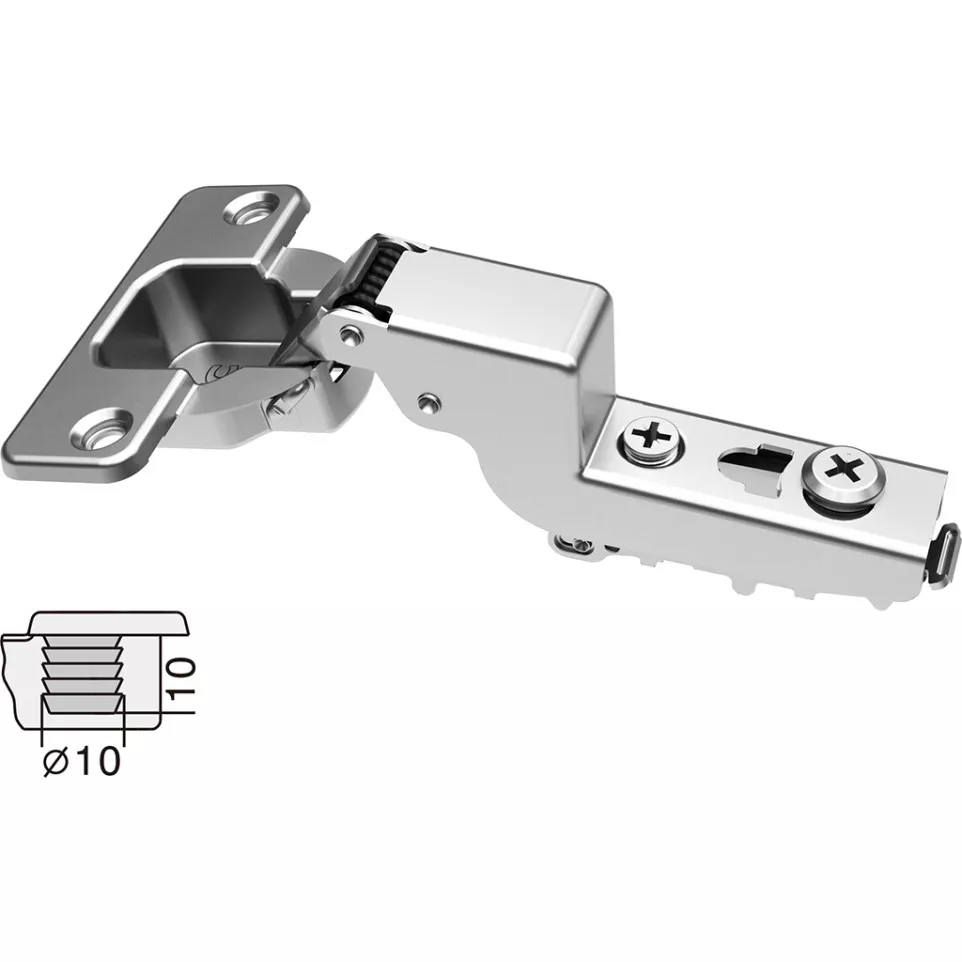

Stylish 110° nickel-plated inset hinge with integrated soft-closing and automatic closing, designed for inset doors in cabinetry. Ideal for doors with a thickness of 16–26 mm, offering quiet and precise operation for modern furniture installations.
Specifications
- Nickel-plated finish for durability and corrosion resistance
- Integrated soft-close mechanism reduces noise and wear
- Automatic closing function ensures secure door closure
- Hinge cup diameter: 35 mm
- Cup depth: 11.5 mm
- Mounting: Knock-in (press-fit)
- Inset type for rentrante (recessed) doors
- Drilling pattern: 52 x 5.5 mm
- Door drilling distance (K): possible from 3–6 mm
- Suitable door thickness: 16–26 mm
Usage
Install the hinge by pressing the cup into a 35 mm diameter hole with a depth of 11.5 mm on the door. Align with the 52 x 5.5 mm drilling scheme and adjust the K-value between 3–6 mm depending on your door requirements. The soft-close and automatic features ensure smooth and controlled door closure, enhancing both convenience and durability for inset cabinet doors.
FAQ
-
What is the opening angle of this hinge?
The hinge offers a 110° opening angle for wide and accessible door movement. -
Does this hinge include soft-close functionality?
Yes, it features an integrated soft-close mechanism to prevent slamming and ensure smooth closure. -
Is this hinge suitable for inset (rentrante) doors?
Yes, it is specifically designed for inset doors, fitting flush inside the cabinet frame. -
What are the required cup dimensions for installation?
The hinge cup requires a 35 mm diameter hole with an 11.5 mm depth. -
What door thicknesses are compatible with this hinge?
It supports door thicknesses ranging from 16 to 26 mm.
