Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

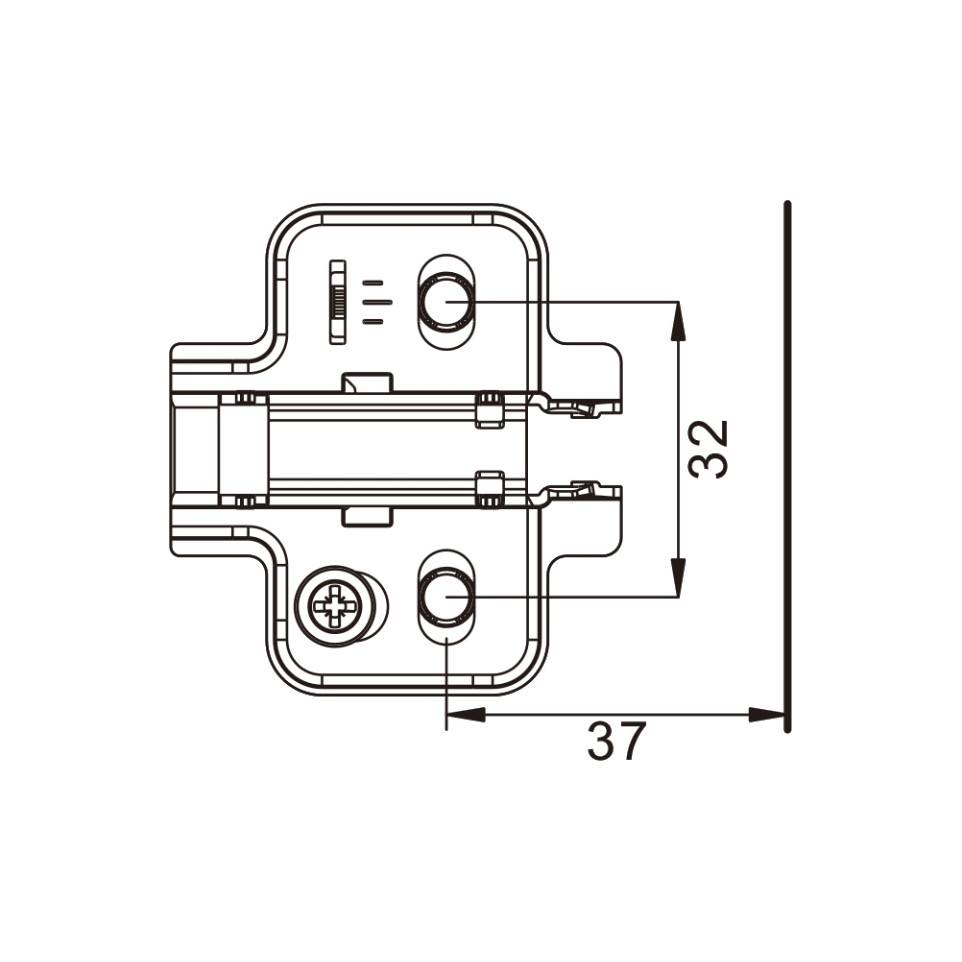

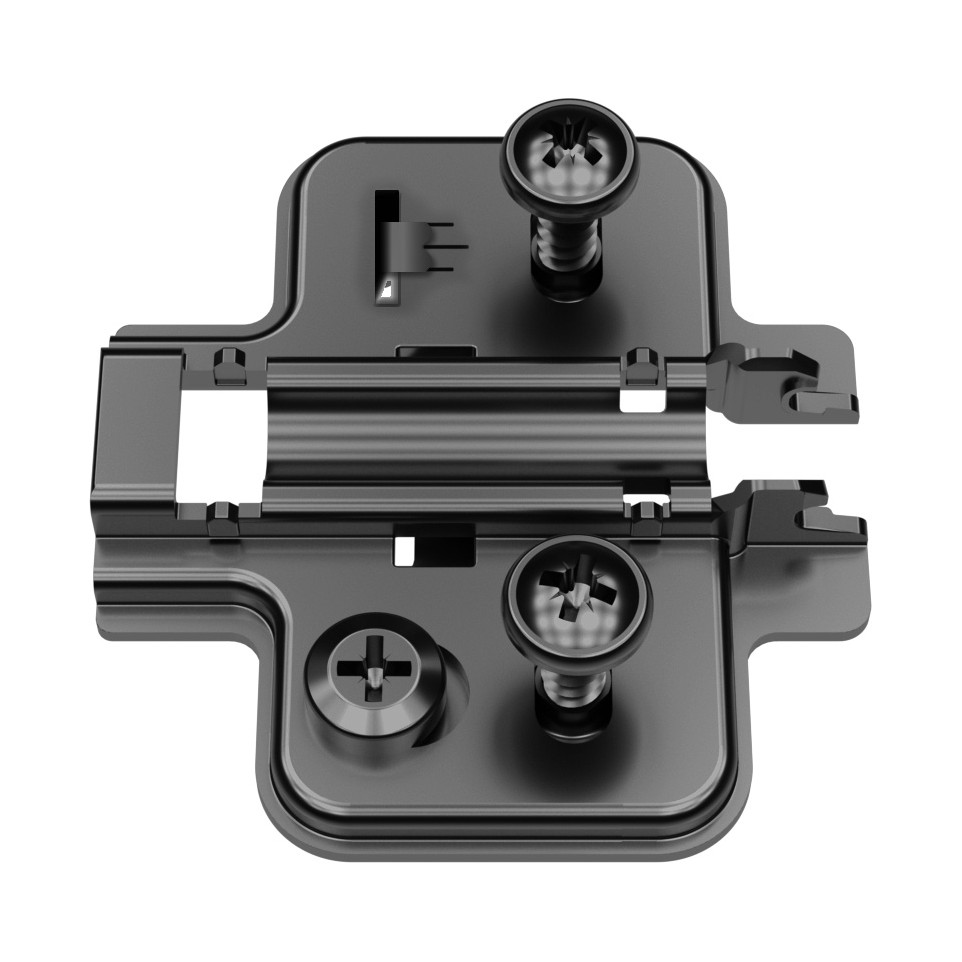

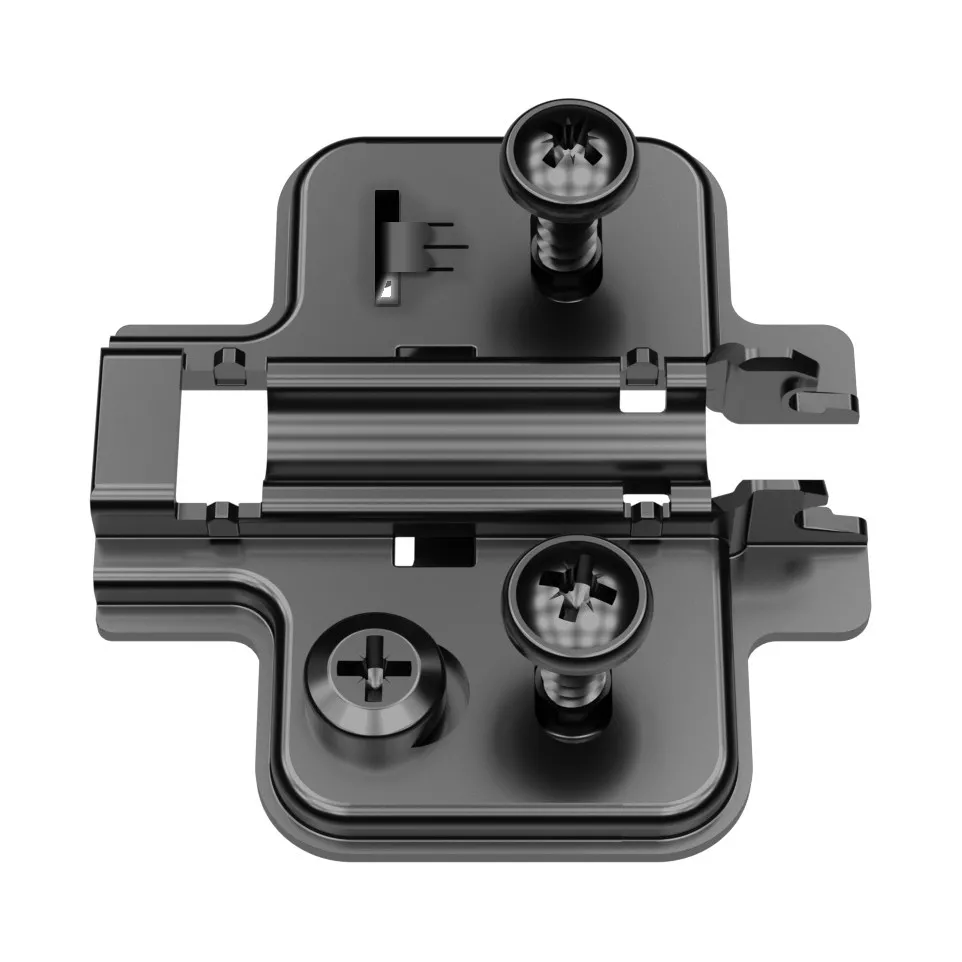

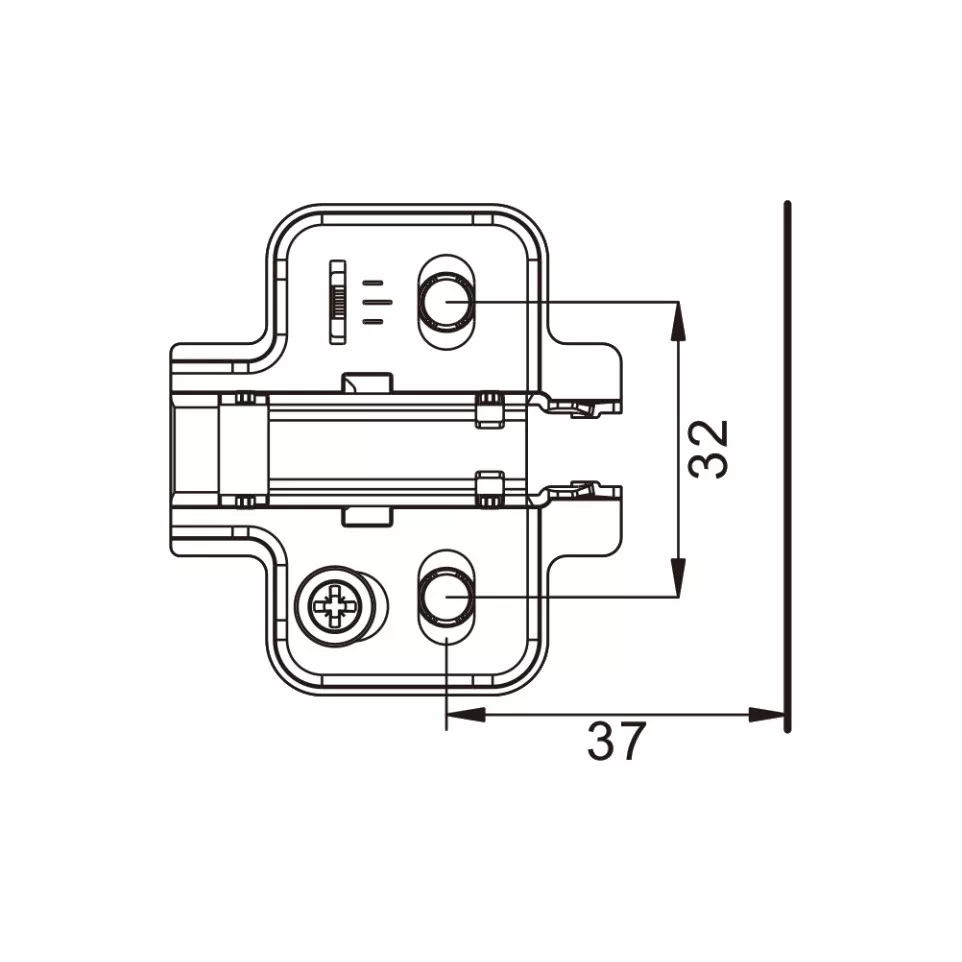

Nickel-plated Pivot-Star cruciform mounting plate with special screws and expansion sleeves, designed for Ø5 x 12mm drilling. Provides direct height adjustment and a 0mm mounting distance, suitable for precise hinge installation in cabinetry and furniture assembly.
Specifications
- Cruciform design made from nickel-plated steel for corrosion resistance and fit with standard stud hinge applications

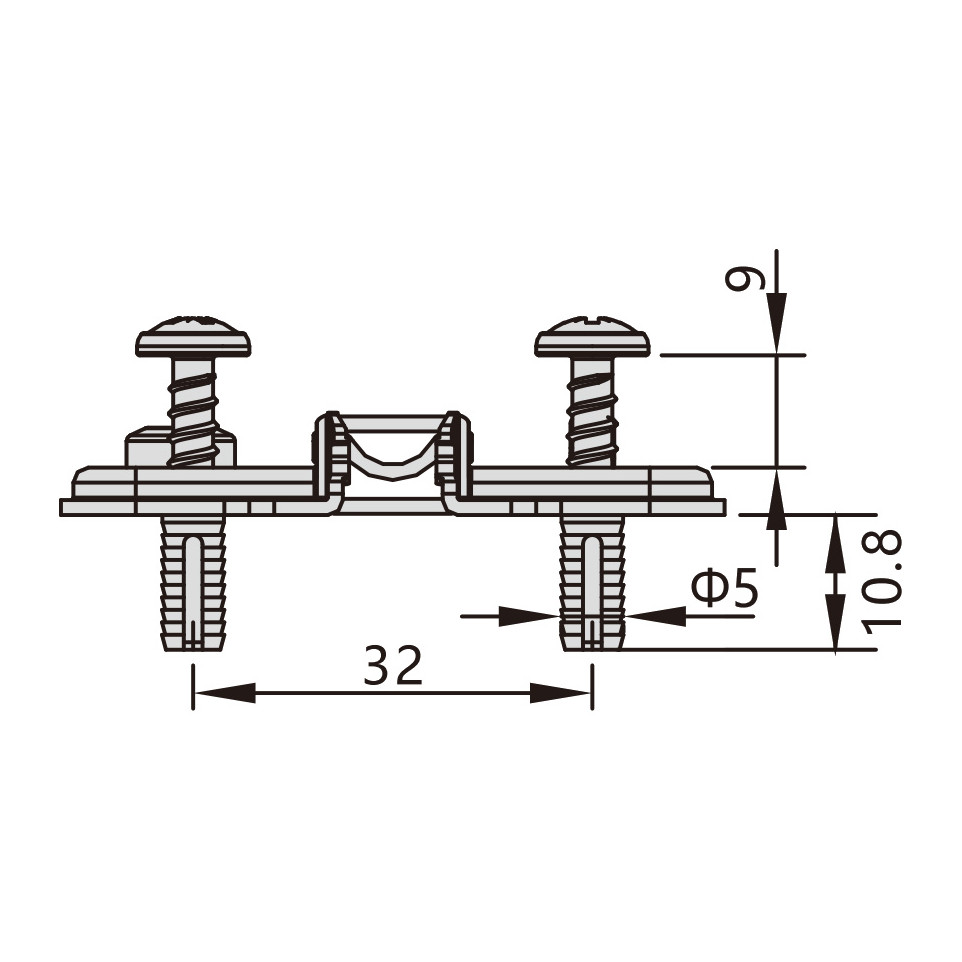

- Features integrated special screws and expansion sleeves to ensure secure fit in pre-drilled holes (Ø5 x 12mm)
- Direct height adjustment mechanism enables fine-tuning of door alignment after installation
- Mounting distance: 0mm for minimal offset installations
- Designed for use with compatible Pivot-Star and similar stud hinge systems
Usage
Position the plate over pre-drilled Ø5 x 12mm holes, insert the provided expansion sleeves and special screws, then secure the plate firmly. The direct height adjustment feature allows for convenient door alignment, supporting efficient cabinet and furniture construction.
FAQ
-
What type of screws and sleeves are included? – Special screws and expansion sleeves are included to fit Ø5 x 12mm pre-drilled holes for secure mounting.
-
Is the plate height adjustable? – Yes, it offers direct height adjustment to align doors after installation.
-
What is the mounting distance of the plate? – The mounting plate provides a 0mm distance for flush installation.
-
What material is the plate made from? – The mounting plate is constructed from nickel-plated steel, offering durability and corrosion resistance.
-
What applications is this plate best suited for? – It is designed for stud hinge and accessory mounting in cabinetry and furniture projects requiring precise alignment and secure fixing.
