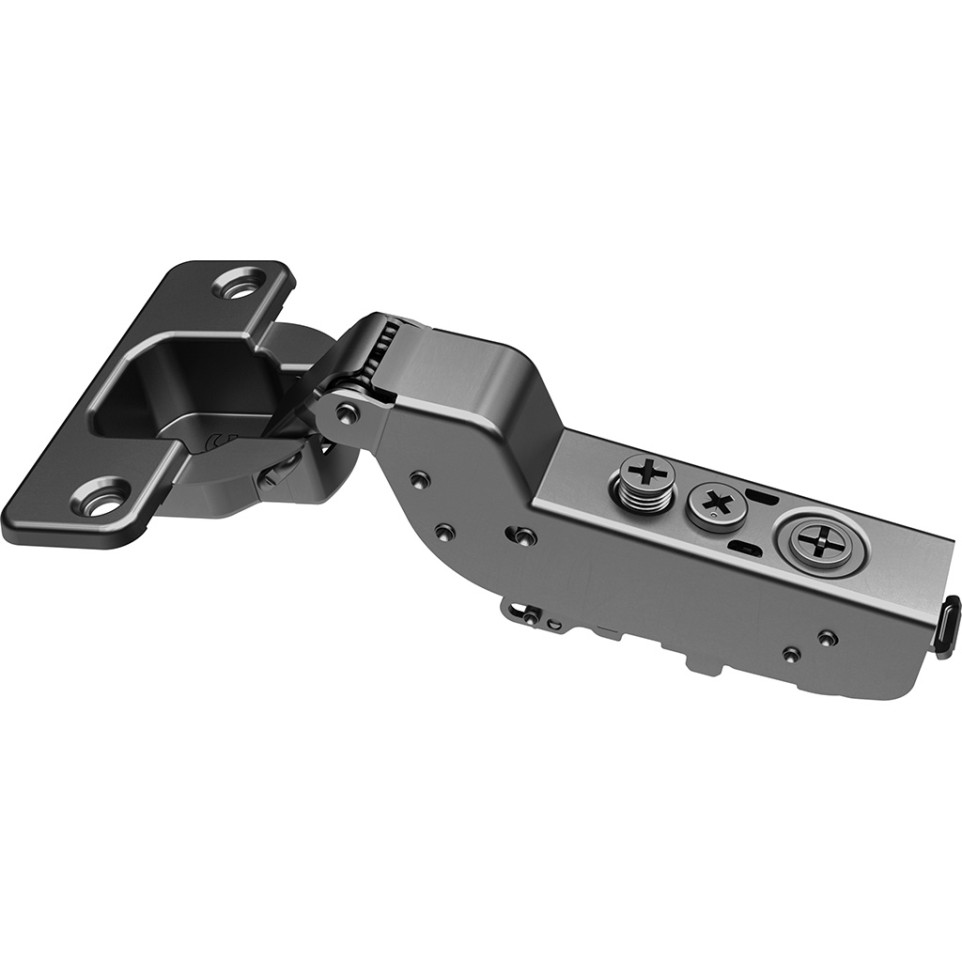

The Pivot-Star 110° Black Titanium Screw-On Hinge with soft-close and automatic closing offers reliable performance for inset doors in kitchens, wardrobes, and cabinetry. Designed for silent operation and precise alignment, it is ideal for modern or high-use applications.

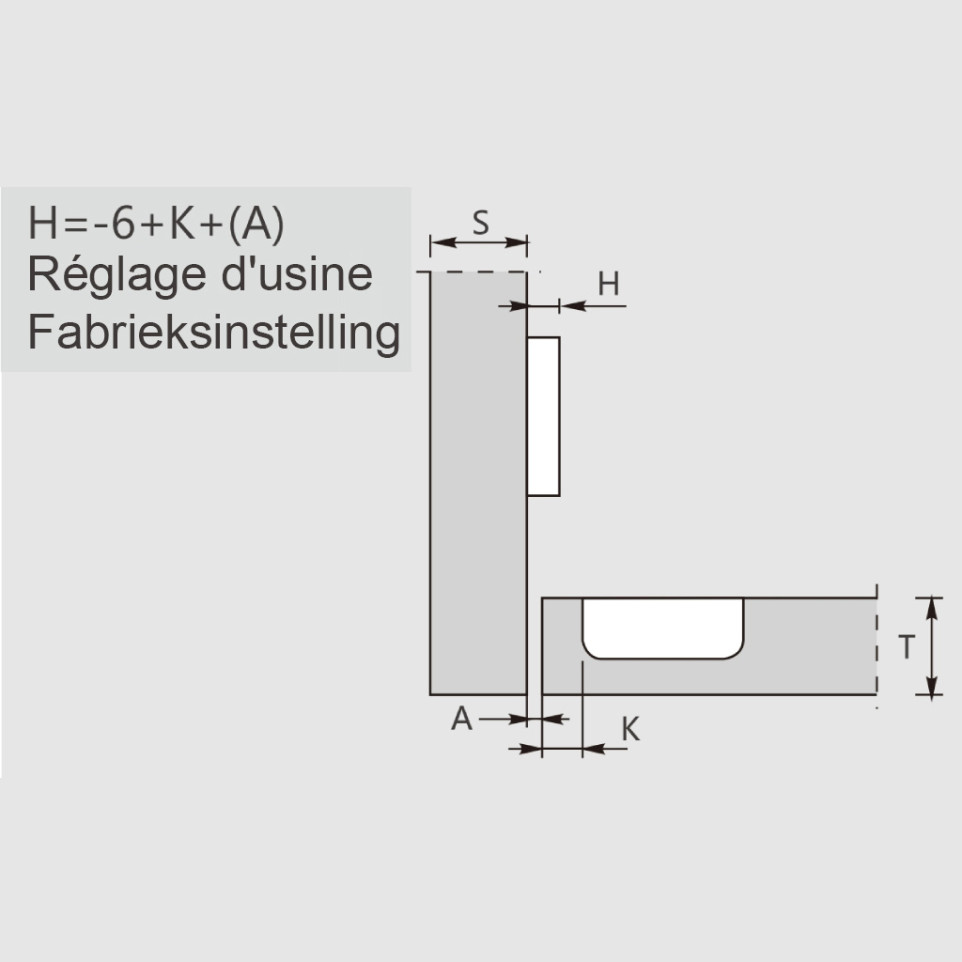

Install by screwing the hinge into drilled holes on the door and cabinet frame. Adjust alignment and soft-close speed as needed. The integrated damper assures quiet closure, while the automatic closing function keeps doors shut securely and gently.
What is the maximum opening angle of this hinge?
The hinge opens to 110°, providing wide access for inset cabinet doors.
Which door thicknesses are compatible with this hinge?
It suits doors from 16 mm to 26 mm thick.
How does the soft-close function work?
A built-in damper gradually cushions the closing motion, preventing slamming and reducing noise.
Is the hinge adjustable?
Yes, it features multi-directional adjustment for side, depth, and height to ensure precise door alignment.
What installation method is required?

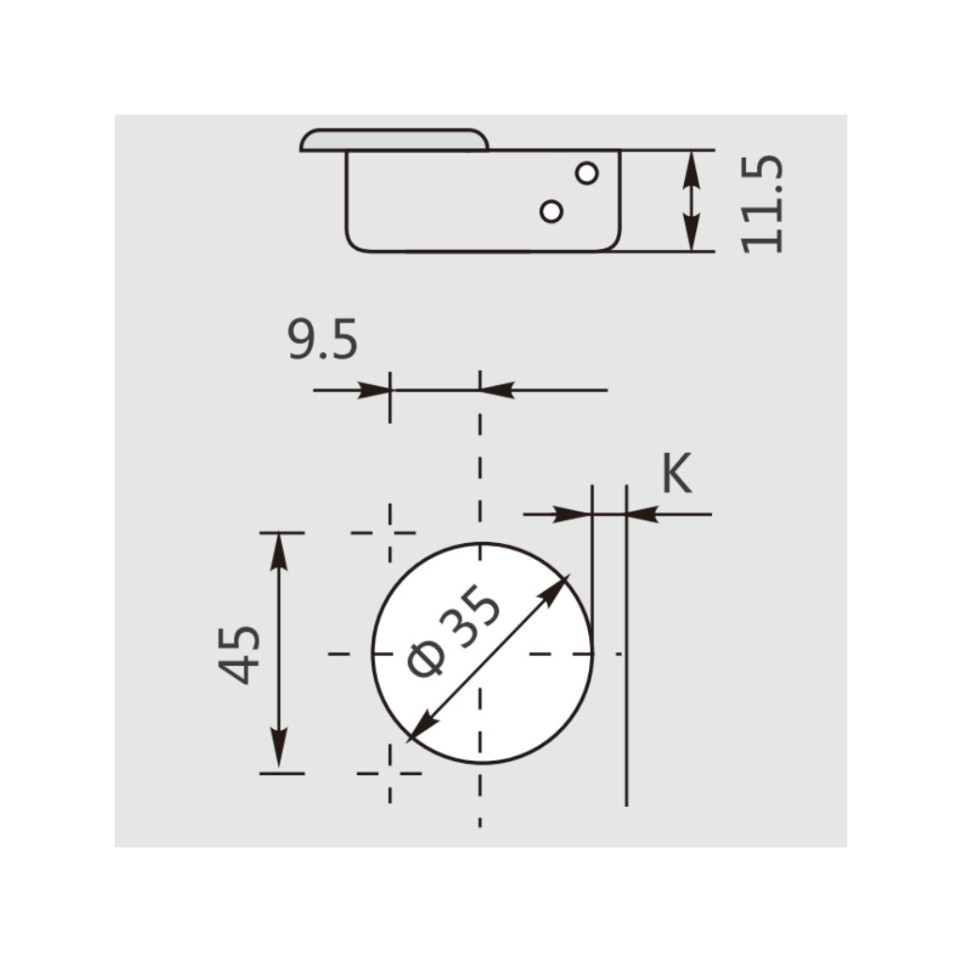

This hinge is designed for screw-on mounting into a pre-drilled 45 x 9.5 mm pattern.
