Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

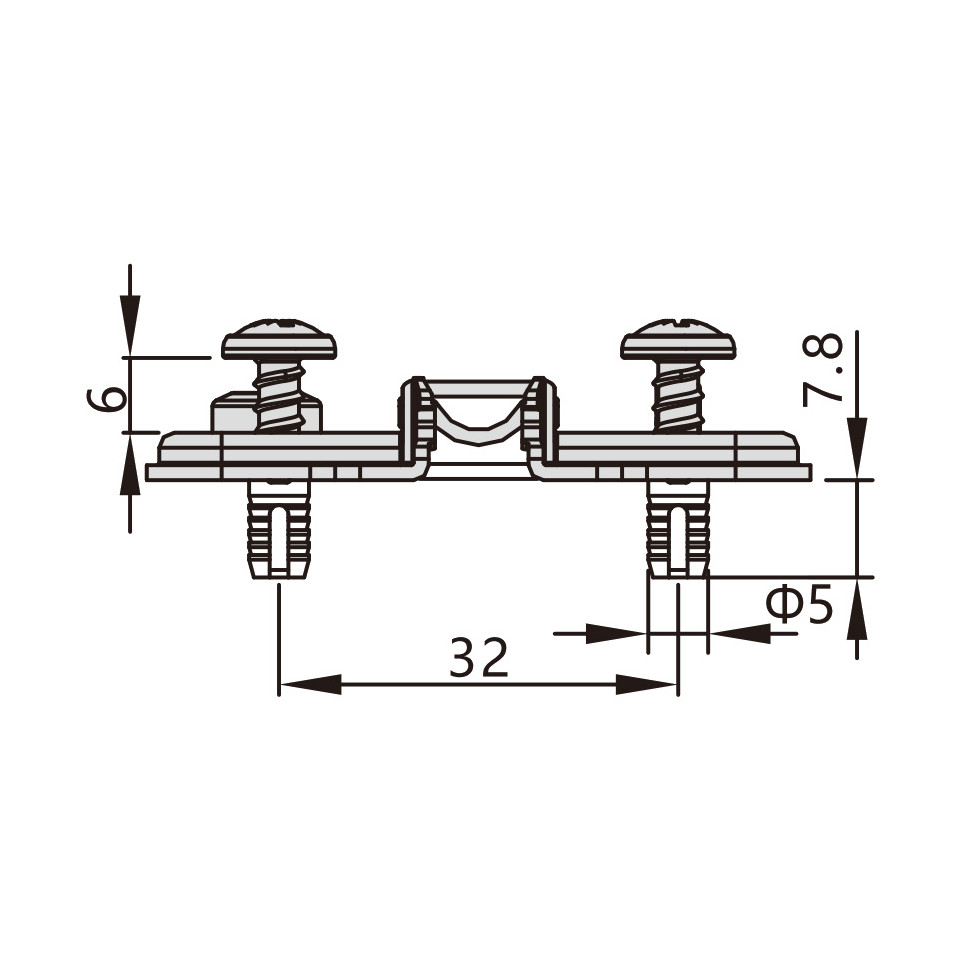

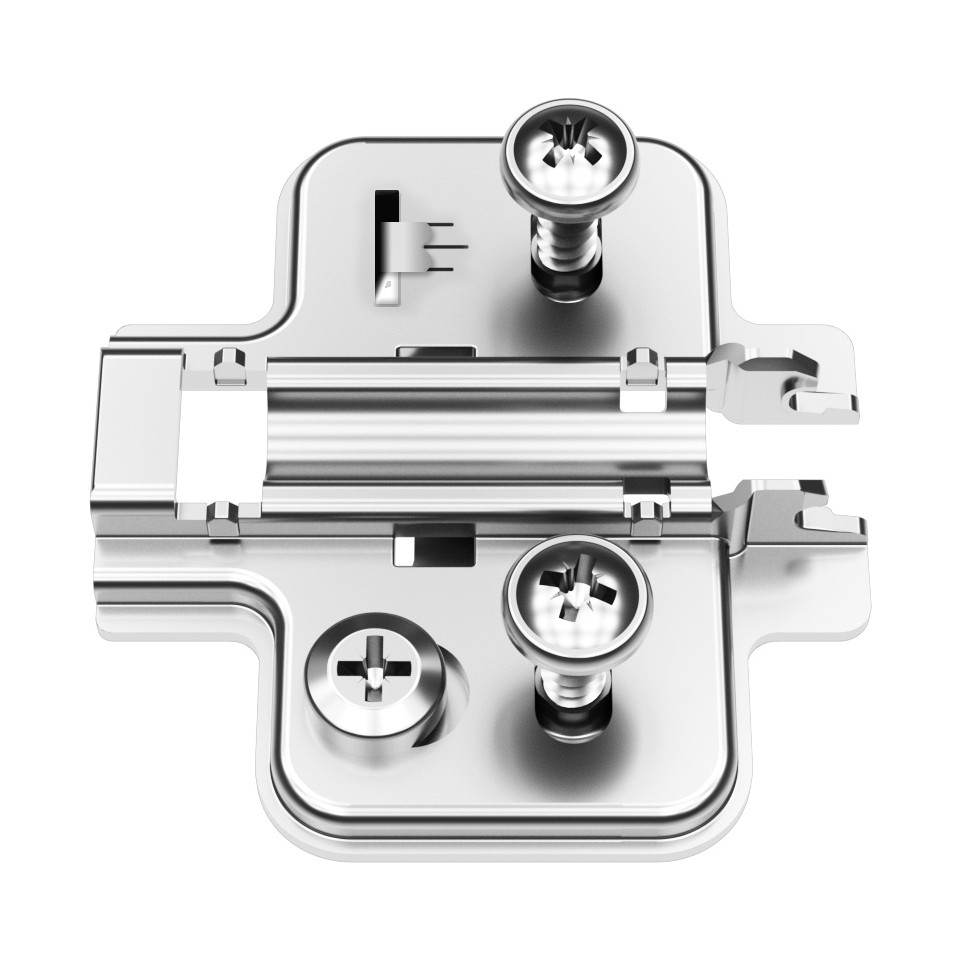

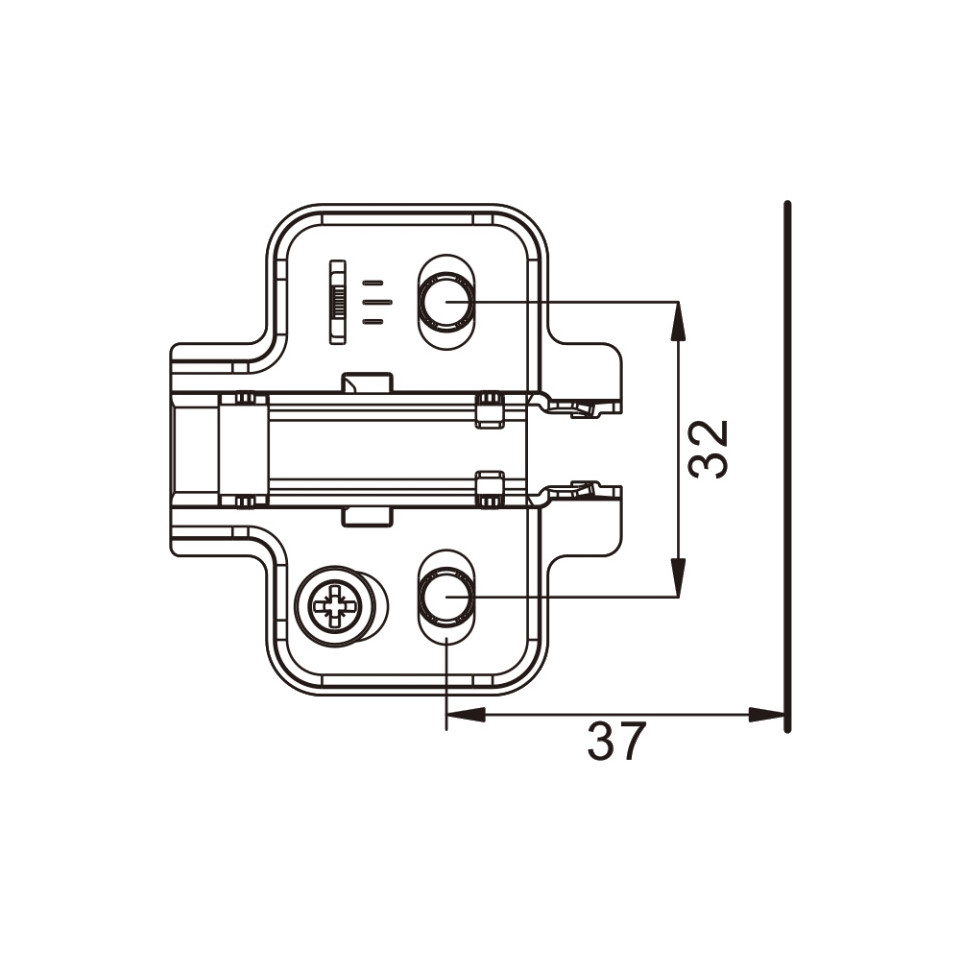

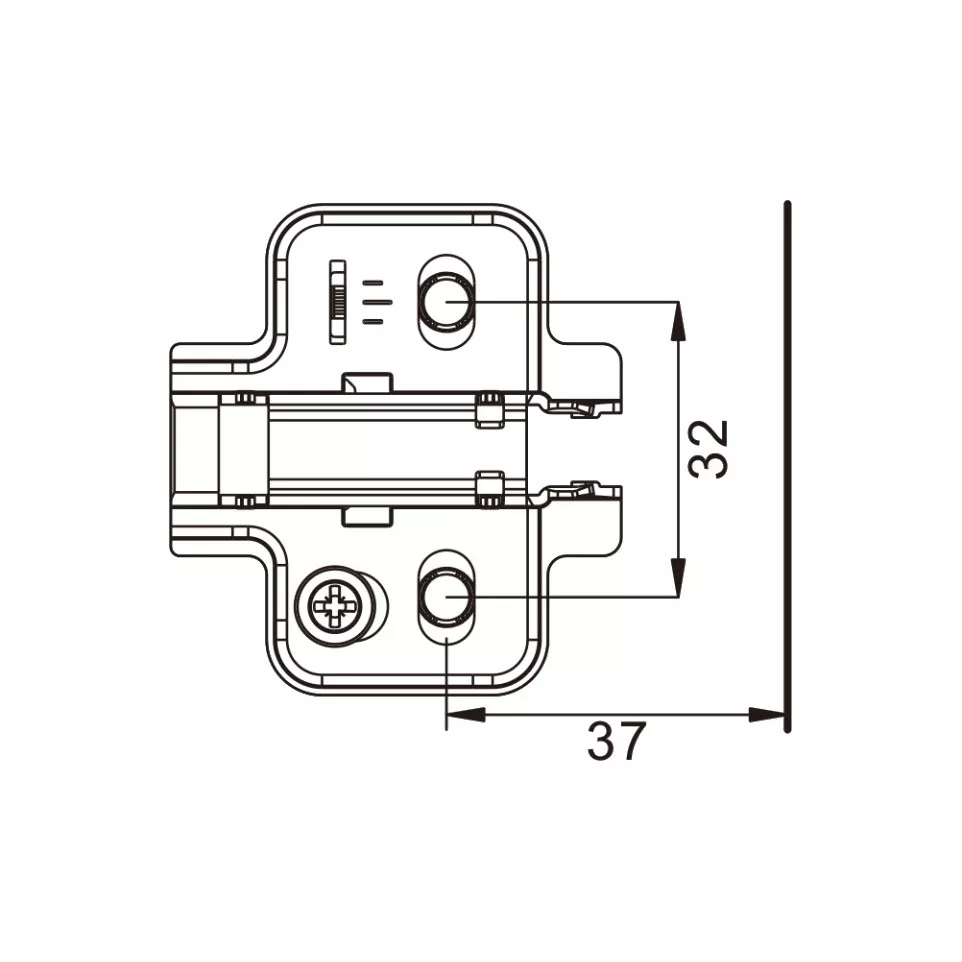

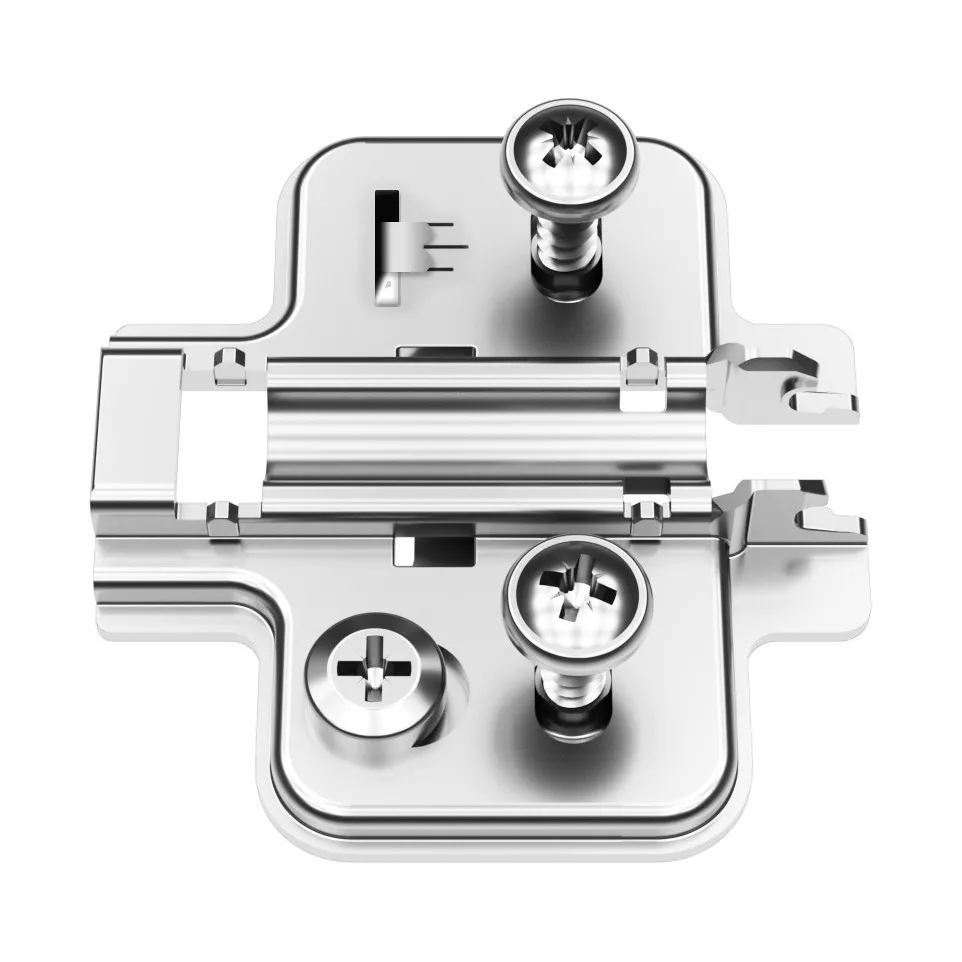

Cruciform mounting plate Pivot-Star, nickel-plated, supplied with special screws and expansion sleeves for Ø5 x 9mm drilling, featuring direct height adjustment and a 2mm mounting distance. Designed for stud hinges and cabinetry applications.
Specifications
- Nickel-plated finish for enhanced corrosion resistance and durability
- Compatible with Pivot-Star hinge systems, includes special mounting screws and expansion sleeves
- Offers direct height adjustment for precise alignment
- Mounting distance: 2mm
- Suitable for Ø5 x 9mm drill holes
- Engineered for reliable cabinet and furniture installation
Usage
Mount the plate on cabinet panels using the supplied expansion sleeves and special screws for Ø5 x 9mm holes. Adjust the plate height directly for optimal hinge alignment, ensuring stable and precise door installation in furniture or cabinetry setups.
FAQ
-
Which hinges is this mounting plate compatible with?
It is designed for use with Pivot-Star stud hinges and compatible systems. -
What drilling dimensions are required for installation?
The mounting plate requires Ø5 x 9mm drilled holes for correct installation. -
Can the height be adjusted after installation?
Yes, direct height adjustment is possible after mounting for precise positioning. -
Is the mounting plate corrosion-resistant?
Yes, the nickel-plated finish provides strong resistance to corrosion. -
Does the product include all necessary mounting hardware?
It comes with special screws and expansion sleeves required for installation.
