Pivot-Star 110 Degree Nickel-Plated Concealed Hinge with Soft Close and Self Closing for Semi-Overlay Door (Ø10x10mm)

Pivot-Star 110 Degree Nickel-Plated Concealed Hinge with Soft Close and Self Closing for Semi-Overlay Door (Ø10x10mm)
Pivot-Star 110 Degree Nickel-Plated Concealed Hinge with Soft Close and Self Closing for Semi-Overlay Door (Ø10x10mm)
Pivot-Star 110 Degree Nickel-Plated Concealed Hinge with Soft Close and Self Closing for Semi-Overlay Door (Ø10x10mm)
Pivot-Star 110 Degree Nickel-Plated Concealed Hinge with Soft Close and Self Closing for Semi-Overlay Door (Ø10x10mm)
Pivot-Star 110 Degree Nickel-Plated...
Pivot-Star 110 Degree Nickel-Plated...
Pivot-Star 110 Degree Nickel-Plated...
Pivot-Star 110 Degree Nickel-Plated...

Estimated delivery date :  Monday 27 July
€2.86 HT
In stock

Ref : FGT-236006

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

Pivot-Star 110° nickel-plated press-in hinge with built-in soft close and automatic closing, designed for semi-overlay doors. Ideal for cabinet installations requiring controlled motion, it supports door thicknesses from 16–26 mm and offers reliable, silent operation.

Specifications

  • Nickel-plated finish for corrosion resistance
  • Integrated damper for soft, silent closing
  • Automatic closure function

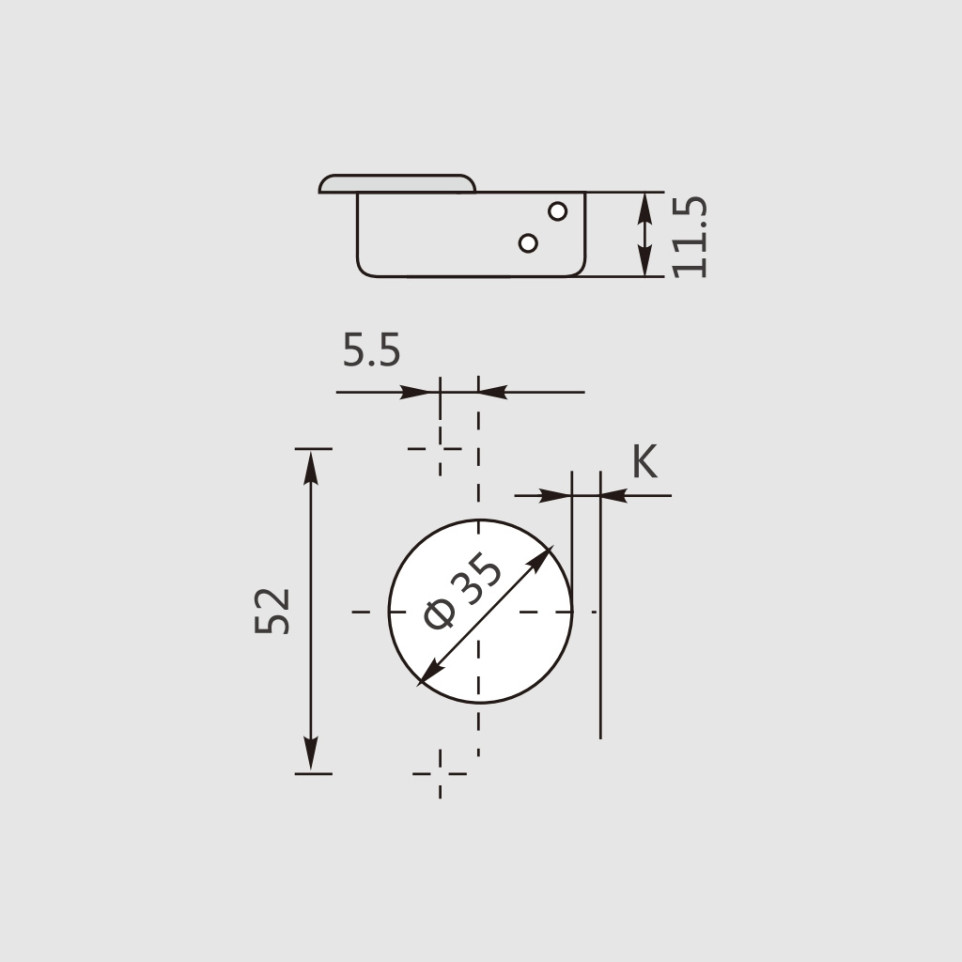

  • Cup diameter: 35 mm
  • Cup depth: 11.5 mm

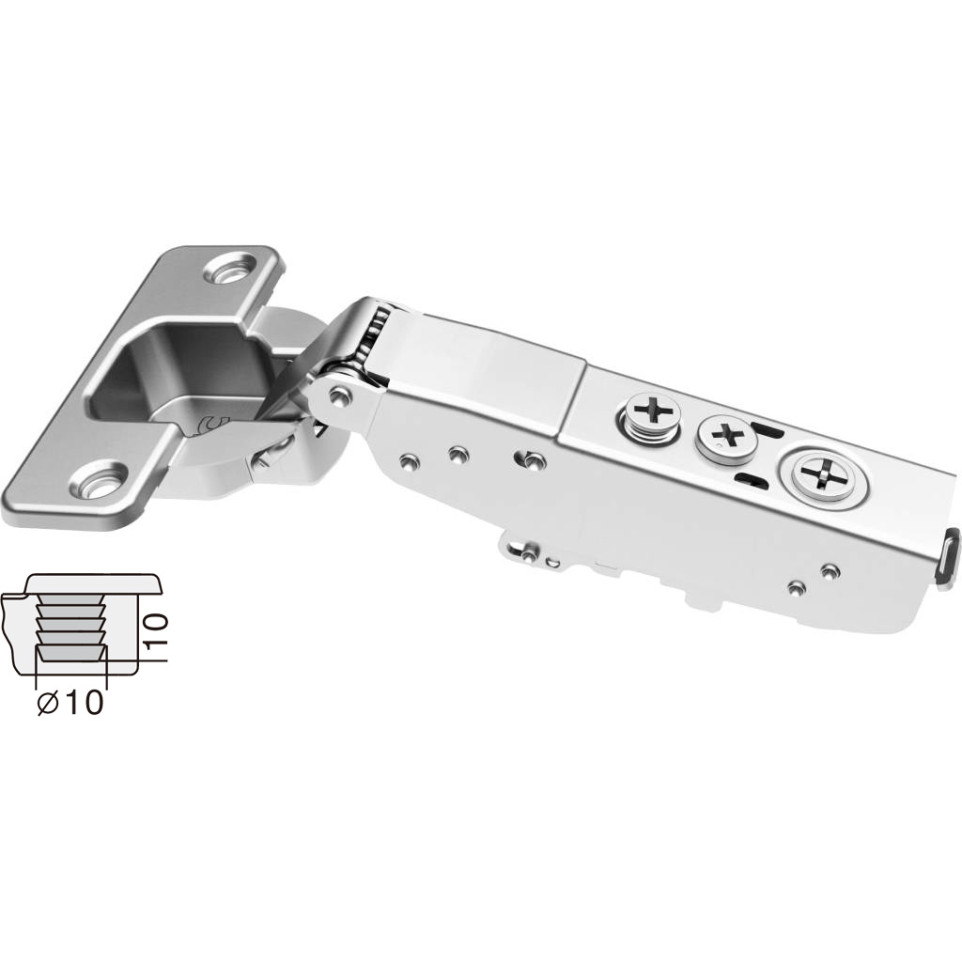

  • Press-in mounting method (Ø10x10mm dowels)
  • Compatible with door thicknesses from 16–26 mm
  • Drilling pattern: 52 x 5.5 mm

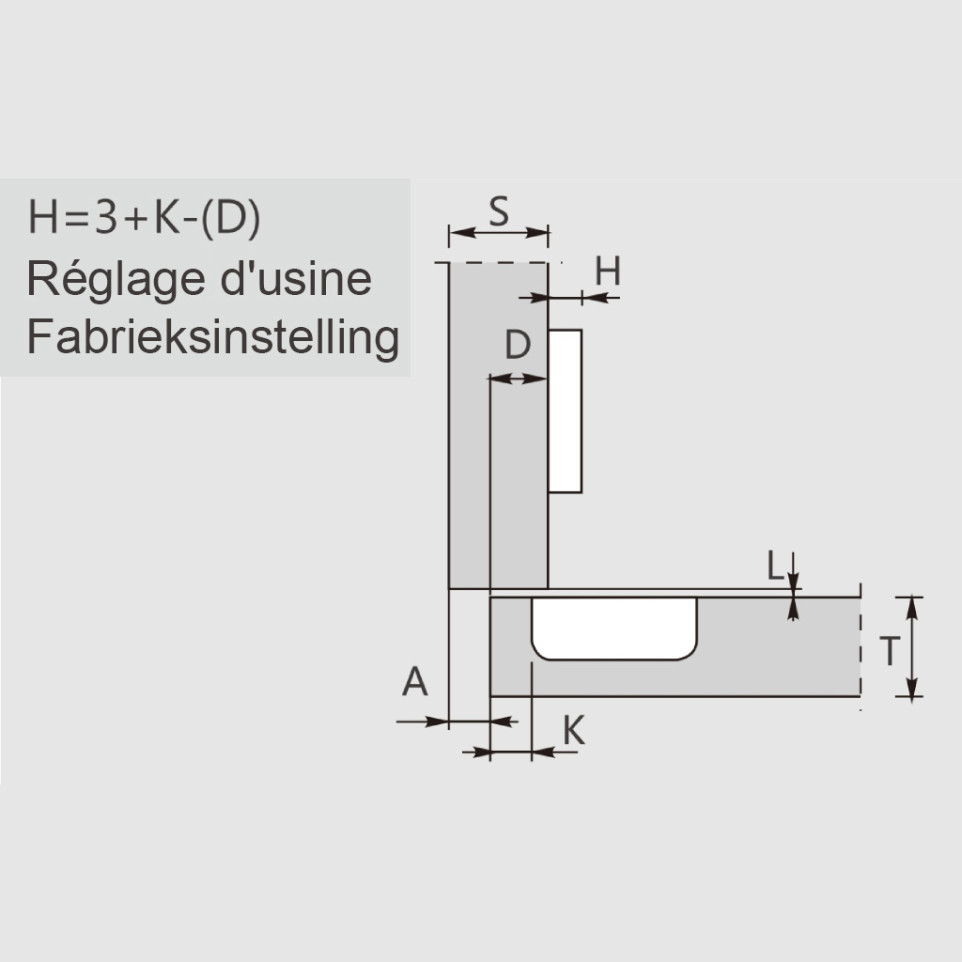

  • Drilling distances (K): 3–6 mm
  • Semi-overlay hinge type for cabinet doors

Usage

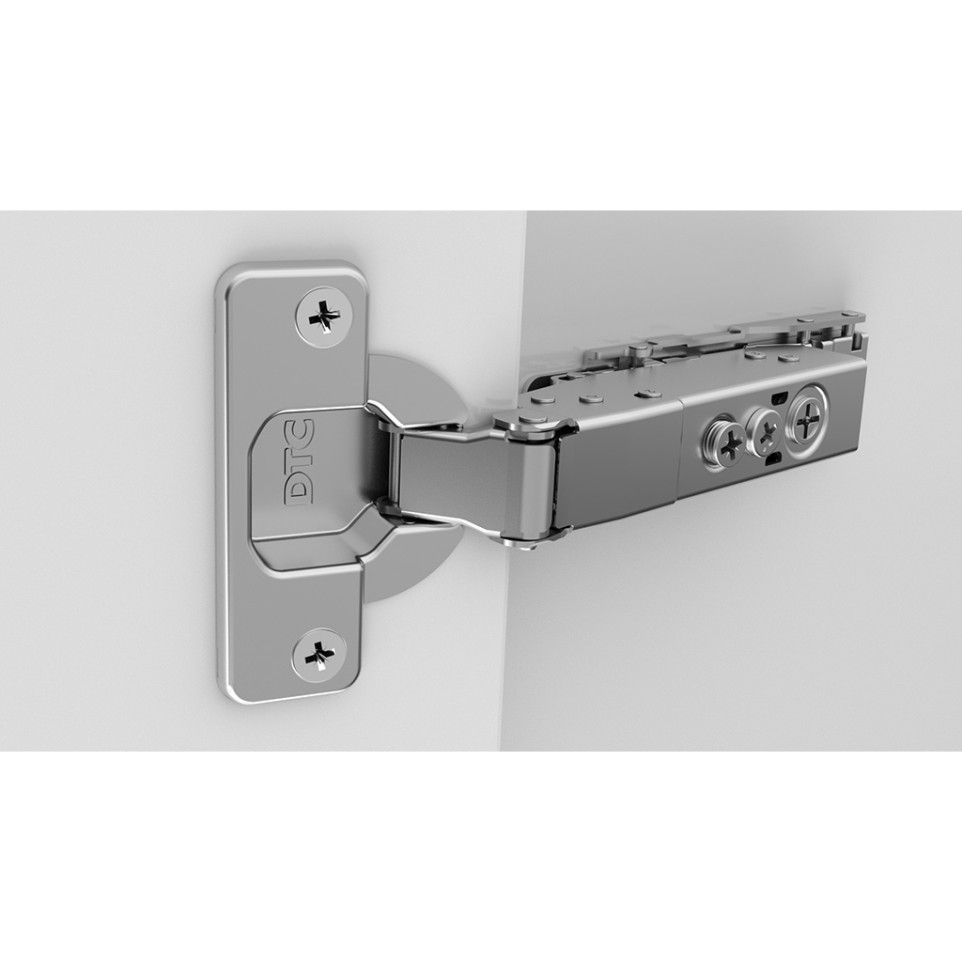

Install the Pivot-Star hinge by pressing the dowels into the appropriately drilled holes on the door and frame. Its soft-close feature ensures silent, controlled door motion, while the automatic closing aids convenience in high-use cabinetry. Suitable for kitchens, bathrooms, or any furniture with semi-overlay doors.

FAQ

  1. What is the opening angle of this hinge?

    • The hinge opens to 110°, allowing wide access to cabinet interiors.

  2. Does this hinge require screws for installation?

    • This model utilizes a press-in mounting with Ø10x10 mm dowels for tool-free installation, though screw-in options may be available.

  3. Can the soft-close damping be adjusted?

    • The integrated soft-close mechanism provides consistent damping; some models may offer fine adjustment, but this version has fixed damping.

  4. What thickness of door is compatible?

    • The hinge supports door thicknesses ranging from 16 to 26 mm.

  5. Is it suitable for full overlay or only semi-overlay doors?

    • This hinge is specifically designed for semi-overlay door applications.
