Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product
Stylish 110° nickel-plated stud hinge with integrated soft-close and automatic closing, designed for semi-overlay cabinet doors. Ideal for doors with thicknesses from 16 to 26 mm and press-in installation.
Specifications
- Nickel-plated finish for corrosion resistance and modern appearance
- Integrated soft-close mechanism for quiet, controlled closing
- Automatic closing function keeps doors securely shut

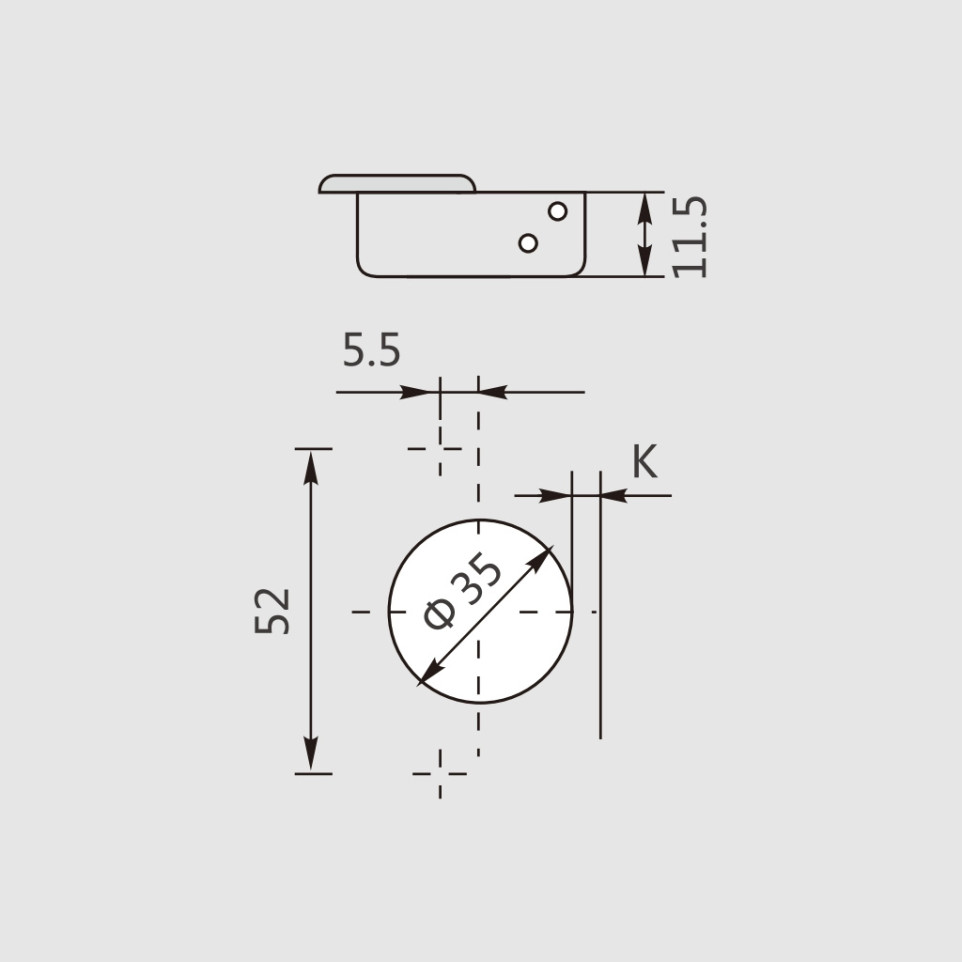

- Hinge cup diameter: 35 mm; depth: 11.5 mm
- Semi-overlay application; mounting via press-in method
- Bore pattern: 52 x 5.5 mm
- Suitable for door thickness: 16–26 mm

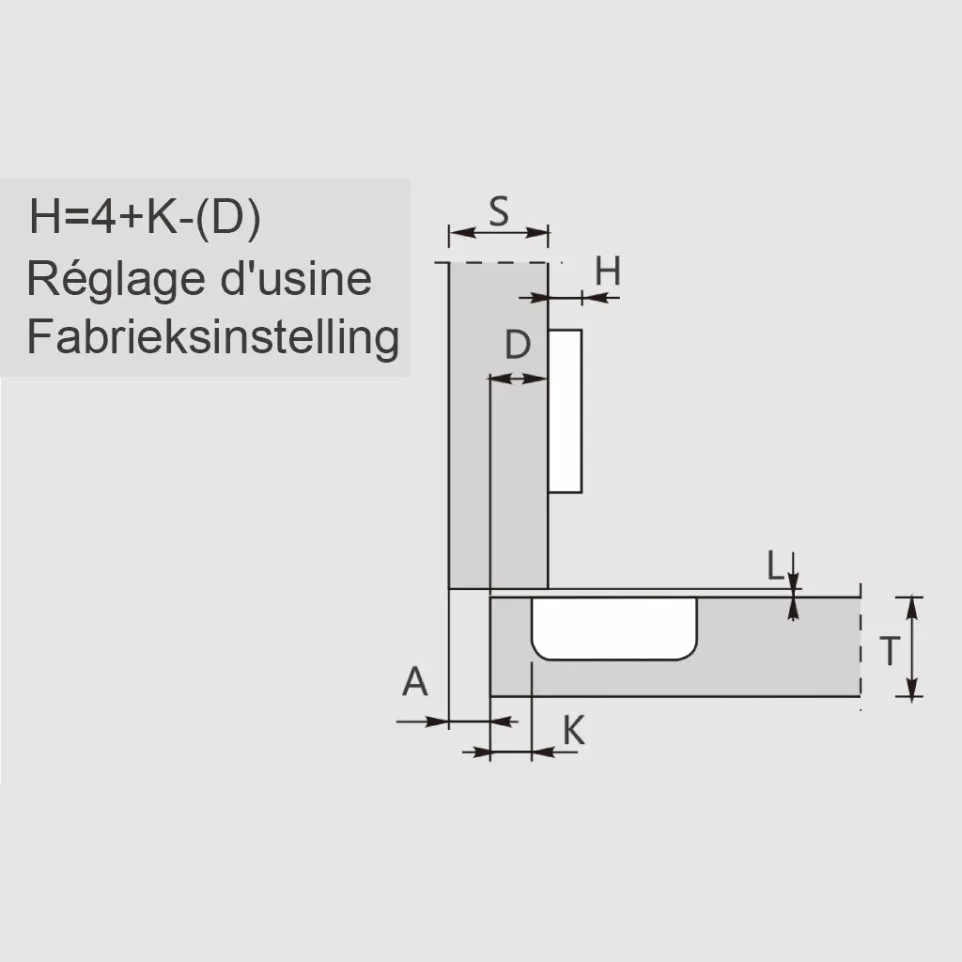

- Adjustable drilling distances on door: K = 3–6 mm
Usage
This hinge is pressed into a 35 mm diameter, 11.5 mm deep bore in a cabinet door (thickness 16–26 mm). The semi-overlay design suits installations where the door covers part of the cabinet frame edge. Integrated soft-close ensures smooth, silent self-closure and reliable latching.
FAQ
- What is the recommended door thickness for this hinge?
- Use with doors between 16 and 26 mm thick.
- Does this hinge require screws for installation?
- It is designed for press-in mounting; screws may be used for added security if required.
- Is the closing mechanism adjustable?
- The hinge provides automatic closing, but soft-close speed is factory set.
- What is the required bore for fitting the hinge cup?
- Drill a 35 mm diameter hole, 11.5 mm deep.
- Can this hinge be used on full-overlay doors?
- It is optimized for semi-overlay applications; use specialized hinges for full-overlay designs.
